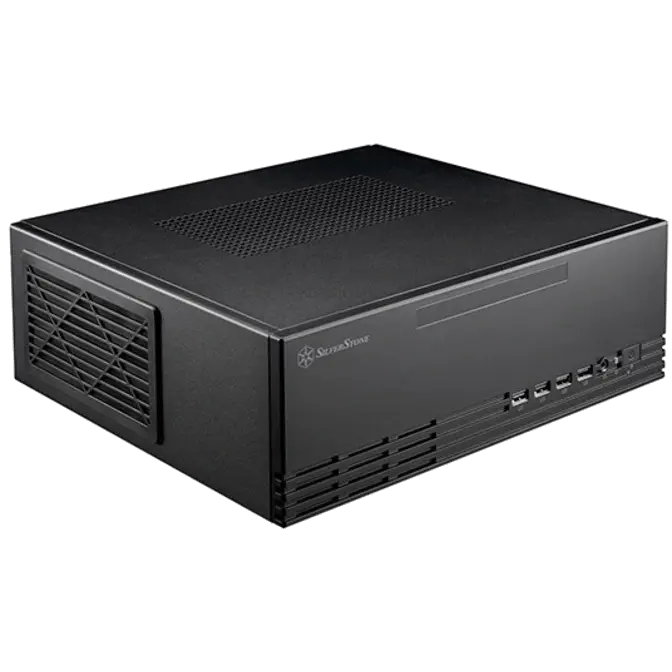

Silverstone ML11B Black MicroATX Compact Case
Web ID: 38015
Horizontal or vertical orientation, Micro-ATX enclosure at only 10.35L, Supports TFX form factor PSU, Supports 1 x 9.5mm slim optical drive. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-ML11B
Manufacturer Website
Model No.
SST-ML11B
Material
Plastic bezel, steel body
Motherboard
Drive bay
External
- 9.5mm slim optical bay
Internal
- 3.5" / 2.5" x 1
2.5" x 1
Cooling system
Front
- 80mm x 1*
Side
- 80mm x 1** / 60mm x 1***
Limitation of CPU cooler
90mm (w/o ODD bracket)
69mm (w/ ODD bracket, w/o 3.5" HDD)
43.4mm (w/ ODD bracket & 3.5" HDD)
Expansion slot
Low-profile x 4
Limitation of expansion card
Length: 272mm (w/o front fan installed)
Height: 96mm
Power supply
TFX (not included)
Front I/O port
USB 3.0 x 2, USB 2.0 x 2, combo audio x 1
Dimension
330mm (W) x 110mm (H) x 285mm (D), 10.35 liters
Net weight
2.48 kg
Remark
* If the connectors on the motherboard is facing forward, then the thickness supported for the fan is 27.2mm, minus the length of the SATA cable connector and minus the size of the motherboard. i.e. if the direction of the connectors on the motherboard is upward, then the front fan supports fans with thickness of up to 25mm.
** Supports motherboard size of 248mm minus the fan’s total thickness
*** Corresponds to motherboard’s connector design, which allows a total height of 23mm, while leaving the 4th PCI slot unoccupied.
