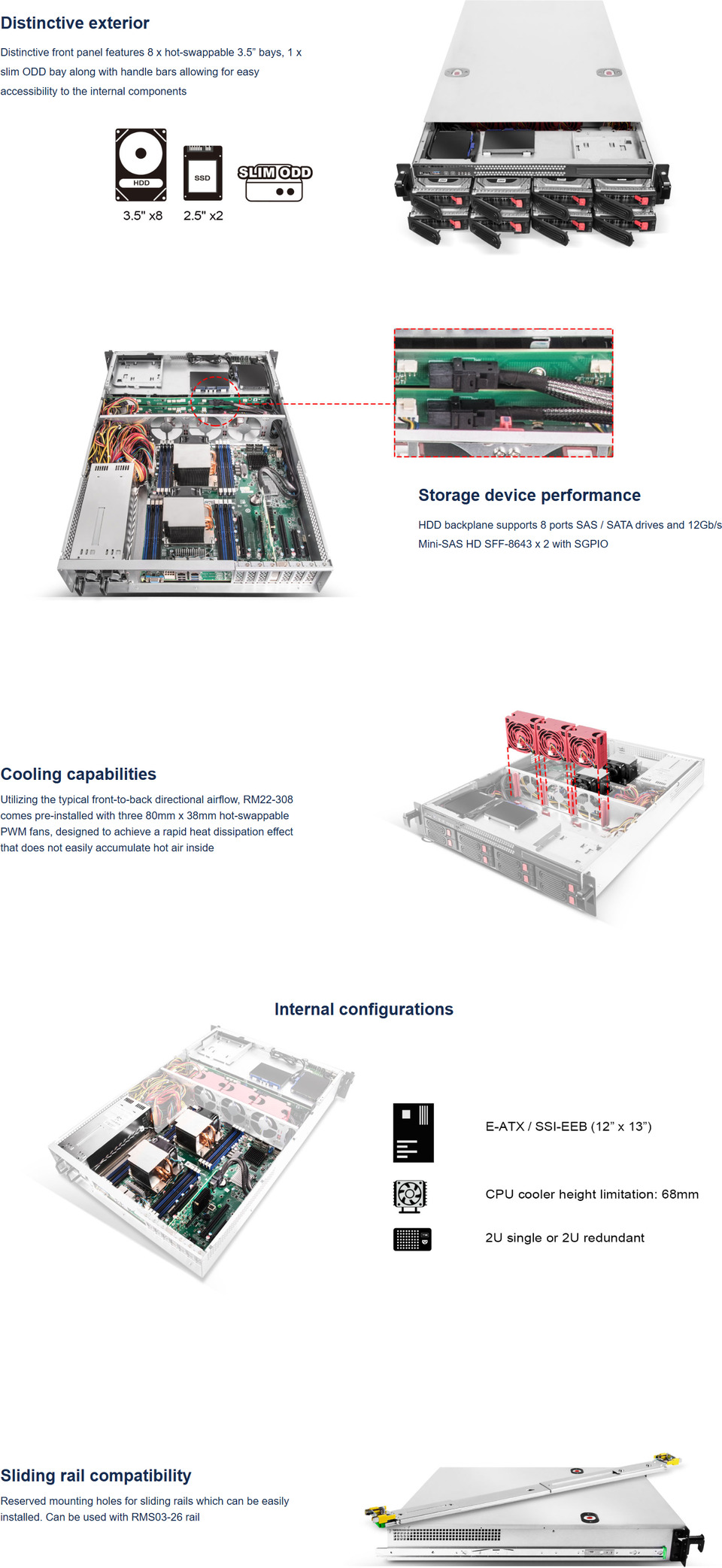

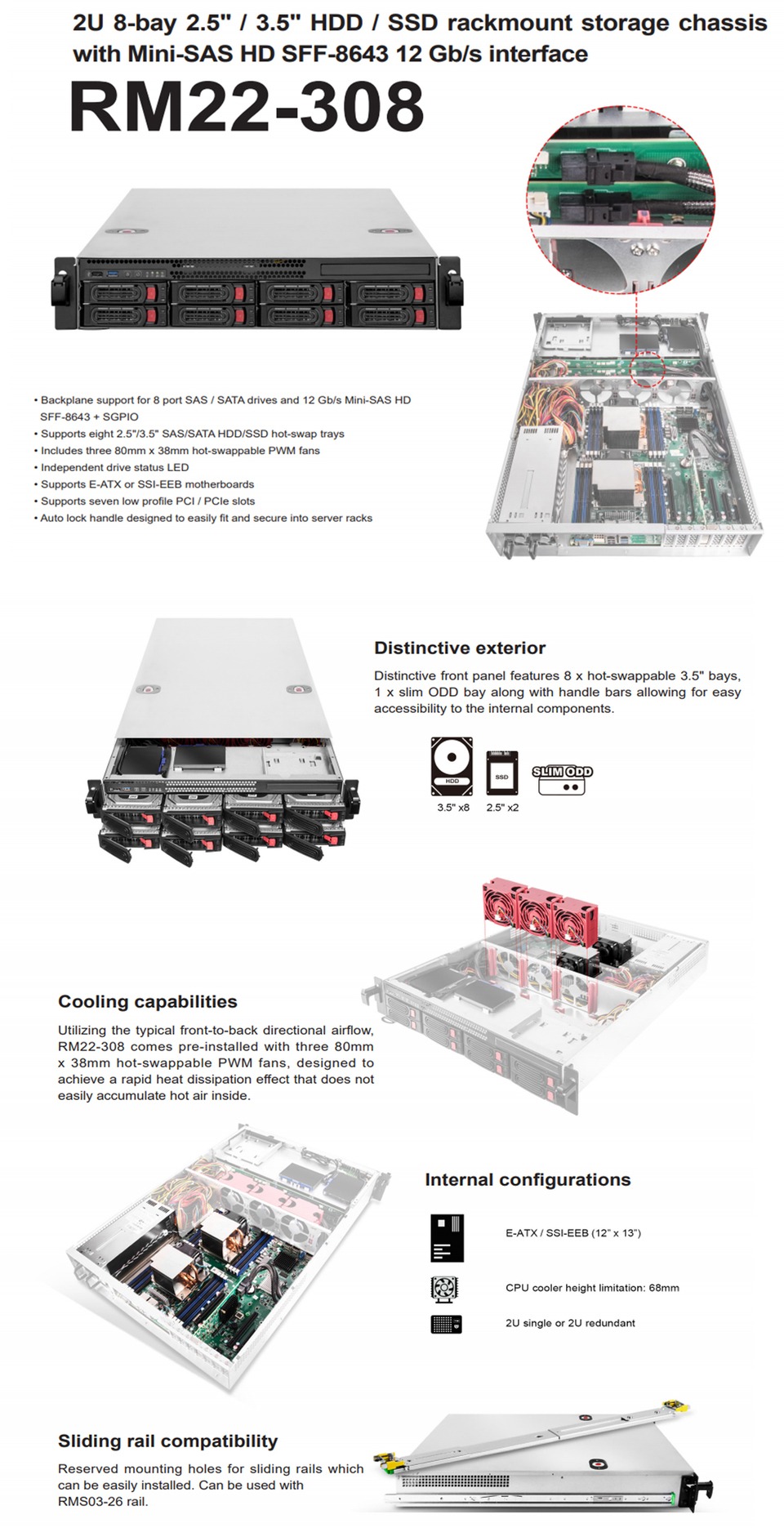

SilverStone RM22-308 2U 8bay SAS 12G rack case no PSU
Web ID: 38168
Backplane support for 8 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
Supports eight 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
Includes three 80mm x 38mm hot-swappable PWM fans
Independent drive status LED
Supports E-ATX or SSI-EEB motherboards
Supports seven low profile PCI / PCIe slots
Auto lock handle designed to easily fit and secure into server racks
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM22-308
Manufacturer Website
Model No.
SST-RM22-308
Chassis form factor
2U
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Main metal thickness
1.2mm
Drive Bay
External
- 3.5" hot-swap x 8
Internal
- 2.5" x 2 (up to 15mm), slim optical x 1 (up to 12.7mm)
HDD backplane
8 ports SAS / SATA to Mini-SAS HD SFF-8643 x 2 with SGPIO
Power connector on HDD backplane
4-Pin peripheral x 2
HDD Interface
SAS III / II / I, SATA III / II / I
Power Supply
2U single or 2U redundant (not included)***
Cooling system
Hot-swap 80 x 38mm PWM fan x 3
Limitation of CPU cooler
68mm
Expansion Slot
Low profile PCI / PCIe x 7
Front I/O Port
USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1**
Front buttons
Power On / Off, system reset
Indicators
Chassis
Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
HDD Tray
HDD Power LED x 8: Yellow
HDD Access x 8: Blinking green
Dimension
430mm (W) x 88.5mm (H) x 660mm (D), 25.1 Liters
Net Weight
10.1 kg
