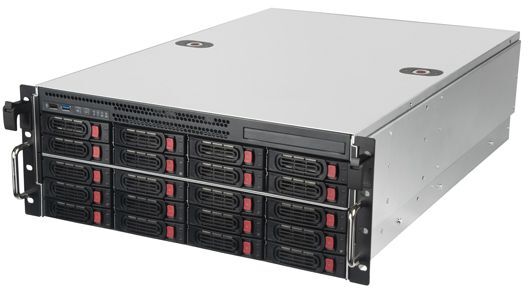

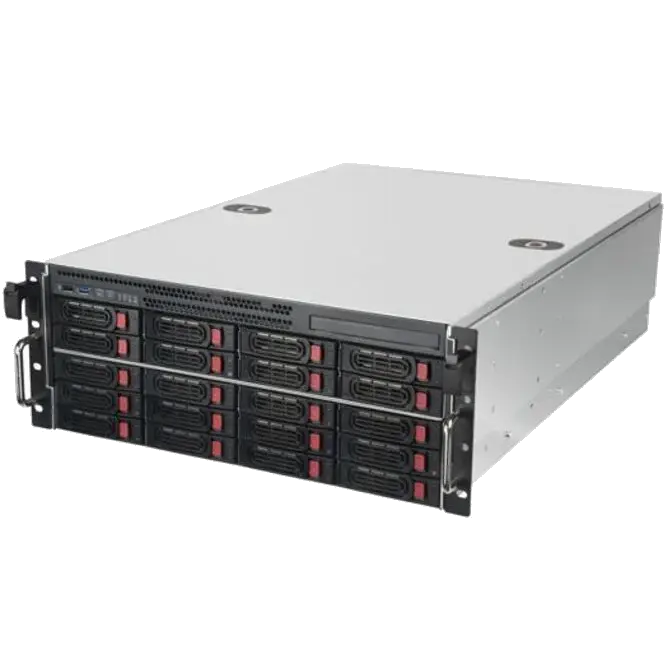

SilverStone RM43-320-RS 4U 20-bay Rackmount Case No PSU
Web ID: 38170
Backplane support for 20 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO
Supports twenty 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
Ball bearing sliding rails included for simple server rack integration
Includes three 120mm x 38mm hot-swappable PWM fans
Auto lock handle for convenient fixation of chassis into rack cabinet
Supports ATX (PS2) / Mini Redundant PSUs*
Supports E-ATX or SSI-EEB motherboards
Supports 7 standard PCI / PCIe slots
Independent drive status LED
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM43-320-RS
GTIN: 844761024833
Manufacturer Website
Model No.
SST-RM43-320-RS
Chassis form factor
4U
Motherboard
SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
Main metal thickness
1.0mm ~ 1.2mm
Drive Bay
External
- 3.5" hot-swap x 20
Slim optical drive x 1 (up to 12.7mm)
Internal
- 2.5" x 2 (up to 15mm)
HDD backplane
20 ports SAS / SATA to Mini-SAS HD SFF-8643 x 5 with SGPIO
Power connector on HDD backplane
4-Pin peripheral x 10
HDD Interface
SAS III / II / I, SATA III / II / I
Power Supply
ATX (PS2) / Mini Redundant*
Cooling system
Rear
- 80mm x 2 fan slots
Internal
- Hot-swap 120 x 38mm PWM ball bearing fan x 3
Limitation of CPU cooler
148mm
Expansion Slot
Standard profile PCI / PCIe x 7
Front I/O Port
USB 2.0 x 1, USB 3.1 Gen 1 Type-A x 1**
Front buttons
Power On / Off, system reset
LED indicator
Chassis
Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
HDD Tray
HDD Power LED x 20: Yellow
HDD Access x 20: Blinking green
Dimension
442mm (W) x 175mm (H) x 660mm (D), 51.1 liters
Net Weight
16.2 kg
