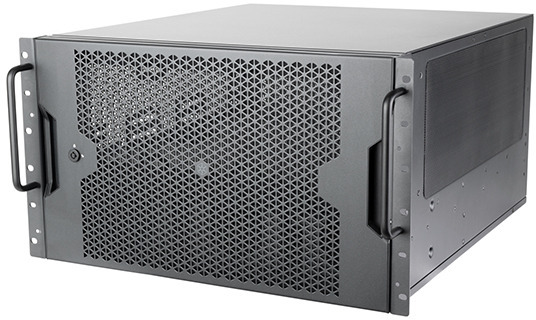

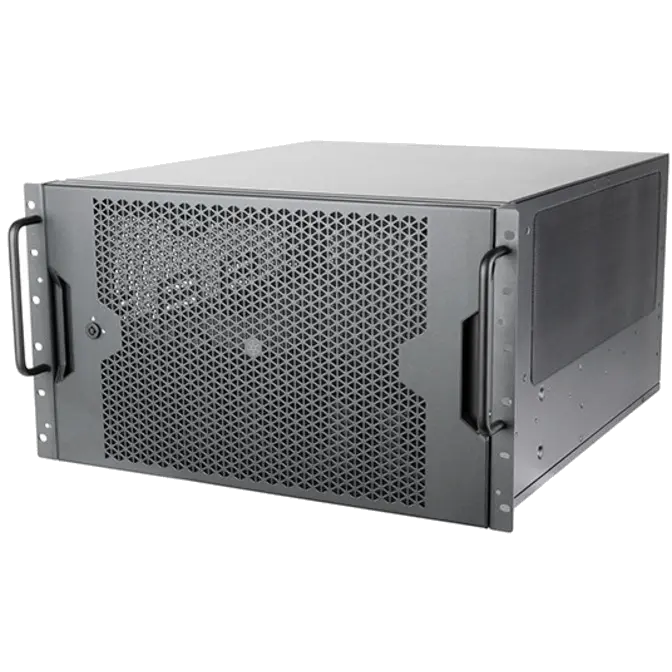

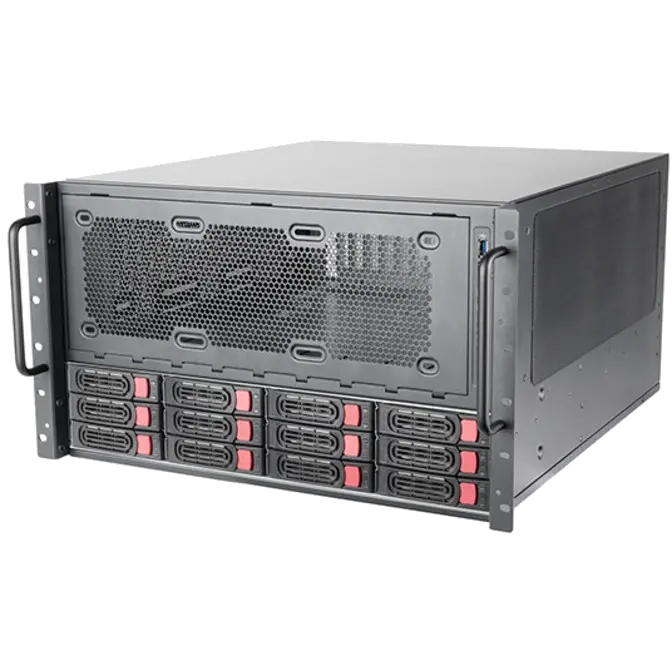

Silverstone RM61-312 6U 12-Bay Rackmount Chassis with Dual PSU
Web ID: 42287
Case Type: Server Chassis
Form Factor: ATX (PSU) || SFX (PSU) || TFX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: Black
Cooler Clearance: 150mm (Cooler Clearance)
GPU Max Length: 340mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator || 360mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 2 x USB 3.0 || 1 x USB 3.0 Type C
Usage: Workstation
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-RM61-312
GTIN: 844761027438
Manufacturer Website
Model No.
SST-RM61-312
Chassis Form Factor
6U
Material
Steel
Motherboard
**SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX
HDD
backplane
- 12 ports SAS / SATA to Mini-SAS HD SFF-8643 x 3 with SGPIO
interface
- SAS-1 / SAS-2 / SAS-3
SATA-1 / SATA-2 / SATA-3
Power connector on backplane
- 4-pin Peripheral x 6
Drive bay
External
- 3.5" hot-swap x 12
Internal
- 2.5" x 4
Cooling system
Front
- 120mm x 3
Rear
- 80mm x 2 (2 x 80mm fans included)
Side
- Left : 120mm x 3 / 140mm x 2
Right : 120mm x 3 / 140mm x 2
Internal
- 80mm x 3
Radiator support
Front
- 120mm / 240mm / 360mm
Side
- Left : 120mm / 140mm / 240mm / 280mm / 360mm
Right : 120mm / 240mm / 240mm / 360mm
Limitation of CPU cooler
w/ GPU holder: 132mm
w/o GPU holder: 150mm
Expansion slot
8
Limitation of expansion card
Length : 340mm
Width : 156mm
Power supply
Primary PSU slot: PS2 (ATX) / Mini Redundant / 2U Redundant
Secondary PSU slot: PS2 (ATX)
Front I/O port
USB3 Type-C x 1
USB3 Type-A x 2
LED Indicators
Chassis
- Power LED x 1: Blue
HDD Access x 1: Green
LAN LED x 2: Green
HDD Tray
- HDD Power LED x 12: Yellow
HDD Access x 12: Blinking green
Front Buttons
Power ON/OFF
System Reset
Dimension
438mm (W) x 265mm (H) x 522mm (D), 60.6 liters
17.24" (W) x 10.43" (H) x 20.55" (D), 60.6 liters
Net weight
17.9 kg
