SilverStone SDP12 3.5in M.2 SATA NVME Drive Mount
Web ID: 25976

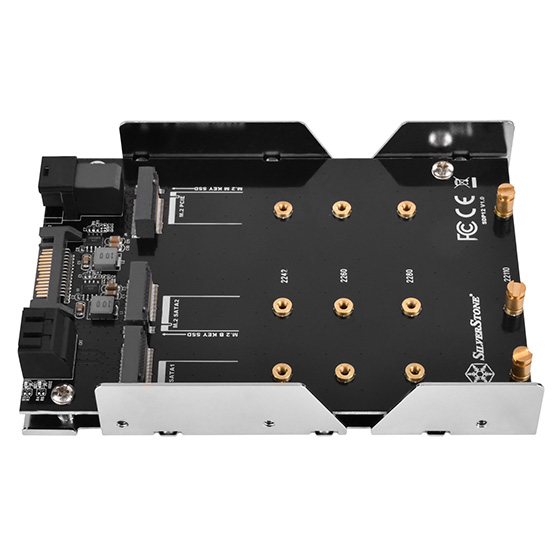

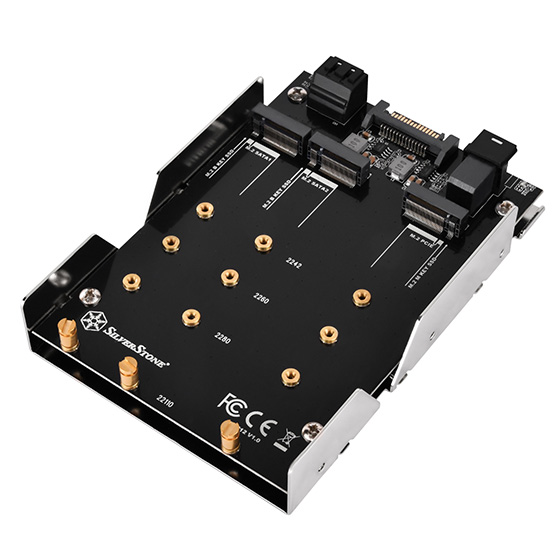

3.5" device bay to two M.2 SATA & one M.2 NVMe SSD adapter with 2x SATA cable includes
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-SDP12
GTIN: 844761016609
 | ? Provides mounting for two SATA M.2 SSDs and one NVMe M.2 SSD into one 3.5?? drive bay ? Supports multiple drive lengths of 42mm, 60mm, 80mm,110mm ? Supports PCIe NVMe M.2 SSD width up to 30.5mm ? Improves system performance by replacing your platter drive with up to three M.2 SSDs ? Exclusive stud easily to fix on pre-drilled mounting holes facilitate installation and removal of SSD ? No driver installation required |
|---|---|
SilverStone??s SDP12 is an adapter designed for users wanting to utilize or adding speedy M.2 devices such as SSD onto their existing PC. SDP12 is a smartly designed drive bay converter that maximizes space to support dual M.2 device (B key) and a PCIe NVMe SSD. For users looking to expand and have the fastest storage solution available on an existing desktop computer, the SDP12 is a great solution. | |
| Model No. | SST-SDP12 |
| Color | Silver |
| Material | 1.0mm painted steel |
| Power connector | SATA 15-Pin x 1 |
| Host interface | 7-Pin SATA connector x 2 36-Pin SFF-8643 connector X1 |
| LED indicator | HDD Access: Blue blinking** |
| Application | 3.5" internal drive bay |
| Capacity | SATA M.2 x 2 PCIe NVMe M.2 x 1 |
| Form factor | M.2 |
| SATA Cable length | 500mm??10mm |
| Number of SATA cable | 2 pcs |
| Module Key | SATA-based B key* x 2 PCIe x4 NVMe-based M key x 1 |
| Net weight | 235.4g??10g |
| Dimension | 101.6 mm (W) x 25.4 mm (H) x 146 mm (D) 4" (W) x 1" (H) x 5.75" (D) |
| Remark : |
|
* B key SSD requires SATA 7 pin cable connected to motherboard to function
** Due to the different type M.2 SSD designs, if you don??t see LED indicator blinking, it means the SSD used does not support such feature.
*** MiniSAS HD SFF-8643 cable not included. If your motherboard supports SFF-8643 U.2 connector, we recommend using SilverStone??sSST-CPS04.
|
