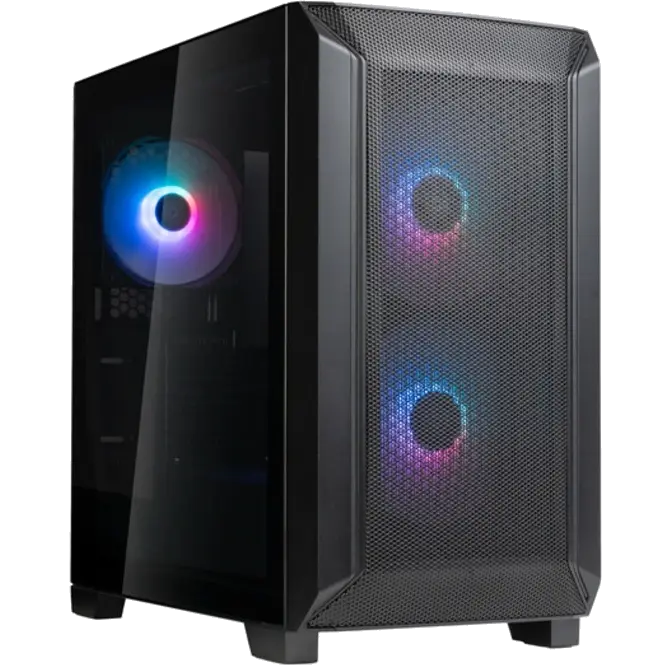

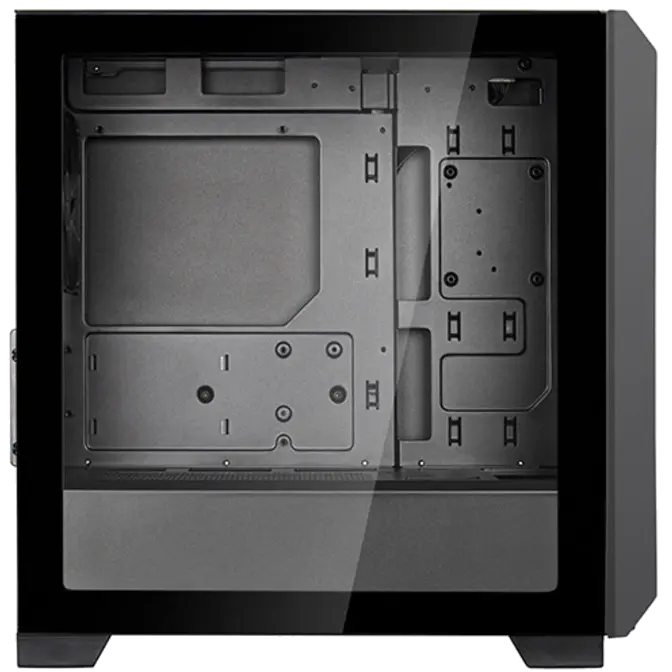

Silverstone SST-FA312X-BG FARA 312X Black Case
Web ID: 42255
Case Type: Micro ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX
Colour: Black
Cooler Clearance: 172mm (Cooler Clearance)
GPU Max Length: 365mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 2 x USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-FA312X-BG
GTIN: 844761027742
Manufacturer Website
Model No.
SST-FA312X-BG
Material
Steel, plastic, tempered glass
Motherboard
Micro-ATX (9.6" x 9.6"), Mini-DTX (8" x 6.7"), Mini-ITX (6.7" x 6.7")
Drive bay
Internal
- 3.5"/ 2.5 x 2 (only 1 form factor can be installed at the same time)
2.5" x 3 (1 x 2.5" SSD is installed on the motherboard tray, which will interfere if 140mm fan or 280mm radiator is installed at the front)
Cooling system
Front
- 120mm x 3 / 140mm x 2 (140mm x 2 ARGB fan included)
Rear
- 120mm x 1 (120mm x 1 ARGB fan included)
Top
- 120mm x 2 / 140mm x 2
Radiator support
Front
- 120mm / 140mm / 240mm / 280mm
Rear
- 120mm
Top
- 120mm / 140mm / 240mm / 280mm
(When installing 280mm radiator, please make sure the components inward on the motherboard is below 24mm to avoid interference)
Limitation of CPU cooler
173mm
Expansion slot
4
Limitation of expansion card
Length : 365mm (incl. front 25mm thickness fan installed)
350mm (applies only to 120mm front fans when installed between the front panel and chassis)
Width : 182mm
Power supply
Standard PS2 (ATX)
Limitation of PSU
170mm
Front I/O port
USB 3.0 x 2
Audio x 1
Mic x 1
Dimension
220mm (W), x 410mm (H), x 412.5mm (D), 37.21 liters
8.66" (W), x 16.14" (H), x 16.24" (D), 37.21 liters
Net weight
5.76 kg
