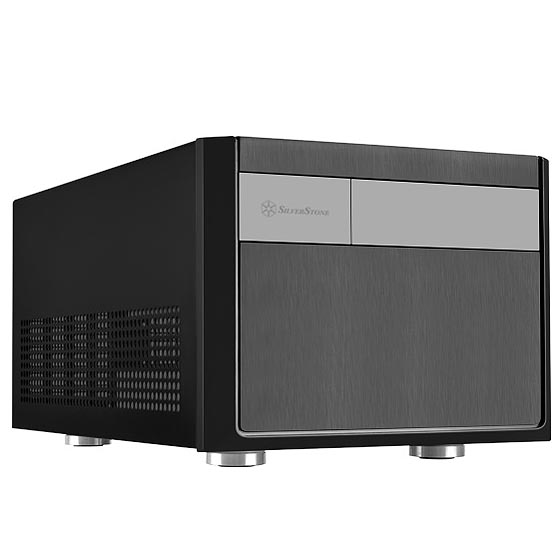

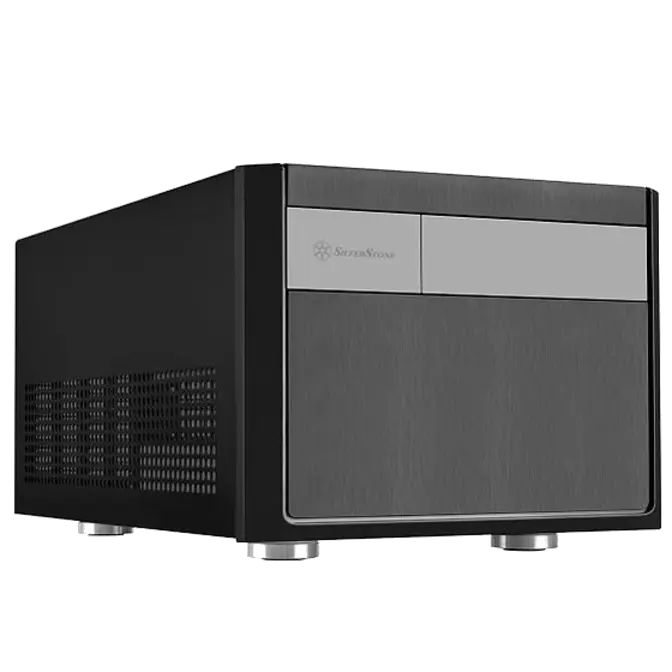

SilverStone Sugo Series SG11 Black Micro ATX Case

Web ID: 25950

Black, Plastic Bazel, steel body black internal,? Micro-ATX,1X5.25",3X3.5" or 2.5", 7*2.5", 1*120 fan and 2x80 fan slot, 1*audio, 1*MIC, 2*USB3.0, Support ATX PSU.
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-SG11B
GTIN: 844761012007

$149
silverstone sugo series sg11 black mini itx case

? Supports graphics cards of any length

? Ample space for CPU cooling (82mm in height)

? Micro ATX motherboard & ATX PSU compatible

? Cleanly styled SFF chassis with modernized layout

? Amazing capacity for 2.5?? drives

SilverStone??s Sugo series, since its introduction in 2005, has been the de facto standard for which retail small form factor cases are defined. The introduction of SG11 is both a tribute and advancement to one of the most revered case designs within SilverStone product portfolio, the Sugo SG01. With classic shoebox proportion maintained, the SG11 continues to impress with its ability to accommodate many standard sized components such as ATX power supply and room for graphics cards up to 14.5 inches (368mm). For cooling, side intake fan size has been upgraded to 120mm from 80mm to help cope with future hardware demands. For storage, redesigned internal layout allows for installation of up to nine 2.5?? drives. Finished with cleanly styled acrylic accent, the beautiful SG11 is a great case for anyone looking to build a compact workstation or a powerful small form factor gaming system.


Model No. SST-SG11B (black)
--
--
--
Material ABS & Acrylic front panel, steel body
Motherboard Micro-ATX, Mini-DTX, Mini-ITX
Drive bay External 5.25" x 1
--
Internal 3.5" x 3 (compatible with 2.5" ), 2.5" x 9
Cooling system Front --
Rear 1 x 80mm fan slot, Optional cross-flow fan
Side 1 x 120mm intake fan, 1200rpm
Top 1 x 80mm fan slot
Bottom --
Internal --
Expansion slot 4
Front I/O port USB 3.0 x 2
audio x 1
MIC x 1
Power supply Optional standard PS2(ATX)
Expansion card *Compatible up to 14.5" (368mm) long, width restriction-4.46" (113mm)
Limitation of CPU cooler 82mm
Limitation of PSU PSU + optical drive/5.25" device = 370mm
Net weight 4.45kg
Dimension 270 mm (W) x 212 mm (H) x 393 mm (D), 22.5 liters
10.63" (W) x 8.35" (H) x 15.47" (D), 22.5 liters


Remark
?? Fan and drive cage configuration will affect graphics card length support, please refer to manual for detailed information.
