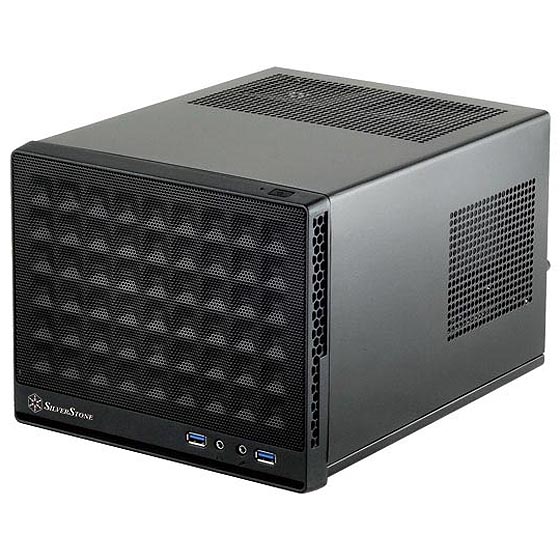

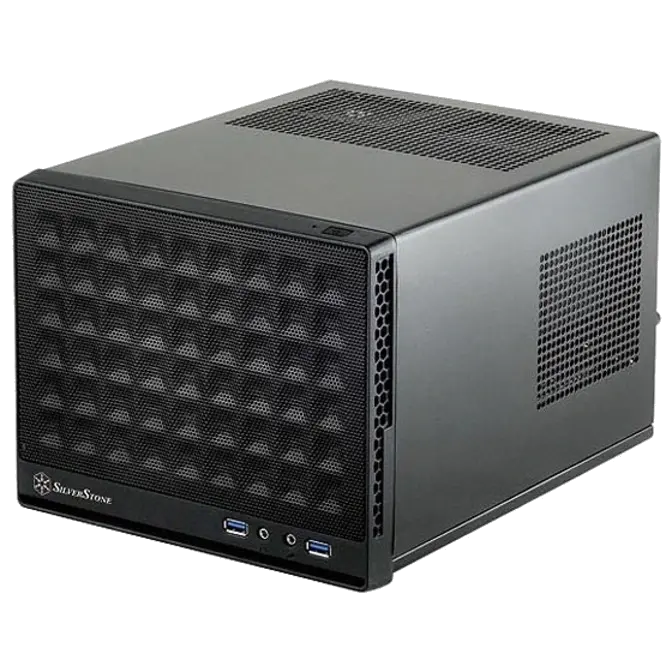

SilverStone Sugo Series SG13 Black Mini ITX Case
Web ID: 26334
PN SST-SG13B. Black, ABS bezel, steel body, Mini-ITX, 1x3.5" or 2x2.5", 1x2.5", 1x120 or 140 fan/radiator slot, 1xaudio, 1xMIC, 2xUSB3.0, ATX PSU support ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: SST-SG13B
GTIN: 844761011987
? Supports standard-length expansion cards (10.5 inches) ? Mini-DTX / Mini-ITX motherboard & ATX PSU compatible ? Supports 120mm or 140mm single fan All-in-One Liquid Cooler ? Supports 2.5?? and 3.5?? hard drives ? Elevated standoff for motherboard back side components | |
After bringing Mini-ITX into mainstream DIY (do it yourself) market in 2009 with the Sugo SG05, SilverStone is looking to define the category again with SG13, a newly evolved design that aims to satisfy every type of computer users. At only 11.5 liters in size, it has suitably small statue for easily integrating into numerous computing environments and will comfortably fit many standard components for general purpose or office builds. For enthusiasts and in keeping with Sugo series?? famed tradition, the SG13??s ability to fit 10.5" (266mm) long expansion card, standard ATX power supply, and all-in-one liquid cooler in 120mm or 140mm size will help produce amazingly small and powerful systems. | |
Model No. | SST-SG13B (black, mesh front panel) | |
Material | Mesh or plastic front panel, steel body | |
Motherboard | Mini-DTX,?Mini-ITX | |
Drive bay | External | -- |
-- | ||
Internal | 3.5" x 1 or 2.5" x 2 , 2.5" x 1 | |
Cooling system | Front | 1 x 120mm/140mm fan slot compatible with radiator(option) |
Rear | -- | |
Side | Oversized vents | |
Top | Oversized vents | |
Bottom | -- | |
Internal | -- | |
Radiator support | Front | 120mm / 140mm x 1 |
Rear | N/A | |
Top | N/A | |
Bottom | N/A | |
Expansion slot | 2 | |
Front I/O port | USB 3.0 x 2 audio x 1? MIC x 1 |
|
Power supply | Optional standard?PS2(ATX) | |
Expansion card | Compatible up to 10.5" (266mm) long, width restriction-5.11" (129mm) | |
Limitation of CPU cooler | 61mm | |
Limitation of PSU | 150mm* | |
Net weight | SG13B:2.47Kg / SG13B-Q:2.43Kg | |
Dimension | 222mm (W) x 181 mm (H) x 285 mm (D) 11.5 liters 8.74" (W) x 7.13" (H) x 11.22" (D) 11.5 liters |
Remark |
* Installing larger 140mm based radiator or fan will require the removal of the upper drive cage and sacrifice available room for graphics card to 9.3" (236mm) minus the thickness of the radiator. * Maximum length for PSU is 150mm, we recommend 140mm due to varying connector locations on PSUs and the unique structure of SG13. |
