StarTech 3-Port USB-C to DisplayPort MST Hub - 4K 30Hz

Web ID: 27210

Multi-Monitor Video Splitter | Windows? | Thunderbolt? 3 Compatible, MST Hub, DisplayPort over USB-C? to 3x DP ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: MSTCDP123DP
GTIN: 650308645030
Manufacturer Website

$237

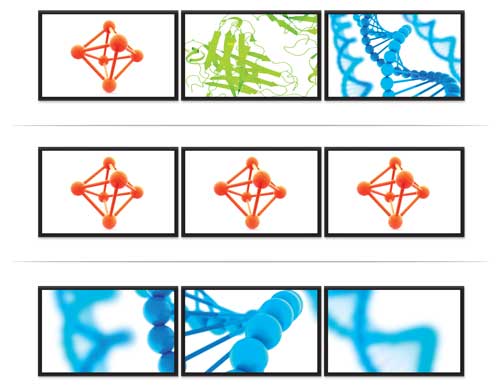

This 3-port USB-C to DisplayPort MST hub lets you connect three DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.  Multitasking Made Easy  With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This MST hub solves that problem by enabling you to connect three displays to your USB-C computer, making multi-tasking much easier.   Using this USB-C to DisplayPort splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Increase Productivity with multiple screens Astonishing Picture Quality  Multi-Stream Transport (MST) technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the multi-monitor splitter can output HD 1080p on three independent displays, it?s perfect for all high-resolution applications such as graphic design and medical imaging.

Hassle-Free Setup  MST offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C multi-monitor adapter is Thunderbolt 3 compatible and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

Extend Your Compatibility MSTCDP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

Connector(s)
Connector A USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B DisplayPort (20 pin) Female Output
Environmental
Operating Temperature 0?C to 45?C (32?F to 113?F)
Storage Temperature -20?C to 70?C (-4?F to 158?F)
Hardware
Audio Yes
AV Output DisplayPort
Chipset ID MegaChips - STDP4320
VIA/VLI - VL100
Ports 3
Packaging Information
Package Height 30 mm [1.2 in]
Package Length 17.5 cm [6.9 in]
Package Width 14.5 cm [5.7 in]
Shipping (Package) Weight 0.2 kg [0.4 lb]
Performance
Maximum Digital Resolutions 3840x2160 @ 30hz
Supported Resolutions

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

Wide Screen Supported Yes
Physical Characteristics
Cable Length 322 mm [12.7 in]
Color Black
Enclosure Type Plastic
Product Height 1.8 cm [0.7 in]
Product Length 78 mm [3.1 in]
Product Width 60 mm [2.4 in]
Weight of Product 86 g [3 oz]
Prominence
Description CDW 75 - 1st Line StarTech.com 3-Port USB-C DisplayPort MST Hub - 4K Multi-Monitor Splitter
Software
OS Compatibility Windows 10, 8.1, 8
Special Notes / Requirements
Note Your USB-C equipped device must support video (DP alt mode) to work with this adapter
What's in the Box
Included in Package MST hub
  quick-start guide
