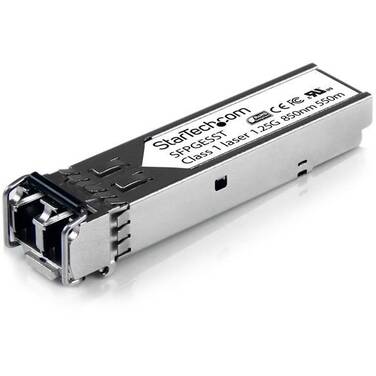

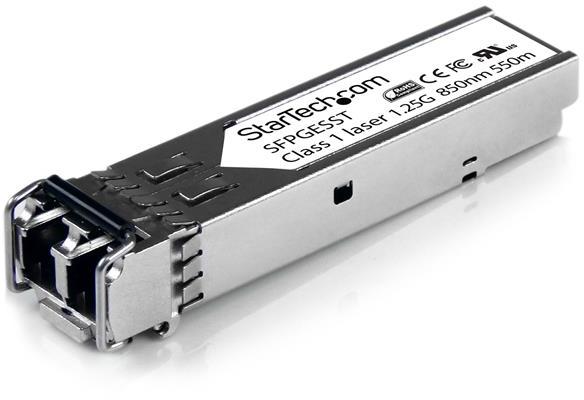

StarTech Cisco Compatible Gigabit Fiber SFP Transceiver Module MM LC w/ DDM 550m (Mini-GBIC)
Web ID: 19607
Add, replace or upgrade SFP modules on Gigabit fiber equipment, 1.25 Gbps 850nm LC Multi Mode Fiber SFP 550m ONLY WHILE STOCKS LAST!
Manufacturer Warranty: Lifetime
Manufacturer PN: SFPGESST
GTIN: 650308494324
Manufacturer Website
The SFPGESST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps as well as Digital Diagnostics Monitoring (DDM), this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco SFP-GE-S transceiver.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
| Environmental | |
| Humidity | 30~70% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -40?C to 85?C (-40?F to 85?F) |
| Hardware | |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| WDM | No |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| DDM | Yes |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1.25 Gbps |
| Wavelength | 850nm |
| Physical Characteristics | |
| Product Height | 10 mm [0.4 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 17 g [0.6 oz] |
| Product Width | 12 mm [0.5 in] |
| Special Notes / Requirements | |
| Note | For use in Gigabit fiber networking equipment and media converters |
| System and Cable Requirements | MSA or Cisco compliant SFP port |
| What's in the Box | |
| Included in Package | 1.25 Gbps Multimode LC SFP |
