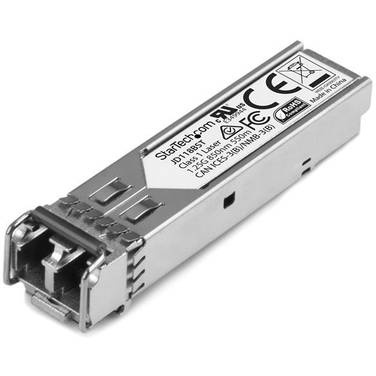

StarTech Gigabit Fiber 1000Base-SX SFP Transceiver Module - HP JD118B Compatible - MM LC - 550m (1804 ft)

Web ID: 21035

Add reliable and cost-effective Gigabit Ethernet connections over multimode fiber with this SFP module - Gb Fiber SFP - JD118B Compatible - MM LC ONLY WHILE STOCKS LAST!
Manufacturer Warranty: Lifetime
Manufacturer PN: JD118BST
GTIN: 065030868532
Manufacturer Website

$131

This Gigabit fiber SFP is compatible with HP® networking equipment and engineered by StarTech.com to deliver what you need most in your network connections: reliable performance. Built to exacting specifications and fully tested to ensure maximum performance, you can install this high-quality fiber transceiver module into HP switches and routers that support the HP JD118B transceiver module, as well as other major brands of networking equipment.

This 1000Base-SX SFP delivers Gigabit connectivity over multimode fiber cable, with a range of up to 550 m (1804 ft.). It provides a dependable and cost-effective way to add, replace or upgrade the ports on your networking equipment, and it's backed by a lifetime warranty.

Built for reliable network performance

This multimode SFP transceiver is manufactured by StarTech.com to meet or exceed OEM specifications and comply with the industry?s MSA (Multi-Source Agreement) standards. Committed to the highest standards of quality, StarTech.com provides an extensive range of networking products including copper and fiber network cards, fiber media converters, Ethernet switches and wireless products.

Fully compatible with HP and other major brands

The MM Gigabit SFP is engineered to the highest quality standards and is 100% HP compatible, equivalent to the HP JD118B transceiver. The StarTech.com SFP transceiver is configured and fully tested to ensure it works seamlessly with HP or other major brands of networking equipment.

You can be assured that the use of StarTech.com SFP products should not affect the warranty protection of your networking equipment.

Convenient and scalable

Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install it without interrupting network traffic or having to reboot your equipment. It provides a versatile and cost-effective solution that?s compatible with a multitude of Gigabit networking devices.

Ideal for use in switches, routers, and other networking equipment, the SFP provides reliable performance, allowing you to expand your network to remote segments cost-effectively. This GbE fiber SFP supports multimode fiber cable with a maximum distance of 550 m or 1804 ft., maximum data rates of up to 1.25Gbps, and Digital Diagnostics Monitoring (DDM / DOM).

You can count on JD118BST for reliable performance, backed by a lifetime warranty and free lifetime technical support.

Performance
Maximum Data Transfer Rate1.25 Gbps
MTBF3,381,761 hours
Wavelength850nm
Physical Characteristics
ColorSilver
Enclosure TypeAluminum
Product Height12.5 mm [0.5 in]
Product Length56.6 mm [2.2 in]
Product Weight16 g [0.6 oz]
Product Width13.7 mm [0.5 in]
Special Notes / Requirements
NoteFor use in Gigabit fiber networking equipment and media converters
System and Cable RequirementsMSA or HP compliant SFP port
What's in the Box
Included in PackageSFP transceiver
Performance
Max Transfer Distance550 m (1804 ft)
Fiber TypeMulti Mode
Fiber Operating ModeFull-Duplex
DDMYes
Compatible Networks1000 Mbps (1 Gbps)
Packaging Information
Shipping (Package) Weight95 g [3.4 oz]
Hardware
Industry StandardsIEEE 802.3z 1000BASE-SX
Compatible BrandHP
Environmental
Storage Temperature-40?C to 85?C (-40?F to 185?F)
Operating Temperature0?C to 70?C (32?F to 158?F)
Humidity5~95% RH
Connector(s)
Local Unit ConnectorsFiber Optic LC Duplex Female
