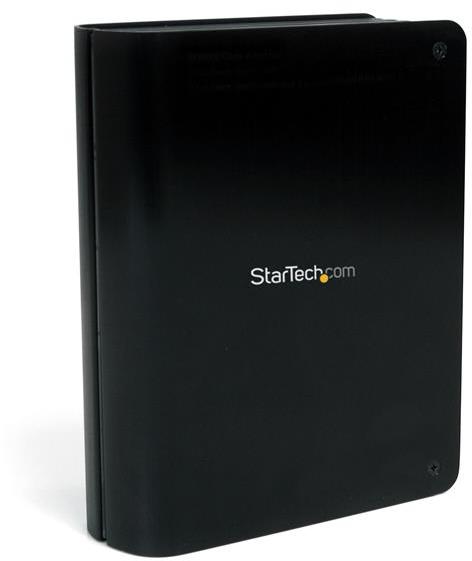

StarTech USB 3.0 to 3.5 SATA III Hard Drive Enclosure with Fan and Upright Design SATA 6 Gbps & UASP Support
Web ID: 19649
Turn a 3.5? SATA HDD into an external upright UASP-supported Hard Drive with built-in fan - USB 3.0 to 3.5? SATA III Upright HDD Enclosure w/ UASP ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: S3510BMU33B
GTIN: 650308561644
Manufacturer Website
The S3510BMU33B 3.5in SATA hard drive enclosure lets you add external storage to your computer by connecting a 3.5" HDD through an available USB 3.0 port.
Enhanced with UASP (USB Attached SCSI Protocol), this enclosure lets you get the most out of your SATA III hard drive with performance up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller. See our UASP testing results below for further details.
The enclosure features aluminum housing with a built-in fan to keep your drive running at an optimal temperature at all times. Plus, to help save valuable work space, the enclosure features an upright design that minimizes its footprint and makes it easy to position near your computer.
With support for SATA I/II/III, and large capacity drives (tested up to 4TB) this HDD enclosure is compatible with virtually any 3.5in SATA hard drive, and can greatly increase the storage/backup capabilities of your computer.
To ensure compatibility with your computer system, the S3510BMU33B supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The S3510BMU33B is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
Connector(s) | |
Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
Host Connectors | USB Type-B (9 pin) USB 3.0 Female |
Environmental | |
Humidity | Operation Humidity: 10% ~ 90% RHStorage Humidity: 5% ~ 95% RH |
Operating Temperature | 0?C to 40?C (32?F to 104?F) |
Storage Temperature | -10?C to 65?C (14?F to 149?F) |
Hardware | |
Bus Type | USB 3.0 |
Chipset ID | ASMedia - ASM1153E |
Compatible Drive Types | SATA |
Drive Installation | Fixed |
Drive Size | 3.5in |
Fan(s) | Yes |
Fans | 80 mm |
Interface | USB 3.0 |
Number of Drives | 1 |
Number of internal 3.5 inch bays | 1 |
Indicators | |
LED Indicators | Power/Activity LED |
Packaging Information | |
Shipping (Package) Weight | 1030 g [36.4 oz] |
Performance | |
Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drives |
Type and Rate | SATA III (6 Gbps) |
USB 3.0 - 5 Gbit/s | |
UASP Support | Yes |
Physical Characteristics | |
Color | Black |
Enclosure Type | Aluminum and Plastic |
Product Height | 54.5 mm [2.1 in] |
Product Length | 180.5 mm [7.1 in] |
Product Weight | 570 g [20.1 oz] |
Product Width | 142.5 mm [5.6 in] |
Power | |
Center Tip Polarity | Positive |
Input Current | 600ma |
Input Voltage | 100 ~ 240 AC |
Output Current | 2 A |
Output Voltage | 12 DC |
Plug Type | M |
Power Consumption (In Watts) | 24 |
Power Source | AC Adapter Included |
Software | |
Microsoft WHQL Certified | Yes |
OS Compatibility | OS independent; No software or drivers required |
What's in the Box | |
Included in Package | Instruction Manual |
Pack of Foam Spacers | |
Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
USB 3.0 3.5? SATA HDD Enclosure | |
USB 3.0 Cable |
