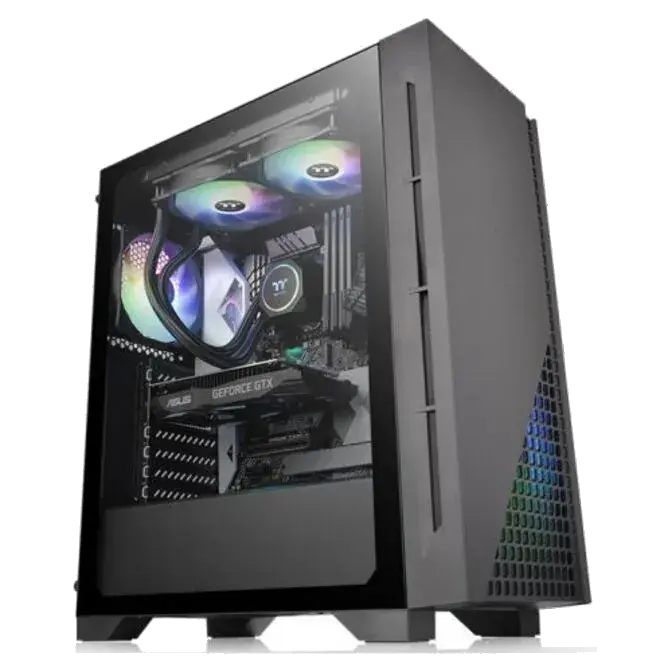

Thermaltake ATX H330 Tempered Glass Mid-Tower Case CA-1R8-00M1WN-00
Web ID: 29404

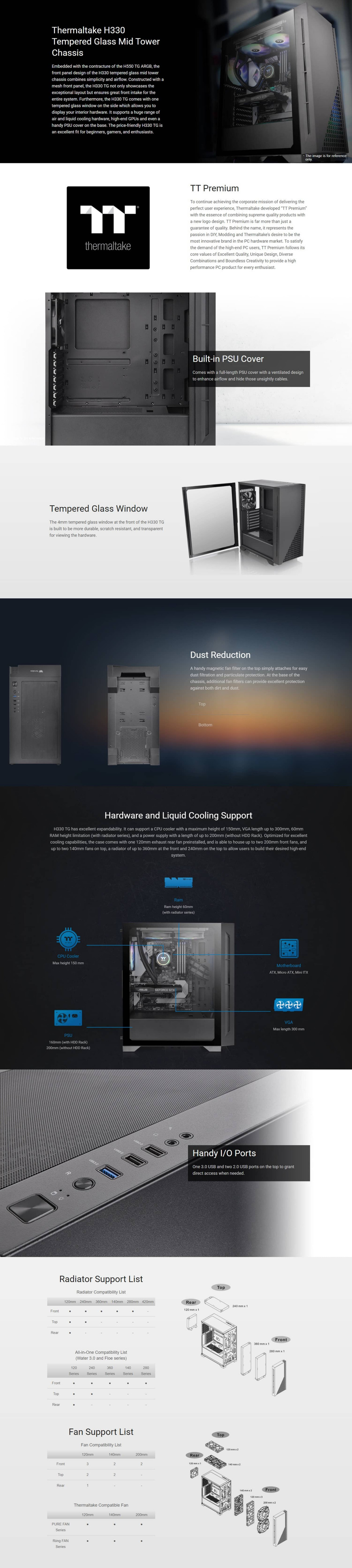

H330 TG comes with one tempered glass panel on the left, one preinstalled 120mm standard rear fan and supports motherboards up to ATX. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1R8-00M1WN-00
GTIN: 841163076460
Manufacturer Website
$79
| P/N | CA-1R8-00M1WN-00 |
|---|---|
| SERIES | H Series |
| MODEL | H330 TG |
| CASE TYPE | Middle tower |
|
DIMENSION (H X W X D) |
419 x 210 x 480 mm (16.5 x 8.27 x 18.9 inch) |
| NET WEIGHT | 6.12 kg / 13.49 lb |
| SIDE PANEL | 4mm Tempered Glass x1(Left) |
| COLOR | Exterior & Interior : Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Rear (exhaust) : 1 x 120 x 120 x 25 mm fan (1000rpm, 16 dBA) |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket) |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |

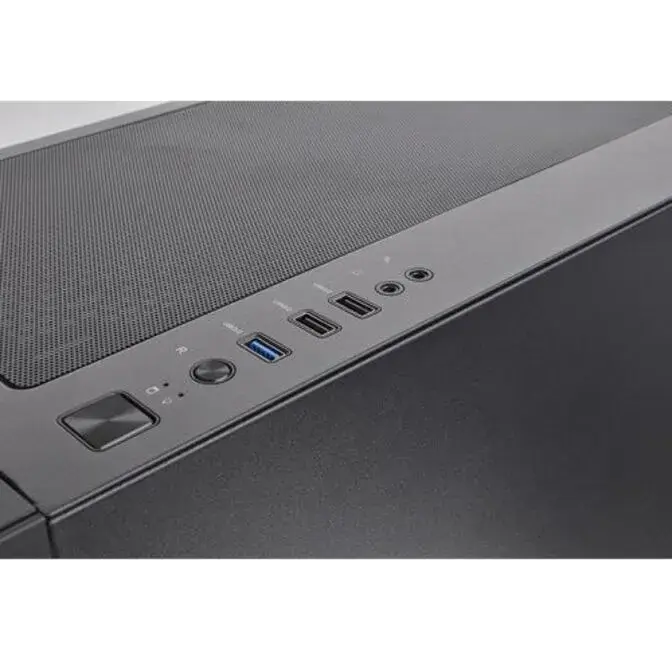

| I/O PORT | 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm or 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm 2 x 200mm or 1 x 200mm Top: 2 x 120mm or 1 x 120mm 2 x 140mm or 1 x 140mm Rear: 1 x 120mm, |
| RADIATOR SUPPORT | Front: 1 x 360mm or 1 x 240mm or 1 x 120mm 1x 280mm or 1 x 140mm Top: 1 x 240mm or 1 x 120mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 150mm PSU length limitation: 160mm(With HDD Rack) 200mm(Without HDD Rack) VGA length limitation: 300mm RAM height limitation: 60mm(With radiator series) |
