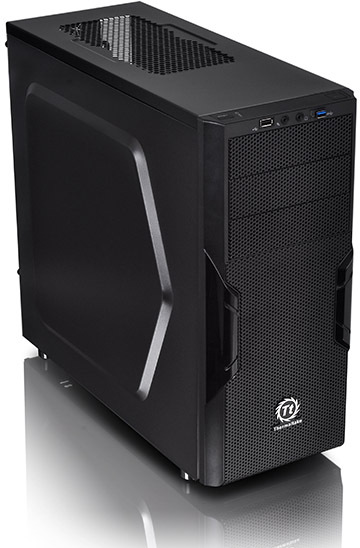

Thermaltake ATX Versa H22 Case Black USB 3.0 with 500W PSU CA-3B3-50M1NA-00

Web ID: 12381

Ideal for home-computer builders and gamers, with enough space for high-end hardware and expansion. The ample ventilation options, cleanable air filter, and a perforated mesh bezel help to keep the entire system cool and dust-free. Versa H22 combines a manageable frame size with extensive options to customize users computer or gaming system
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-3B3-50M1NA-00
GTIN: 841163054512
Manufacturer Website

$99SAVE $20

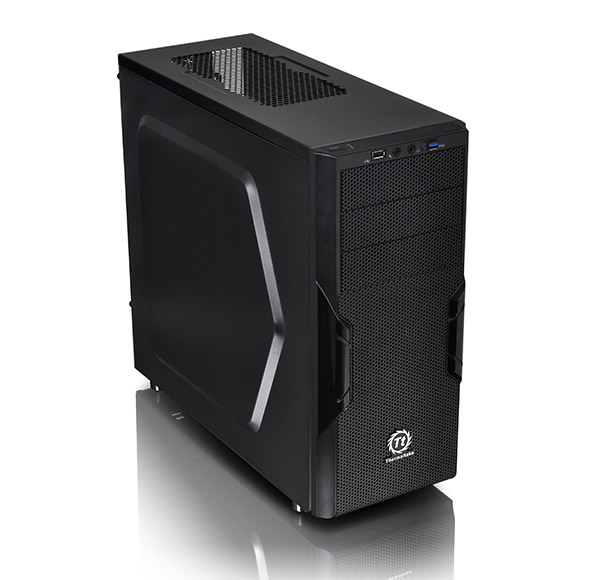

Thermaltake Versa H22 Mid-tower chassis
Ideal for home-computer builders and gamers, with enough space for high-end hardware and expansion. The ample ventilation options, cleanable air filter, and a perforated mesh bezel help to keep the entire system cool and dust-free. Versa H22 combines a manageable frame size with extensive options to customize user’s computer or gaming system.

Gaming Design
Designed for gamer, perforated metal mesh front and top panel to allow quick heat dissipation and rapid air intake for maximum ventilation. The heighten foot-stands at the bottom help to enhance airflow.

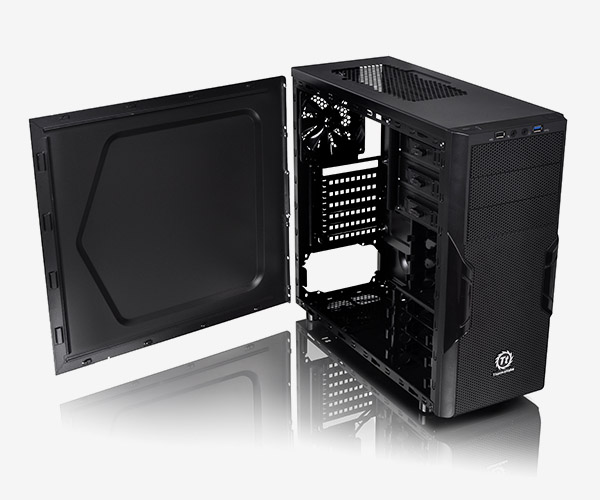

Tool-free Installation
Innovative 5.25” & 3.5” tool-free drive bay design minumized the hassels of installing/removing. Trio drive bay concept “3 + 3 + 3”, a perfect ratio for accessory and storage devices.

Optimized Ventilation

Preinstalled one 120mm rear exhaust fan, optional 2 x 120mm intake fans to optimize system ventilation with dust filter.


Convenient Support

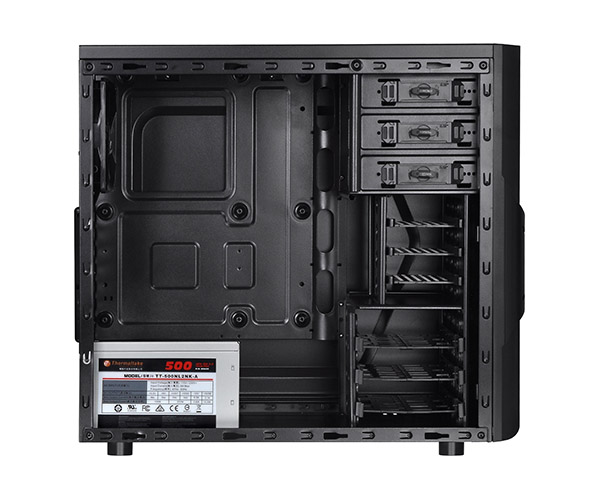

Pre-mounting holes to support motherboards up to standard ATX and CPU cooler installation, long graphic card also supported as well as Advanced Cable Management and Liquid Cooling System.

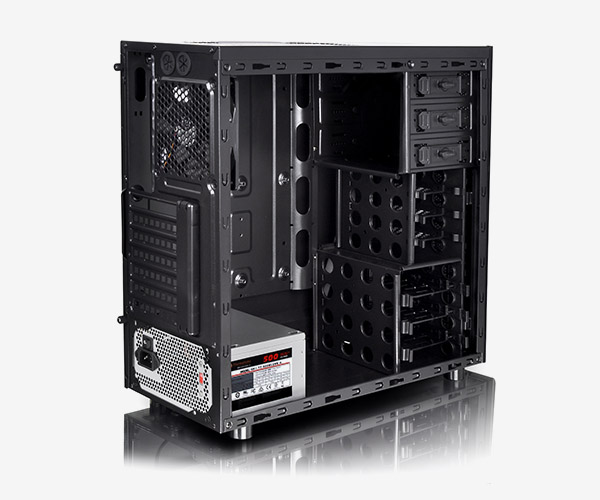

Bottom-placed PSU

Versa H22 is designed with bottom PSU placement. This design improves air flow and extend the lifespan of the power supply. A removable dust filter is also included to keep dust out.

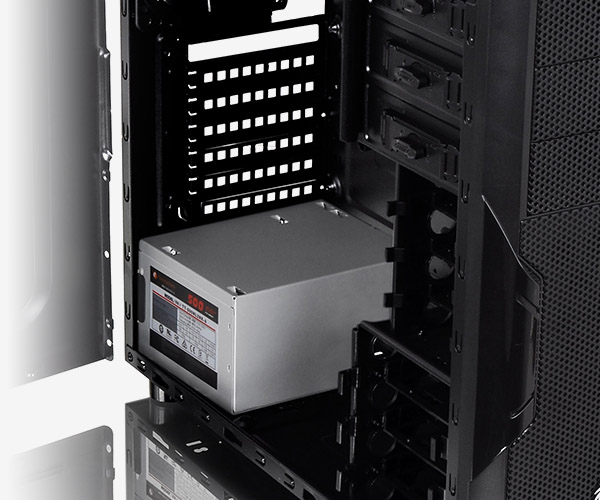

500W Silent Power Supply Included
Versa H22 comes with a 500W silent power supply. It is Intel ATX 12V 2.2 Compatible PSU, with 6-pin PCI-E connector to support high-end graphic card. It has build-in Over Power Protection, Over Voltage protection, and Short-Circuit protection; Haswell ready with TUV, UL, CE and FCC certification to achieve maximum energy savings.





DC OUTPUT+3.3V+5V1+12V1+12V2-12V+5VSB
Max Output Current25A28A14A15A0.3A2.0A
Min Output Current0.5A0.3A1.0A1.0A0A0A
20+4-pin Main Connector X 1
4-pin +12V Power Connector X1
4-pin Peripheral Connector X 5
4-pin Floppy Connector X 1
6-pin PCI Express Connector X 1
5-pin SATA Connector X 3
CPU 4pin to 4pin adapter X 1
CPU 4pin to 8pin adapter X 1



Model Versa H22 C+P
P/N CA-3B3-50M1NA-00
Case Type Mid Tower
Dimension 429 x 209 x 480 mm
(16.9 x 8.2 x 18.9 inch)
Weight 6.7 kg / 14.7 lb
Side Panel No Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :(optional)
120 x 120 x 25 mm x 2
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan
(1000rpm, 16dBA)
Drive Bays -Accessible : 3 x 5.25’’
-Hidden : 3 x 3.5’’ or 2.5’’, 3 x 2.5’’
Expansion Slots 7
Motherboards 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Ports USB 3.0 x 1,USB 2.0 x 1, HD Audio x 1
PSU Standard PS2 PSU (Included)
- 500W ATX 12V
- 120mm fan x 1
- 24P, CPU+12V 4+4Pin, PATA x 5, FDD x 1, PCI-E 6Pin, SATA x 3
- 115V / 230V
LCS Upgradable Supports 1/2”?3/8”?1/4” water tube
Radiator Support Rear: 1 x 120mm
Other CPU cooler height limitation: 155mm
VGA length limitation: 315mm
