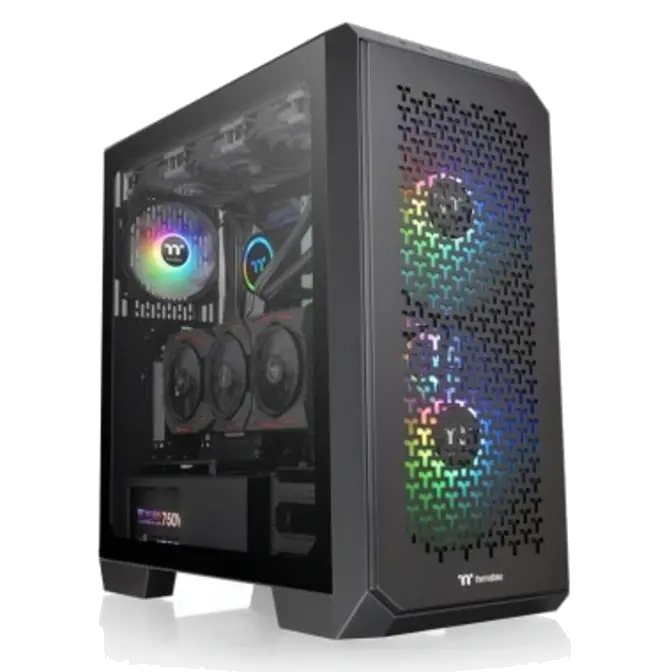

Thermaltake ATX View 300 MX ARGB TG Case Black CA-1P6-00M1WN-00
Web ID: 34710
Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design.
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1P6-00M1WN-00
GTIN: 841163081228
Manufacturer Website
$269
| P/N | CA-1P6-00M1WN-00 |
|---|---|
| SERIES | View |
| MODEL | View 300 MX |
| CASE TYPE | Mid Tower |
| DIMENSION (H X W X D) | 505 x 230 x 506 mm (19.9 x 9.1 x 19.9 inch) |
| NET WEIGHT | 10.4 kg / 22.9 lbs. |
| SIDE PANEL | 4mm Tempered Glass x 1 |
| COLOR | Black |
| MATERIAL | SPCC + ABS |
| COOLING SYSTEM | Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1 |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
2 x 3.5”, 4 x 2.5” or 6 x 2.5” |
| EXPANSION SLOTS | 7 (Rotatable Patented Design) |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
| I/O PORT | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm, 2 x 140mm, 1 x 140mm 2 x 200mm, 1 x 200mm Top: 3 x 120mm, 2 x 120mm, 1 x 120mm, 2 x 140mm, 1 x 140mm 1 x 200mm Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack) Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack) Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 175mm VGA length limitation: 280mm(With reservoir) 400mm(Without reservoir) PSU length limitation: 200mm |
