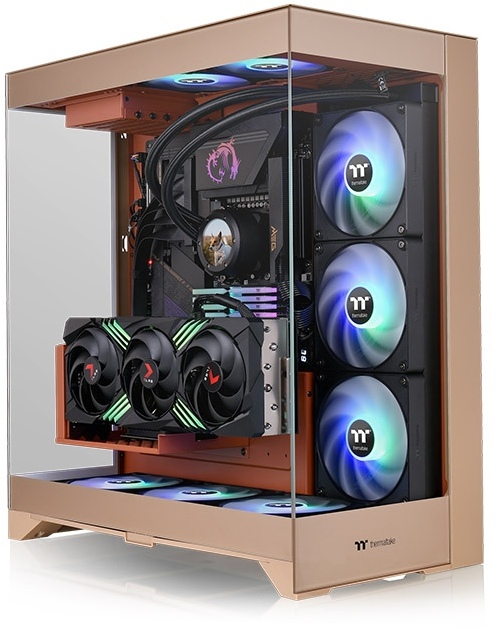

Thermaltake CTE E550 Tempered Glass Dual Chamber Mid Tower Case Gravel Sand
Web ID: 43394
Case Type: ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX || ATX || E-ATX
Colour: Brown
Cooler Clearance: 166mm (Cooler Clearance)
GPU Max Length: 415mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator || 360mm Radiator || 420mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 1 x USB 3.2 Type-C || 2 x USB 3.0
Usage: Gaming
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1Z8-00MGWN-00
GTIN: 841163097090
Manufacturer Website
$259
| P/N | CA-1Z8-00MGWN-00 |
|---|---|
| Series | CTE |
| CASE TYPE | Mid Tower |
| Dimension (H x W x D) | 558.5 x 270 x 513mm (21.99 x 10.63 x 20.2 inch) |
| NET WEIGHT | 14.5 kg / 31.97 lbs. |
| PANEL | 4mm Tempered Glass x 3 |
| Color | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5” |
| EXPANSION SLOTS | 7 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 10.5” (E-ATX) |
| I/O Port | USB 3.0 x 2, Type-c x1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm Right (M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm Bottom: 3 x 120mm, 2 x 120mm, 1 x 120mm 3 x 140mm ,2x 140mm, 1 x 140mm |
| RADIATOR SUPPORT | Top: 1 x 240mm, 1 x 120mm Right (M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm Bottom (DIY only): 1 x 360mm, 1 x 240mm, 1 x 120mm 1 x 420mm, 1 x 280mm, 1 x 140mm |
| CLEARANCE | CPU cooler max height: 166mm VGA max length: 415mm (with radiator) 443.8mm (without radiator) PSU max length: 220mm |
