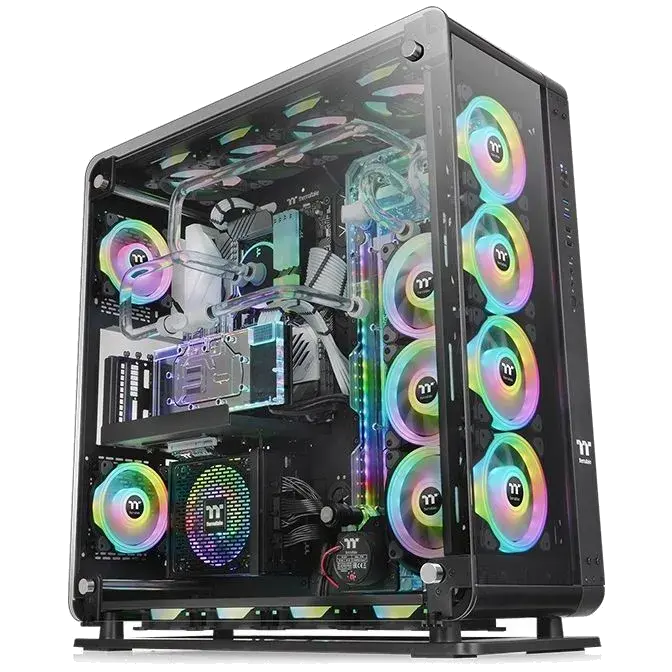

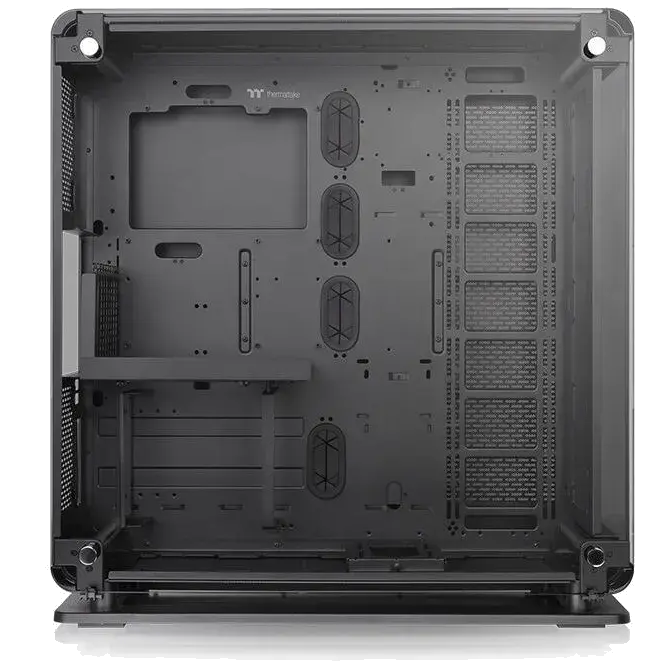

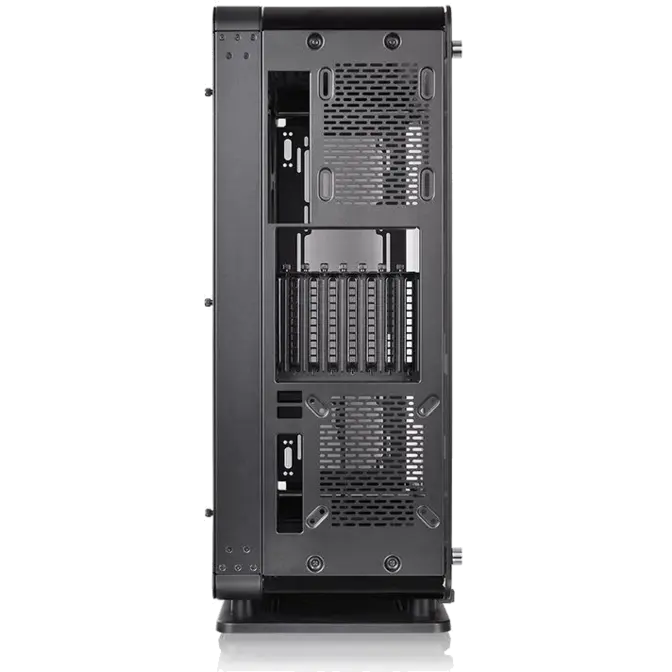

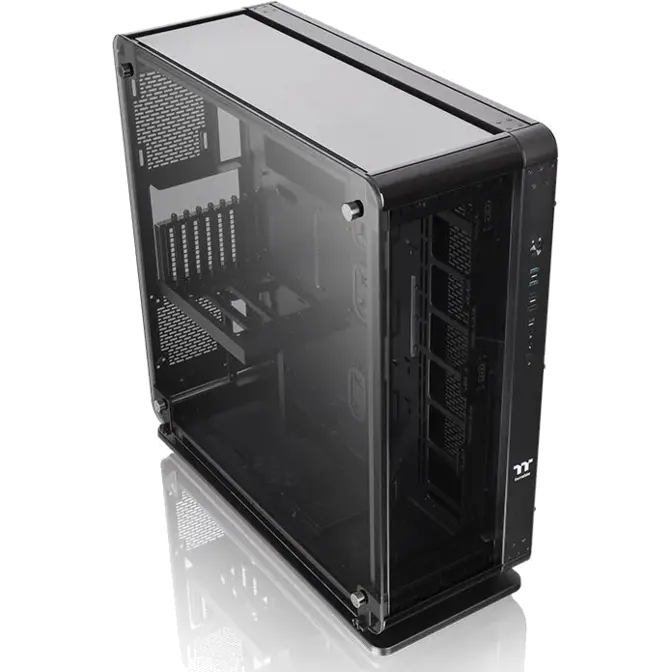

Thermaltake E-ATX Core P8 Tempered Glass Full-Tower Case CA-1Q2-00M1WN-00
Web ID: 29164
Thermaltake Core P8 Tempered Glass Full-Tower E-ATX Case, Case Type: Full Tower, 3 Sided Tempered Glass (4mm Thickness), Material: SPCC, Drive Bay Support: 1x 2.5" (Pump Bracket) or 3x 3.5" or 6x 2.5" (With HDD Bracket, Hidden), 8 Expansion Slots, Motherboard Support: Supports up to E-ATX, I/O Ports: 1x USB-C 3.1 Gen 2, 2x USB 3.0, 2x USB 2.0 & HD Audio, Fan Support: 4x 120mm/3x 140mm Front/Top, 2x 120mm/1x 140mm Rea & 4x 120mm/3x 140mm Right/Bottom
Manufacturer Warranty: 2 Year
Manufacturer PN: CA-1Q2-00M1WN-00
GTIN: 841163073902
Manufacturer Website
| · The Core P8 TG can be transformed into an open frame chassis once the front and top tempered glass panels are removed |
| · 4mm Thick Tempered Glass Window with Stunning Viewing |
| · The Core P8 TG is designed for use in two different ways: Wall-mount and vertical placement |
| · Rotational PCI-E slots give you the option to display your graphics card either horizontally or vertically, creating plenty of flexible space for your system |
| · Two 3.0 USB, two 2.0 USB, and one USB 3.1 (Gen 2) Type C port placed at the front-right panel to grant direct access when needed |
Core P8 Tempered Glass Full Tower Chassis
All combine in one, the Core P8 Tempered Glass Full Tower Chassis can be transformed between the two forms effortlessly and is the newest member to the Thermaltake iconic open frame Core Series. The Core P8 TG features a fully modular design, Rotational PCI-E Slots, support for 120mm or 140mm fans, and removable filters, remarkable expansion for high-end PC components. The Pacific Core P5 DP-D5 Plus Distro-Plate with pump combo is also installable with this case, giving you plenty of options to display your liquid cooling. The Core P8 TG is a great fit for users who are looking for a unique PC case.
| P/N | CA-1Q2-00M1WN-00 |
|---|---|
| SERIES | Core |
| MODEL | Core P8 TG |
| CASE TYPE | Full Tower |
| DIMENSION (H X W X D) | 660 x 260 x 626 mm (26 x 10.24 x 24.65 inch) |
| NET WEIGHT | 22.6 kg / 49.8 lbs |
| SIDE PANEL | Tempered Glass x 3 (4mm thickness) |
| COLOR | Black |
| MATERIAL | SPCC |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
1 x 2.5’’ (with Pump Bracket) 3 x 3.5’’ or 6 x 2.5’’ (With HDD Bracket) |
| EXPANSION SLOTS | 8 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13”(E-ATX) |
| I/O PORT | 1 x USB 3.1 (Gen 2) Type C, 2 x USB 3.0, x 2 USB 2.0, 1 x HD Audio |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Top: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Rear: 1 x 120mm or 2 x 120mm , Right: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm Bottom: 4 x 120mm or 3 x 120mm or 2 x 120mm or 1 x 120mm 3 x 140mm or 2 x 140mm or 1 x 140mm |
| RADIATOR SUPPORT | Front: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 420mm or 1 x 280mm or 1 x 140mm Top: 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 280mm or 1 x 140mm Right: 1 x 480mm or 1 x 360mm or 1 x 240mm or 1 x 120mm 1 x 420mm or 1 x 280mm or 1 x 140mm Bottom: 1 x 240mm or 1 x 120mm (With P5 DP-D5 ) , |
| CLEARANCE | CPU cooler height limitation: 180mm VGA length limitation: 280mm (With Reservoir) 320mm (Without Reservoir) PSU length limitation: 200mm |
