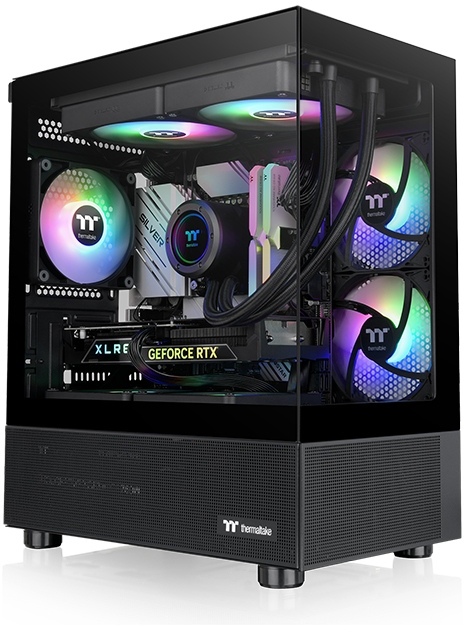

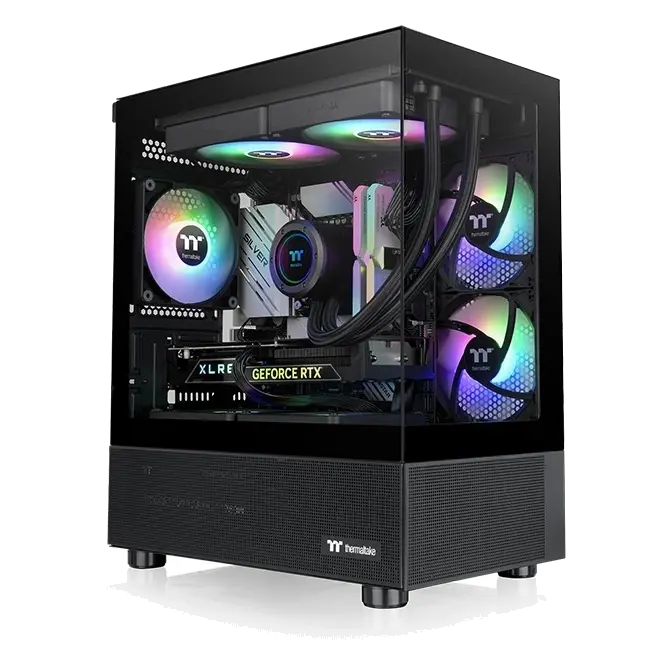

Thermaltake Micro-ATX View 170 TG Black Case CA-1Z4-00M1WN-00
Web ID: 42097
Case Type: Micro ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX
Colour: Black
Cooler Clearance: 160mm (Cooler Clearance)
GPU Max Length: 340mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 2 x USB 3.0
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-1Z4-00M1WN-00
GTIN: 841163095348
Manufacturer Website
$69
| P/N | CA-1Z4-00M1WN-00 |
|---|---|
| SERIES | View |
| MODEL | View 170 TG ARGB |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 438 x 212 x 377.5 mm (17.24 x 8.35 x 14.86 inch) |
| NET WEIGHT | 6.35 kg / 14 lbs. |
| PANEL | 3mm Tempered Glass x 2 |
| COLOR | Black |
| MATERIAL | SPCC |
| COOLING SYSTEM | Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2 Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
| DRIVE BAYS -ACCESSIBLE -HIDDEN |
1 x 3.5”, 2 x 2.5” |
| EXPANSION SLOTS | 4 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O PORT | USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right: 2 x 120mm, 1 x 120mm Rear: 1 x 120mm Power Cover: 2 x 120mm, 1 x 120mm |
| RADIATOR SUPPORT | Top: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler max height: 160mm VGA max length: 340mm PSU max length: 180mm |
