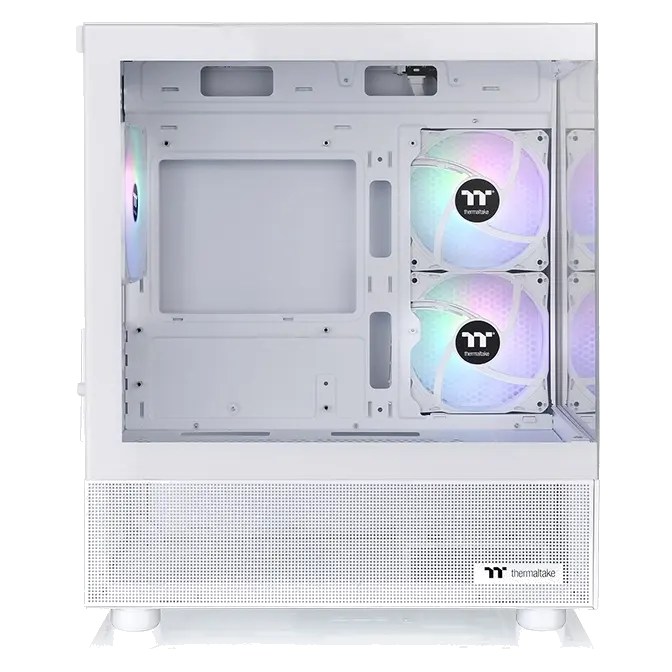

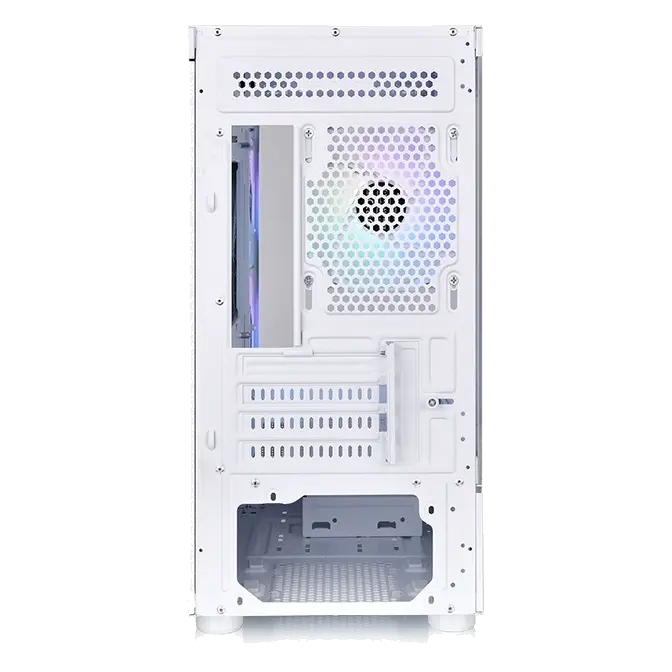

Thermaltake Micro-ATX View 170 TG Snow Case CA-1Z4-00M6WN-00
Web ID: 42098
Case Type: Micro ATX Case
Form Factor: ATX (PSU) || SFX (PSU) || Mini-ITX || Micro-ATX
Colour: White
Cooler Clearance: 160mm (Cooler Clearance)
GPU Max Length: 340mm Max GPU Length
Radiator Size: 120mm Radiator || 140mm Radiator || 240mm Radiator || 280mm Radiator
Interface: 2.5" Drive Bay || 3.5" Drive Bay
USB: 2 x USB 3.0
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: CA-1Z4-00M6WN-00
GTIN: 841163095355
Manufacturer Website
$69
| P/N | CA-1S4-00S6WN-00 |
|---|---|
| SERIES | Divider |
| CASE TYPE | Micro Case |
| DIMENSION (H X W X D) | 426 x 210 x 408.5 mm (16.8 x 8.3 x 16.1 inch) |
| NET WEIGHT | 5.26 kg / 11.6 lbs. |
| PANEL | 3mm Tempered Glass x 1 |
| COLOR | White |
| MATERIAL | SPCC |
| COOLING SYSTEM | Front(intake): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 2 |
| EXPANSION SLOTS | 4 |
| MOTHERBOARDS | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| I/O PORT | USB 3.0 x 2, USB 2.0 x 1, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| FAN SUPPORT | Front: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Top: 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Rear: 1 x 120mm |
| RADIATOR SUPPORT | Front: 1 x 240mm, 1 x 120mm 1 x 280mm, 1 x 140mm Top: 1 x 240mm, 1 x 120mm 1 x 140mm Rear: 1 x 120mm |
| CLEARANCE | CPU cooler height limitation: 160mm VGA length limitation: 300mm(With radiator) 350mm(Without radiator) PSU length limitation: 200mm (With HDD Cage) |
