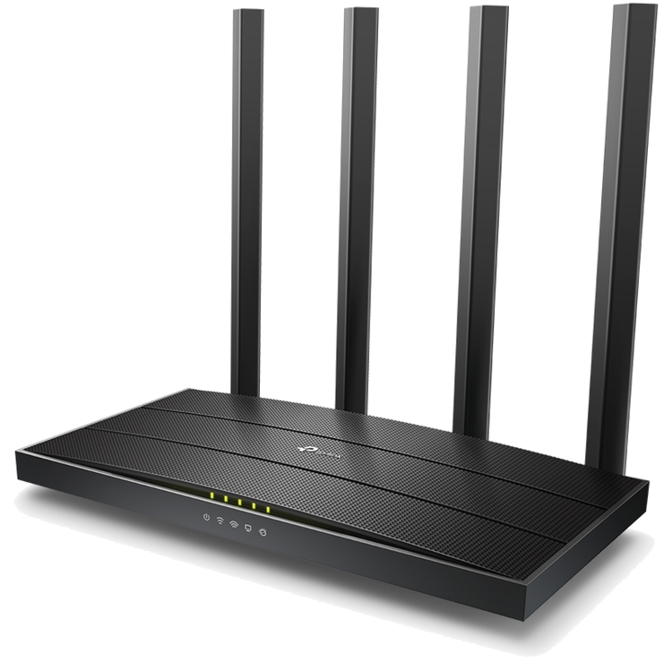

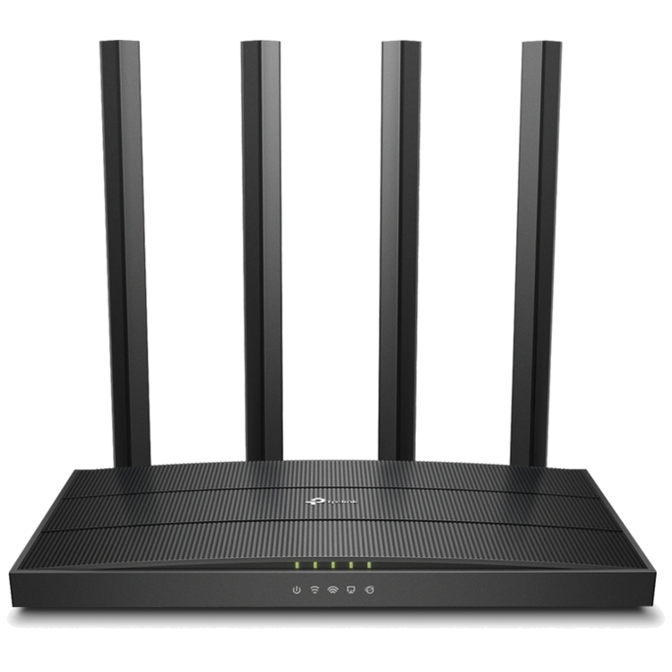

TP-Link Archer A6 Wireless-AC1200 Dual Band Gigabit Router

Web ID: 26070

Supports 802.11ac standard. Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth. 4 external antennas and one internal antenna provide stable wireless connections and optimal coverage. Easy network management at your fingertips with TP-Link Tether. MU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once. Beamforming technology delivers wider wireless coverage. Supports Access Point mode to create a new Wi-Fi access point.
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer A6
GTIN: 6935364086169
Manufacturer Website

Smooth Entertainment with AC1200 Dual Band Wi-Fi

The Archer A6 creates a reliable and blazing-fast network powered by 802.11ac Wi-Fi technology. The 2.4GHz band delivers
speeds up to 300Mbps, ready for everyday tasks like emailing and web browsing, while the 5GHz band delivers speeds up to
867Mbps, ideal for HD video streaming and lag-free online gaming.

  • 300Mbps

    2.4GHz Band

  • 867Mbps

    5GHz Band

5 High-Performance Antennas
Wi-Fi Coverage throughout Your Home

Four external antennas and one internal antenna send Wi-Fi signals to every corner of your home. Stay connected and enjoy fast Wi-Fi whether you are lounging on the sofa or on the balcony. With a powerful chipset, the Archer A6 provides ideal Wi-Fi coverage. The 2.4GHz band coverage is especially impressive, eliminating Wi-Fi dead-zones and beating that of other competing routers.

Better Coverage on 2.4GHz Band

Archer A6

Other AC1200 Router

Boosted speeds 40%

It’s An Access Point, Too

Switch the working mode of the Archer A6 to Access Point Mode to share your wired network with other wireless devices.

tp-link archer a6 wireless-ac1200 dual band gigabit router
  • Router
  • Archer A6

MU-MIMO Matters
Increase Speed, Throughput, Capacity

MU-MIMO lets the Archer A6 serve multiple devices at once. No more bandwidth congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!

  • tp-link archer a6 wireless-ac1200 dual band gigabit router

    Destop

  • tp-link archer a6 wireless-ac1200 dual band gigabit router

    4K HDTV

  • tp-link archer a6 wireless-ac1200 dual band gigabit router

    Computer

  • tp-link archer a6 wireless-ac1200 dual band gigabit router

    Nas

Gigabit Connectivity, 10× Faster

With one Gigabit WAN port and four Gigabit LAN port, speeds can be up to 10× faster than standard Ethernet
connections. Connect your favorite wired devices to the Archer A6 and get impressed!

Easy Setup and Management with the Tether APP

The free Tether app is available for both Android and iOS devices, making it easy to set up the Archer A6 and manage your network settings.

System Requirements Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access)
ENVIRONMENT
Operating Temperature 0?~40? (32? ~104?)
Storage Temperature -40?~70? (-40? ~158?)
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
PACKAGE CONTENTS
Package Contents Wireless Router Archer A6
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
HARDWARE FEATURES

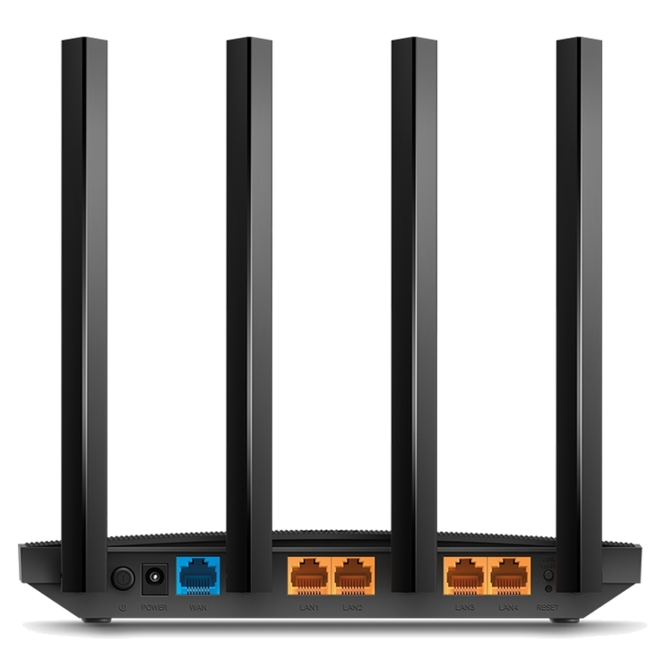

Ports 4*10/100/1000Mbps LAN Ports, 1*10/100/1000Mbps WAN Port
Button Reset Button, Power On/Off Button, WPS/Wi-Fi On/Off Button
Power Supply 12V/1A
Dimensions ( W x D x H ) 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm)
Antenna 4 Fixed External Antennas and 1 Internal Antenna
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
Reception Sensitivity 5GHz:
11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;
11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-65dBm;
11ac HT80 mcs9:-62dBm;
2.4GHz:
11g 54Mbps:-78dBm;
11n HT20 mcs7:-74dBm;
11n HT40 mcs7:-71dbm;
Transmit Power CE EIRP: <20dBm(2.4GHz); <23dBm(5GHz)
FCC EIRP: <30dBm(2.4GHz); <30dBm(5GHz)
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics
Wireless Security 64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
SOFTWARE FEATURES
WAN Type Dynamic IP, Static IP, PPPoE, PPTP (Dual Access), L2TP (Dual
Access), BigPond
Management Access Control, Local Management, Remote Management
DHCP Server, DHCP Client List, Address Reservation
Port Forwarding Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, NO-IP
Access Control Parental Controls, Local Management Control, Host List, White List, Black List
Firewall Security DoS, SPI Firewall, IP and MAC Address Binding
Protocols IPv4, IPv6
Guest Network 2.4GHz guest network, 5GHz guest network
VPN Server OpenVPN,PPTP VPN
