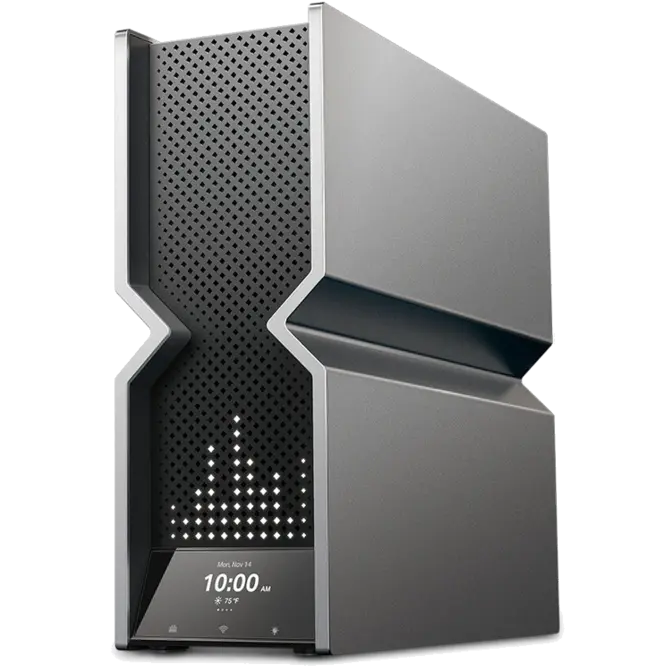

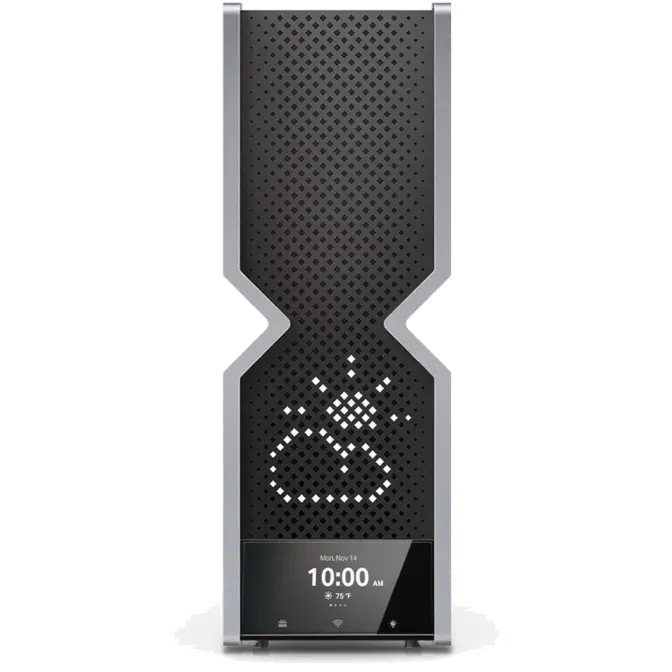

TP-Link Archer BE900 BE24000 Quad-Band Wi-Fi 7 Router
Web ID: 42169
Redefining Wi-Fi Routers: With powerful Wi-Fi 7 performance, lightning-fast wired connections, brand-new design, and easy-to-use touchscreen and LED screen.
Lightning-Fast 24.4 Gbps Quad-Band Wi-Fi 7: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and unbelievably fast downloads.
Dual 10G Ports: 1 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1 10 Gbps WAN/LAN port + 4 2.5 Gbps ports + 1 1 Gbps port + 2 USB ports ensure max flexibility and boosted throughput.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer BE900
Manufacturer Website
$1499
| WIRELESS | |
|---|---|
| WiFi Speeds | BE24000 • 6 GHz: 11520 Mbps (802.11be) • 5 GHz-1: 5760 Mbps (802.11be) • 5 GHz-2: 5760 Mbps (802.11be) • 2.4 GHz: 1376 Mbps (802.11be) *The 160MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions. |
| WiFi Range | 4 Bedroom Houses
12× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas Beamforming Concentrates wireless signal strength towards clients to expand WiFi range High-Power FEM Improves transmission power to strengthen signal coverage |
| WiFi Capacity | Very High
Quad-Band Allocate devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple clients Airtime Fairness Improves network efficiency by limiting excessive occupation DFS Access an extra band to reduce congestion 16 Streams Connect your devices to more bandwidth |
| Working Modes | • Router Mode • Access Point Mode |
| Advanced Functions | • 320 MHz Channel • 4K-QAM • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network |
| SECURITY | |
|---|---|
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway • HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz-1 Guest Network • 1× 5 GHz-2 Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP VPN Server • WireGuard VPN Server |
| VPN Client | • Open VPN Client • PPTP VPN Client • L2TP VPN Client • WireGuard VPN Client |
| WiFi Encryption | • WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x) |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 10 Gbps WAN/LAN • 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN • 4× 2.5 Gbps LAN • 1× 1 Gbps LAN |
| USB Support | 1× USB 3.0, 1× USB 2.0 • Supported Partition Formats: NTFS, exFAT, HFS+, FAT32 • Supported Functions: FTP Server Media Server Samba Server |
| Buttons | • Power On/Off Button • Wi-Fi On/Off Button (Touchscreen) • LED On/Off Button (Touchscreen) • WPS Button (Touchscreen) • Reset Button |
| Power | 15 V ? 5 A |
| Touchscreen | Yes |
| LED Screen | Yes |
| SOFTWARE | |
|---|---|
| Protocols | • IPv4 • IPv6 |
| Service Kit | HomeShield Learn More> |
| EasyMesh | Compatible with EasyMesh |
| Parental Controls | HomeShield Parental Controls
Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP • L2TP |
| Quality of Service | QoS by Device |
| Cloud Service | • Auto Firmware Upgrade • TP-Link ID • DDNS |
| NAT Forwarding | • Port Forwarding • Port Triggering • DMZ • UPnP |
| IPTV | • IGMP Proxy • IGMP Snooping • Bridge • Tag VLAN |
| DHCP | • Address Reservation • DHCP Client List • Server |
| DDNS | • TP-Link • NO-IP • DynDNS |
| Management | • Tether App • Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | CE, FCC, RoHS |
| Environment | • Operating Temperature: 0?~40? (32? ~104?) • Operating Humidity: 10%~90% non-condensing |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 3.8 × 11.9 × 10.3 in (96 × 302 × 262.5 mm) |
| Package Contents | • Wi-Fi 7 Router Archer BE900 • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
