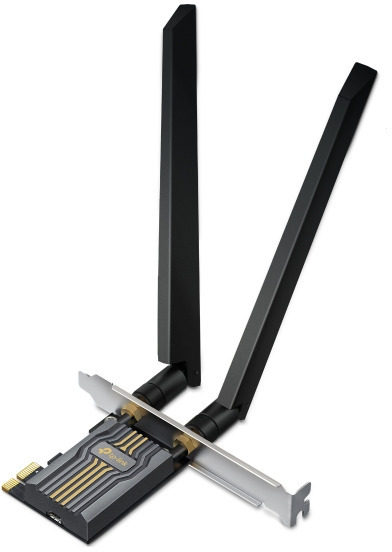

TP-Link Archer TBE400E BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Web ID: 44240
PLEASE NOTE: Requires Windows 11.
- Unparalleled Tri-Band Speed Boost your overall speeds up to 2882 Mbps (6 GHz) + 2882 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
- Wi-Fi 7 Standard Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation
- Reliable Bluetooth 5.4 Security and reliability improvement than last-gen high-speed Bluetooth 5.3
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer TBE400E
Manufacturer Website
$89
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 4.8 × 3.09 × 0.85 in (120.8 ×78.5 ×21.5 mm) |
| Antenna Type | 2× High-Performance Tri-Band Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
| WLAN Signal Rate | 6 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up t0 2402Mbps(dynamic) 5 GHz: 11be: Up to 2882 Mbps(dynamic) 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11be: Up to 688 Mbps(dynamic) 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44dBm 5 GHz: 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48dBm 2.4 GHz: 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56dBm |
| WLAN Transmit Power | 2.4 GHz: 24dBm(FCC) (EIRP)/ 20dBm(CE) (EIRP) 5 GHz: 24dBm(FCC) (EIRP) /20dBm(CE) (EIRP) 6 GHz: 20dBm(FCC) (EIRP) /20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | FCC/CE/IC/NCC/JRF/VCCI/BSMI |
| Package Contents | Archer TBE400E 2x High-Performance Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Supported operating system: Windows 11(64-bit) only |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Bluetooth Header Cable Length: 0.3 m |
