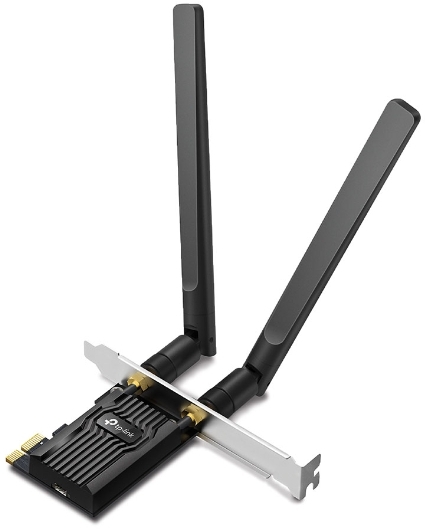

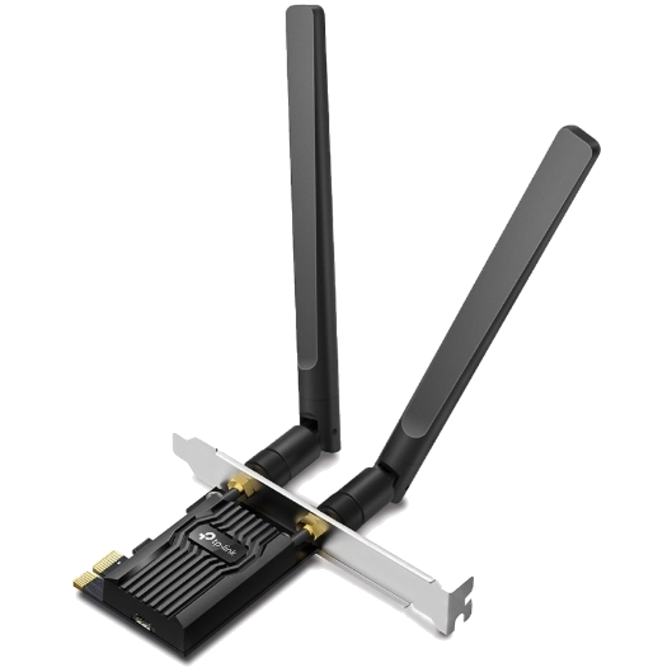

TP-Link Archer TX20E Wireless-AX1800 and Bluetooth PCIe Network Card
Web ID: 35698
Unrivalled Wi-Fi 6 SpeedBreaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Wider Signal Coverage Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
Bluetooth 5.2The latest Bluetooth technology achieves 2 Faster Speed and 4 Broader Coverage than BT 4.2
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer TX20E
GTIN: 4897098688809
Manufacturer Website
$44SAVE $5
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Realtek Wi-Fi 6 Chipset |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
| WLAN Signal Rate | 5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX20E Two High-Gain Dual Band Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Windows 11/10(64-bit) only |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
