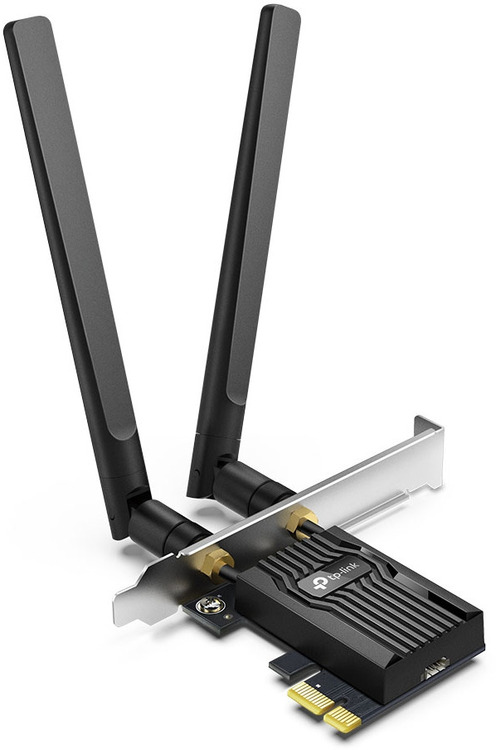

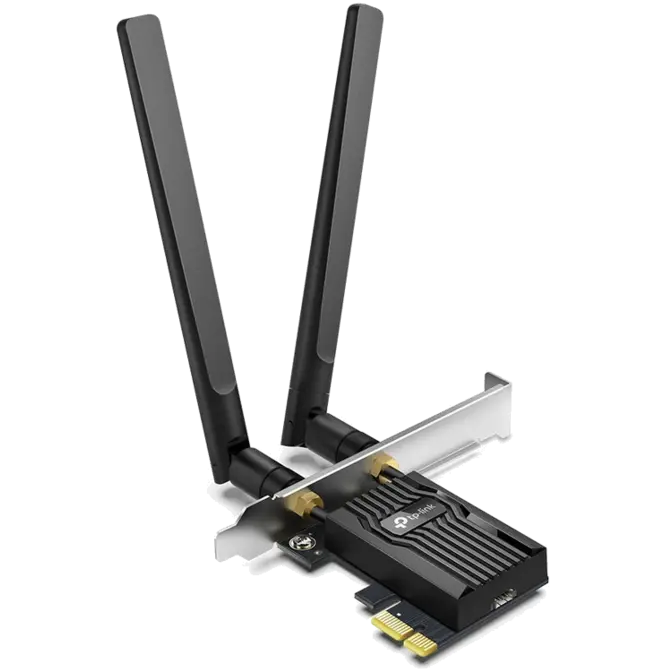

TP-Link Archer TX55E Wireless-AX3000 and Bluetooth PCIe Network Card
Web ID: 40165
Unrivalled Wi-Fi 6 Speed, Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
Manufacturer Warranty: 3 Year
Manufacturer PN: Archer TX55E
Manufacturer Website
$69
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 2.4 x 1.4 x 0.45 in (55 x 36 x 11.5 mm) |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Intel Wi-Fi 6 Chipset |
| BLUETOOTH FEATURES | |
|---|---|
| Standards and Protocols | Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 |
| Interface | F_USB 2.0 |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2/5.0/4.2/4.0 |
| WLAN Signal Rate | 5 GHz 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1733 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 5 GHz : 11ax HT160:-56.25dBm 11ax HT80: -59dBm 11ax HT40: -62.25dBm 11ax HT20: -65dBm 11ac HT160:-62dBm 11ac HT80: -65.5dBm 11ac HT40: -69.75dBm 11ac HT20: -73.75dBm 11n HT40: -74.5dBm 11n HT20: -77.5dBm 11a 54Mbps: -77.75dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HT40: -60.75dBm 11ax HT20: -63.75dBm 11n HT40: -73dBm 11n HT20: -76.25dBm 11g 54Mbps: -76.5dBm 11b 11Mbps: -89dBm |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | Archer TX55E Two High-Gain Antennas Low-Profile Bracket Standard Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Windows 10(64-bit) only |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
