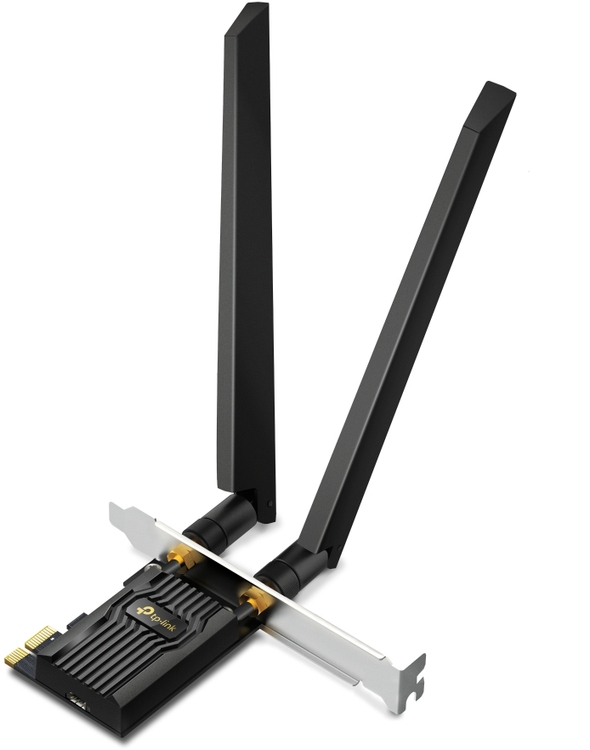

TP-Link Archer TXE72E AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Web ID: 43359
Unparalleled Tri-Band Speed Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
WiFi 6E Standard Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.
Wider Signal Coverage Two multi-directional antennas are designed for optimal signal reception
Bluetooth 5.3 Security and reliability improvement than last-gen high-speed Bluetooth 5.2
Improved Security The latest security enhancement, WPA3, provides enhanced protection in personal password safety
Reliably Engineered The gold plating improve stability and performance even at high CPU temps
Backward Compatibility Full support for 802.11ax/ac/a/b/g/n standards
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 1 Year
Manufacturer PN: Archer TXE72E
Manufacturer Website
| HARDWARE FEATURES | |
|---|---|
| Dimensions | 2.2 × 1.4 × 0.4 in (55 × 36 × 11.5 mm) |
| Antenna Type | 2× High-Gain Tri-Band Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| WLAN Signal Rate | 6 GHz: 11ax: Up tp 2402Mbps 5 GHz: 11ax: Up to 2402 Mbps(dynamic) 11ac: Up to 1732 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz: 11ax: Up to 574 Mbps(dynamic) 11n: Up to 400 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE160 MCS0:-86 11ax HE160 MCS11:-56 5 GHz: 11ax HE80 MCS0: -90 dBm 11ax HE80 MCS11: -59 dBm 11a 54Mbps: -77 dBm 11ac VHT80 MCS0: -92dBm 11ac VHT80 MCS9: -64dBm 2.4 GHz: 11ax HE40 MCS0: -91 dBm 11ax HE40 MCS11: -60 dBm 11g 54Mbps: -76 dBm 11n HT40 MCS7: -72dBm |
| WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP) 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP) 6 GHz: 12dBm(FCC) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | Archer TXE72E 2× High-Gain Antennas Low-Profile Bracket Bluetooth Header Cable Quick Installation Guide Resource CD |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit). Currently 6 GHz Band only supported on Windows 11. |
| Environment | Operating Temperature: 0?~40? (32? ~104?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | Bluetooth Header Cable Length: 0.3m |
