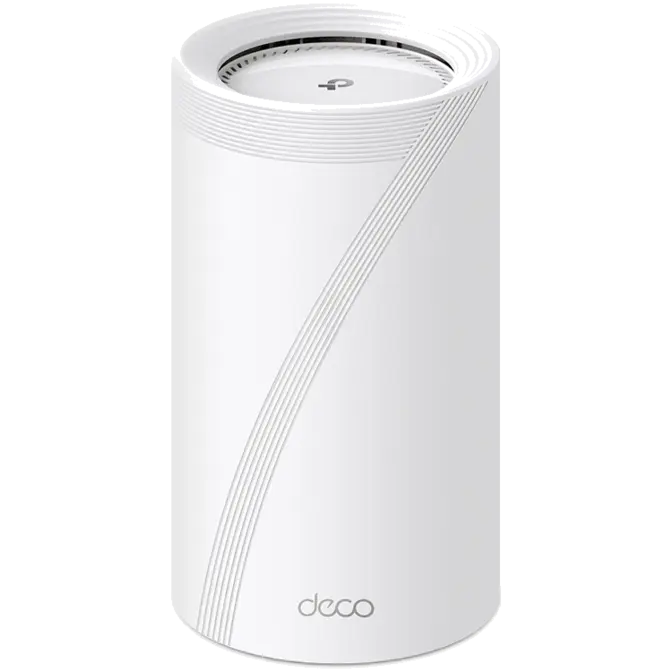

TP-Link Deco BE85 Wireless-BE22000 Whole Home Mesh System
Web ID: 38038
12-Stream 22 Gbps Tri-Band WiFi 11520 Mbps (6 GHz) + 8640 Mbps (5 GHz)* + 1376 Mbps (2.4 GHz).
Unprecedented 10 Gbps Network 1 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1 10 Gbps WAN/LAN port + 2 2.5 Gbps ports ensure max flexibility and boosted throughput.
Wireless and Wired Combined Backhaul Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
Multi-Link Operation (MLO) Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.
320 MHz Channels Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
Works on the 6 GHz Band Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
TP-Link HomeShield Provides comprehensive network protection, robust parental controls, and real-time IoT security.
Universal Compatibility Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: Deco BE85 1-pack
GTIN: 4897098686942
Manufacturer Website
| WIRELESS | |
|---|---|
| Standards | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
| WiFi Speeds | BE22000 6 GHz: 11520 Mbps (802.11be) 5 GHz: 8640 Mbps (802.11be)* 2.4 GHz: 1376 Mbps (802.11be) * The 240MHz bandwidth may be unavailable in the 5G band in Australia due to regulatory restrictions. |
| WiFi Range | Broader Whole Home Coverage
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage AI-Driven Mesh Intelligently learns the network environment to provide ideal Wi-Fi unique to your home 8× High-Gain Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas Tri-Band The greenfield 6 GHz band brings more bandwidth and faster speeds |
| WiFi Capacity | Very High
Tri-Band Distribute devices to different bands for optimal performance 4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 7 clients 12 Streams More than enough bandwidth for connected devices |
| Working Modes | Router Mode Access Point Mode |
| Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • Works with Alexa and Google Assistant |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
| Guest Network | 1× 6 GHz Guest Network 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network Effective Time Bandwidth Control |
| VPN Server | • OpenVPN Server • PPTP VPN Server • L2TP/IPSec VPN Server |
| VPN Client | • OpenVPN Client • PPTP VPN Client • L2TP/IPSec VPN Client |
| WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
| HARDWARE | |
|---|---|
| Ethernet Ports | • 1× 10 Gbps • 1× 10 Gbps SFP+/RJ45 Combo • 2× 2.5 Gbps *Per Deco Unit Supports WAN/LAN auto-sensing |
| USB Support | 1× USB 3.0 Port
FTP Server Media Server Apple Time Machine Samba Server |
| Buttons | 1× Reset Button 1× WPS |
| SOFTWARE | |
|---|---|
| Advanced Features | • Reboot Schedule • Tapo/Kasa Onboarding • IoT network & Device Isolation • Static Route Function • Node/Band Connection Preference |
| Protocols | IPv4 IPv6 |
| Service Kits | HomeShield Learn More> |
| Parental Controls | HomeShield Parental Controls
Youtube Restriction SafeSearch Custom Profiles Professional Content Filter Library Family Time Bedtime Off Time Time Rewards Family Online Time Ranking Pause the Internet Weekly and Monthly Reports |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | HomeShield QoS
QoS by Device |
| Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
| NAT Forwarding | Port Forwarding UPnP |
| IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP-Link |
| Management | Deco App |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
| Package Contents | Deco BE85 (3-pack) 3 Deco BE85 units 1 RJ45 Ethernet cable 3 Power adapters Quick Installation Guide Deco BE85 (2-pack) 2 Deco BE85 units 1 RJ45 Ethernet cable 2 Power adapters Quick Installation Guide Deco BE85 (1-pack) 1 Deco BE85 unit 1 RJ45 Ethernet cable 1 Power adapter Quick Installation Guide |
| OTHERS | |
|---|---|
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
