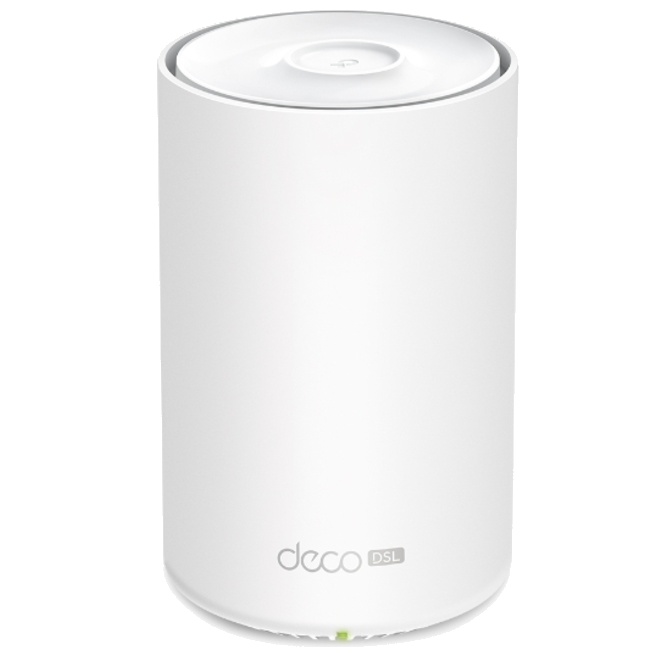

TP-Link Deco X50-DSL VDSL AX3000 Whole Home Mesh Modem Router
Web ID: 39990
VDSL Modem Router + Mesh WiFi, Save a modem, and gain a better WiFi experience
Super VDSL2 Speed, Supports Profile 35b tech to deliver downstream up to 350 Mbps
Superior WiFi 6 speeds up to 3.0 Gbps, 2402 Mbps (5 GHz) and 574 Mbps (2.4 GHz) dual-band WiFi with WiFi 6 technology
Fully Gigabit Ethernet, 4x Gigabit WAN/LAN Ethernet ports provide flexible internet access at warp speed
TP-Link HomeShield, Real-time IoT and network protection, robust Parental Controls, and comprehensive reports
True Seamless Roaming Mesh WiFi, Walk through your home and stay connected with the fastest possible speeds
Manufacturer Warranty: 1 Year
Manufacturer PN: Deco X50-DSL(1-pack)
GTIN: 4897098687864
Manufacturer Website
WIRELESS | |
---|---|
Standards | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |
WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
WiFi Range | 1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage 2× Antennas (Internal) Multiple antennas form a signal-boosting array to cover more directions and large areas |
WiFi Capacity | High
Dual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients 4 Streams More than enough bandwidth for connected devices |
Working Modes | DSL (only on Deco X50-DSL) Router Access Point |
SECURITY | |
---|---|
Network Security | SPI Firewall Access Control HomeShield Security Real-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
WiFi Encryption | WPA-Personal WPA2-Personal WPA3-Personal |
HARDWARE FEATURES | |
---|---|
VDSL2 Standards | ITU G.993.2, Up to 35b profile (POTS) ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) |
ADSL2 Standards | ITU-T G.992.3 (G.DMT.bis) |
ADSL2+ Standards | ITU-T G.992.5 |
HARDWARE | |
---|---|
Ethernet Ports | 4× Gigabit Ports Per Deco X50-DSL Unit Supports WAN/LAN auto-sensing |
Buttons | RESET Button |
Ports and Connections | 1 DSL Port Compatibility VDSL2 / ADSL2+ / ADSL2 / ADSL |
SOFTWARE | |
---|---|
Protocols | IPv4 IPv6 |
Service Kits | HomeShield Learn More> |
WAN Types | Dynamic IP Static IP PPPoE L2TP PPTP PPPoA IPoA DS-Lite |
Quality of Service | HomeShield QoS
QoS by Device |
Cloud Service | OTA Firmware Upgrade TP-Link ID DDNS |
NAT Forwarding | Port Forwarding UPnP |
IPTV | IGMP Proxy IGMP Snooping Bridge Tag VLAN |
DHCP | Address Reservation DHCP Client List Server |
DDNS | TP-Link |
Management | Deco App |
TEST DATA | |
---|---|
WiFi Transmission Power | CE: ≤20 dBm (2.4GHz) ≤23 dBm (5GHz) |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | Deco X50-DSL: 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
Package Contents | 1-pack 1 Deco X50-DSL Unit 1 RJ45 Ethernet Cable 2 RJ11 DSL Cables 1 External DSL Splitter 1 Power Adapter Quick Installation Guide |
OTHERS | |
---|---|
Certification | Deco X50-DSL: CE, RCM, RoHS |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~60°C (-40°F~140°F) Operating Humidity: 10%~90%RH Storage Humidity: 5%~90%RH |
