TP-Link EAP615-Wall AX1800 Wall Plate WiFi 6 Access Point PoE
Web ID: 31839
Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.**
High-Performance Connectivity: Guarantee higher network efficiency and lower latency.

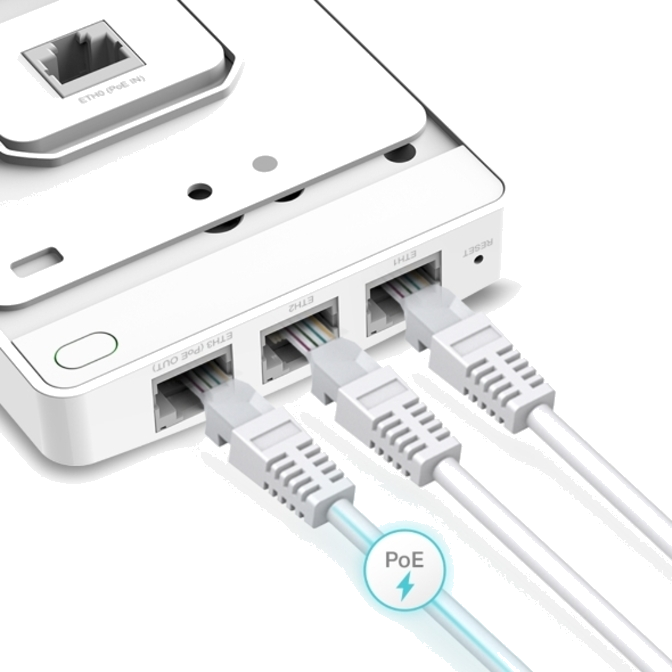

Four Gigabit Ports: 4 Gigabit Ethernet ports (1 uplink + 3 downlink), with one downlink port supporting PoE pass-through to provide power for wired devices.
Centralised Management:Integrates into Omada SDN for cloud access and remote management.
Secure Guest Network: Support both standard 802.3af/at and Passive PoE (5 pack PoE adapter sold separately.) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3
Manufacturer Warranty: 3 Year
Manufacturer PN: EAP615-Wall
GTIN: 4897098683606
Manufacturer Website
| Interface | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
|---|---|
| Physical Security Lock | Yes |
| Button | Reset |
| Power Supply | 802.3af/at PoE |
| Power Consumption | EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Mounting | Wall Plate Mounting |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Wireless Functions | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall • Installation Guide • Mounting Kits |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
*Use of WiFi 6 (802.11ax) and features including OFDMA and MU-MIMO requires client devices to support the corresponding features.
**Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed. They will vary due to factors including network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
†Seamless roaming may require upgrading the firmware.
‡PoE pass-through is only available when 802.3at powers the device. The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing. Actual power delivered to the device may vary.
