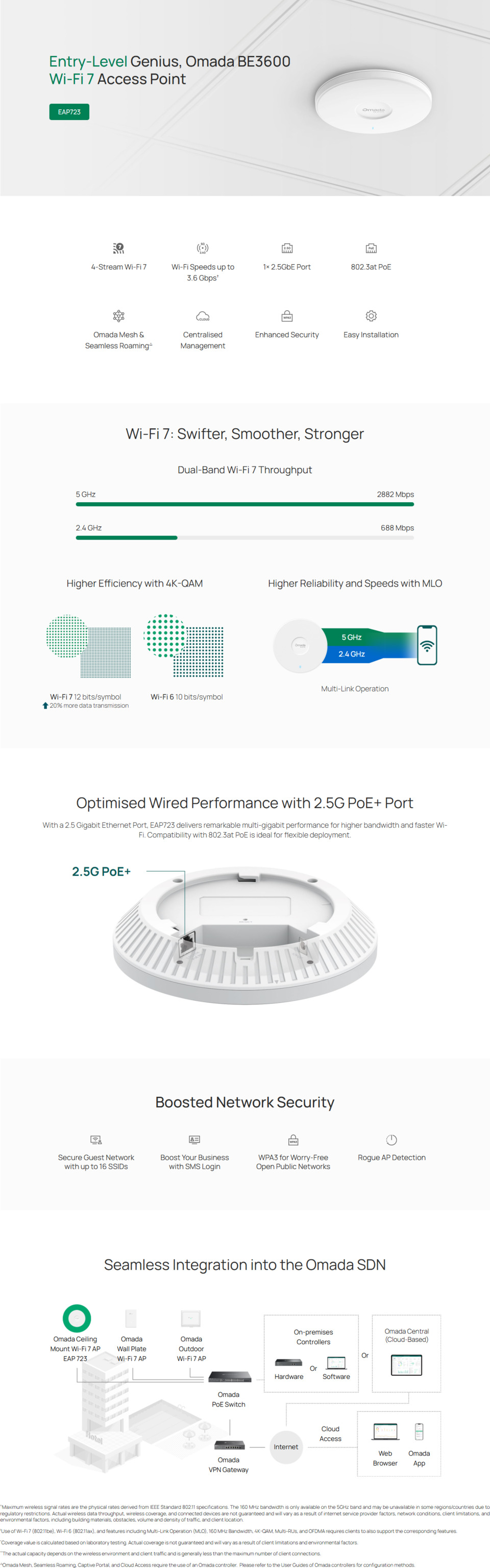

TP-Link EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point
Web ID: 43462
- BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).
- 1 2.5G port unlocks the full potential of Wi-Fi 7.
- 160 MHz bandwidth enables many more simultaneous transmissions.
- Multi-RUs ensure the high performance of your network.
- Advanced Functions: Centralised management, Mesh, and Seamless Roaming.
Manufacturer Warranty: 5 Year
Manufacturer PN: EAP723
Manufacturer Website
$229
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Power Consumption | • 18.6 W (For PoE); • 16.0 W (For DC) |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna Type | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi |

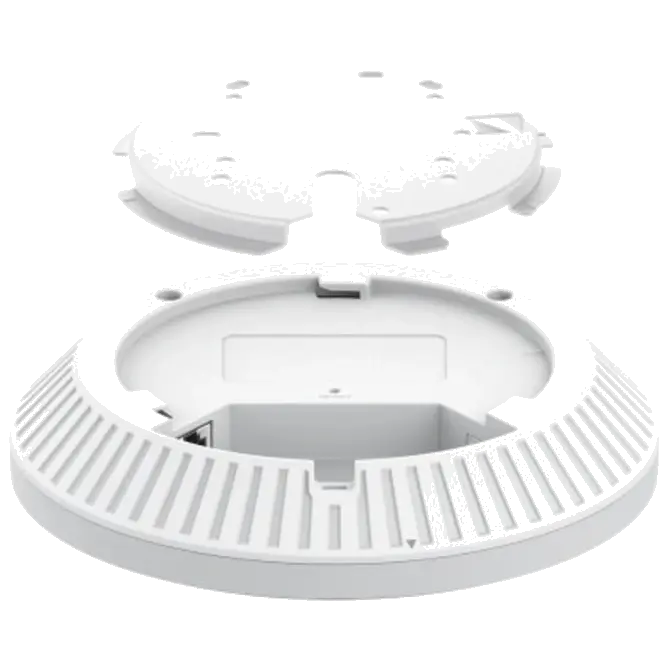

| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140?(1500 ft²)*** |
| Wireless Client Capacity | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | • 4K-QAM‡ • Seamless Roaming • MU-MIMO‡ • EHT160‡ • Mesh? • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication? • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP723 • Installation Guide • Ceiling/Wall Mounting Kit |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
