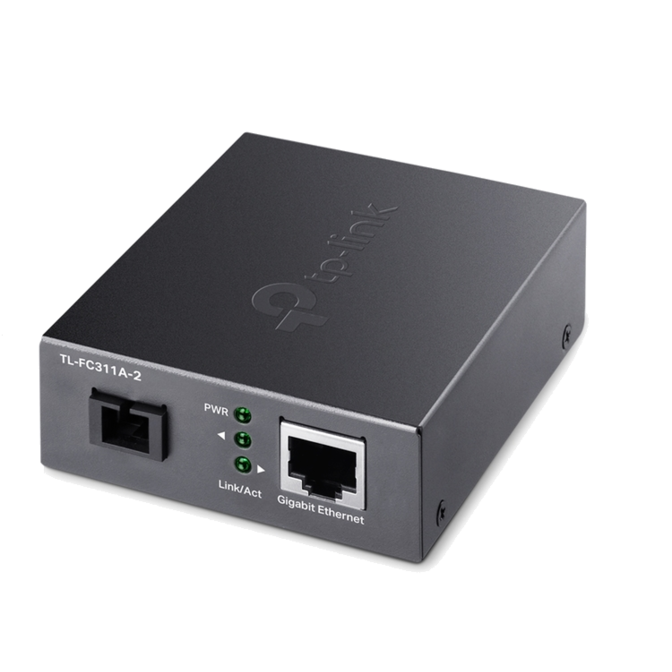

TP-Link FC311A-2 Gigabit WDM Media Converter
Web ID: 40207
1 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 2 km
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: FC311A-2
Manufacturer Website
What This Product Does
TL-FC311A-2 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as remote video surveillance system and wireless networking.
How This Product Works
TL-FC311A-2 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 2 km with only one single mode fiber, which saves half of the cable deployment cost for customers compares to dual-fiber deployment. TL-FC311A-2 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-2 is one of the products that can cooperate with TL-FC311A-2.
Other Features
Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |
| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Dimensions ( W x D x H ) | 3.7 × 2.9 × 1.1 in (94.5×73.0×27.0 mm) |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 μm single-mode fiber (2 km max.) |
| OTHERS | |
|---|---|
| Package Contents | • Media Converter TL-FC311A-2 • Power Adapter • Installation Guide |
