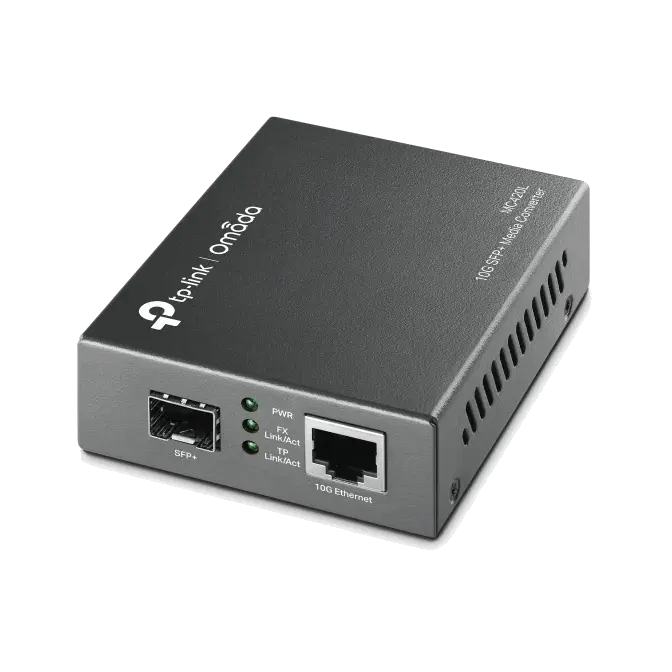

TP-Link MC420L Omada 10G Multi-Gigabit SFP Media Converter
Web ID: 42430
1 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
FX port supports hot-swappable
Maximum transmission distance depends on the inserting SFP
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 1 Year
Manufacturer PN: MC420L
Manufacturer Website
What This Product Does
The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x |
|---|---|
| Basic Function | • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode • Maximum transmission distance depends on the inserting SFP module |
| Ports | • 1× SFP+ port • 1× 1G/2.5G/5G/10Gbps RJ45 port |
| Wave Length | Depends on the used SFP module |
| Network Media 10GBASE-R | Multi-mode/Single-mode SFP+ module |
| Network Media 10GBASE-T | 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m); 10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 4.12W |
| Safety & Emission | UL, RoHS |
| Package Contents | • MC420L • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0?~50? (32?~122?) • Storage Temperature: -40?~70? (-40?~158?) • Operating Humidity: 10%RH~90%RH Non-condensing • Storage Humidity: 5%RH~90%RH Non-condensing |
