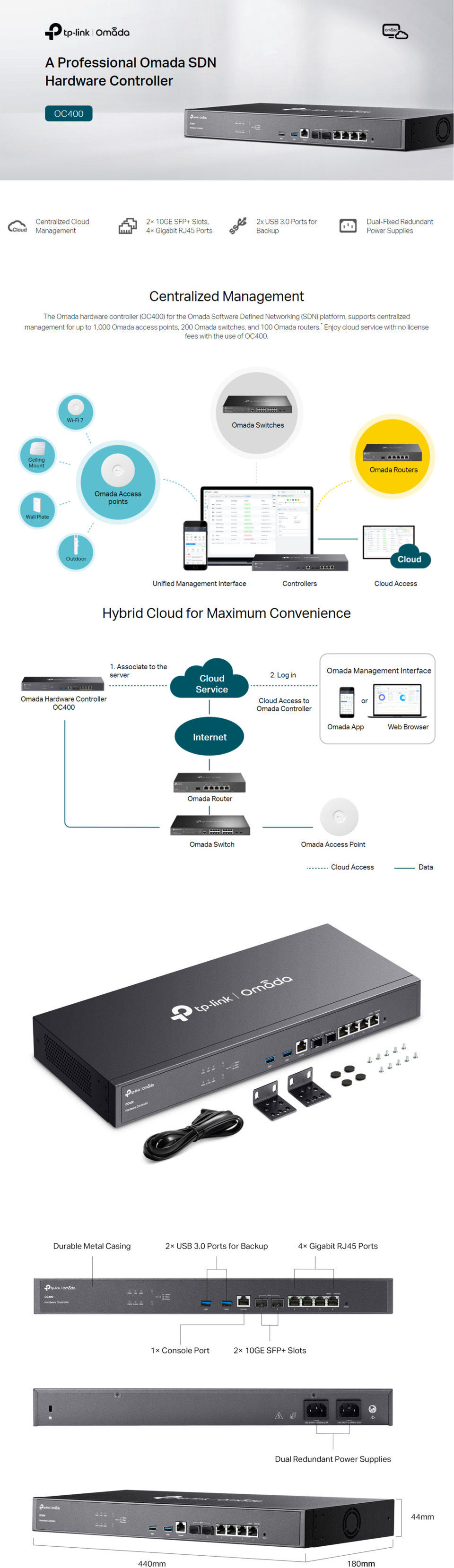

TP-Link OC400 Omada Hardware Controller
Web ID: 40170
Centralized Management: for up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers.
2 10GE SFP+ Slots, 4 GE RJ45 Ports, and 2 USB 3.0 Ports.
Redundant power supplies offer a reliable networking architecture.
Free cloud access with the Omada app or Web UI from anywhere, anytime.
On-premises manages to locally monitor and manage devices.
The easy-to-use dashboard and real-time network topology make network monitoring easy.
Batch and multi-site management benefit network maintenance.
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: OC400
Manufacturer Website
$599
| HARDWARE FEATURES | |
|---|---|
| Processor | Quad-Core CPU |
| Memory | 4 MB Nor Flash; 32 GB eMMC; 8 GB DDR4 |
| Interface | • 2× 10G SFP+ Ports • 4× GE RJ45 Ports • 2× USB 3.0 Ports • 1× GE Console Port |
| Fan Quantity | 1 |
| Button | • 1× Reset |
| Power Supply | 100-240 V ~ 50/60 Hz AC |
| Dimensions | 17.3 × 7.1 × 1.7 in (440×180×44 mm) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Up to 1,000 Omada access points, 200 Omada switches, and 100 Omada routers* • Up to 30,000 clients *Refer to www.tp-link.com/en/business-networking/all-omada/ to find all the models supported by OC400 |
| Cloud Access | Yes |
| Multi-site Management | Yes |
| Management Features | • Multi-tenant Management (Role/Site/Device Privileges) • Migration (Site Migration/Controller Migration) • Account Management • Backup & Restore • Auto Backup • Customized UI Interface • Automatic Device Discovery • Batch Configuration • Online upgrade • Reboot Schedule • PoE Schedule • WLAN Schedule • Batch Firmware Upgrading • DDNS • SNMP • SSH |
| REDUNDANT POWER SUPPLY | |
|---|---|

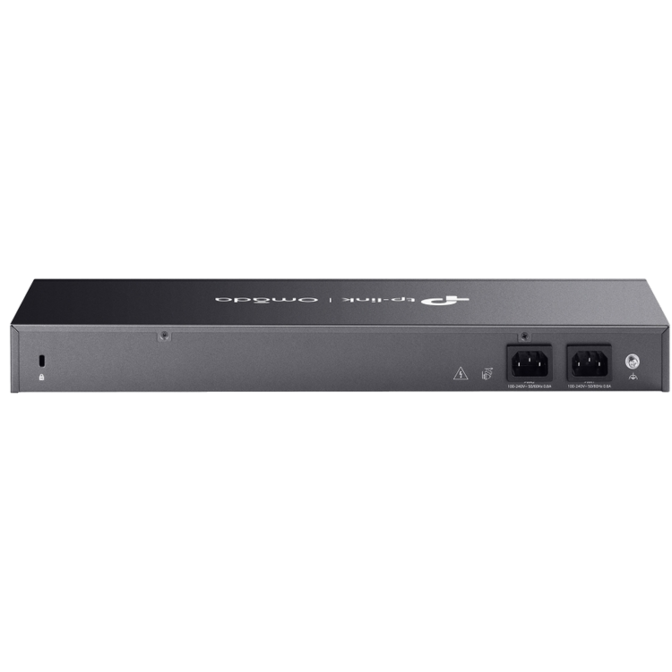

| Redundant Power Supply | 2× Internal Fixed Power Supplies |
| MONITORING | |
|---|---|
| Monitoring | • Custom Dashboard • Statistics (Performance/Switch Stats) • Network topology • Network Map • Devices List • Clients List • Insights • Logs |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • Omada Hardware Controller OC400 • Quick Installation Guide • Ethernet Cable • Power Cord • Rackmount Kit |
| System Requirements | Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
