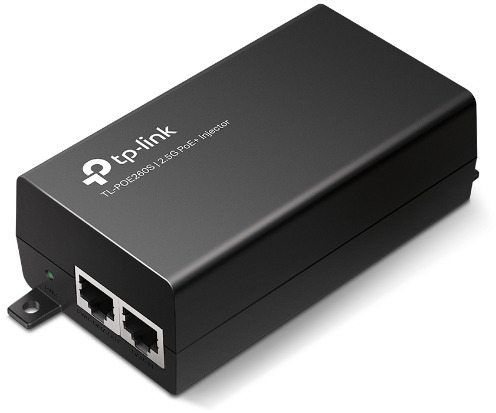

TP-Link Omada 2.5G PoE+ Injector POE260S
Web ID: 39976
2*2.5 Gbps ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation, requires no configuration
Integrated power supply
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: POE260S
GTIN: 4895252502220
Manufacturer Website
What This Product Does
The 2.5G PoE+ Injector TL-POE260S fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or other equivalent products, to expand your network to where there are no power line or outlet, where you wish to fix device such as 2.5G AP, HD IP Camera or IP Phone, etc.
NETWORK | |
---|---|
Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3bz, IEEE802.3af, IEEE802.3at |
GENERAL | |
---|---|
Certification | FCC, CE, RoHS |
Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
PACKAGE CONTENTS | |
---|---|
Package Contents | • 2.5Gbps PoE+ Injector TL-POE260S • Installation Guide • Power Cord • RJ45 Cable • Wall Mounting Kits |
HARDWARE FEATURES | |
---|---|
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) • 2.5GBASE-T: UTP category 5e or above cable(maximum 100 m) |
Ports | • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 data-in port • 1 10 Mbps /100 Mbps /1Gbps / 2.5Gbps RJ45 power+data-out port • 1 AC socket |
Power Consumption | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
LED Indicator | ON: Supplying power normally OFF: No power supply |
Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
