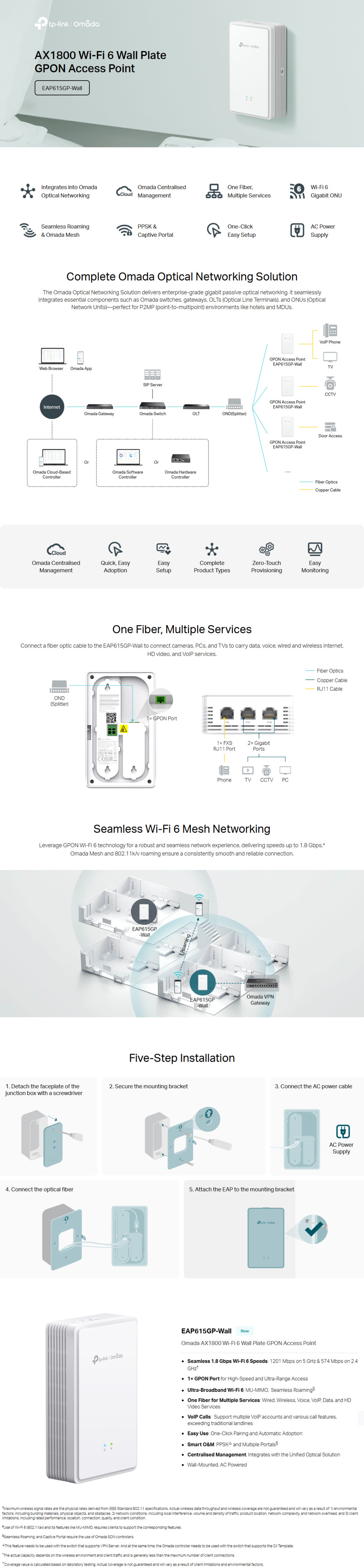

TP-Link Omada AX1800 Wi-Fi 6 Wall Plate GPON Access Point
Web ID: 44723
Seamless 1.8 Gbps Wi-Fi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
1 GPON Port for High-Speed and Ultra-Range Access
Ultra-Broadband Wi-Fi 6: MU-MIMO, Seamless Roaming
One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
VoIP Calls: Support multiple VolP accounts and various call features, exceeding traditional landlines
ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: EAP615GP-Wall
Manufacturer Website
$179
| HARDWARE FEATURES | |
| Interface | • 1x GPON Port |
| • 1x FXS Port | |
| • 2x Gigabit RJ45 Ports | |
| GPON Interface | • Port Type: SC-APC |
| • Standards and Protocols: ITU-984.x, G.988, Class B+ | |
| • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream) | |
| • Fiber Type: 9/125 um Single mode | |
| • Max. Cable Length: 20 km | |
| Button | • Reset |
| • LED | |
| Power Supply | 100–240V~ 50/60Hz, 0.5A |
| Power Consumption | 12.2W |
| Weight | 320g |
| Dimensions ( W x D x H ) | 5.6 × 3.4 × 1.5 in (143 × 86 × 37.6 mm) |
| Antenna Type | Internal Omni |
| • 2.4 GHz: 2× 4 dBi | |
| • 5 GHz: 2× 6.5 dBi | |
| Mounting | Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Coverage | 50?(600ft²)** |
| Concurrent Clients | 120+* |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 1201 Mbps† |
| • 2.4 GHz: 574 Mbps | |
| Wireless Functions | • 2×2 (2.4G & 5G) MU-MIMO‡ |
| • HE80 (80 MHz Bandwidth)‡ | |
| • OFDMA‡ | |
| • Seamless Roaming § | |
| • Multiple SSIDs (16 SSIDs, 8 on each band) | |
| • Enable/Disable SSID Broadcast | |
| • Enable/Disable Wireless Radio | |
| • Guest Network | |
| • Automatic Channel Assignment | |
| • Beamforming | |
| • Rate Limit | |
| • Band Steering | |
| • Load Balance | |
| • Airtime Fairness | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS (WMM) | |
| • RADIUS Accounting | |
| • MAC Authentication | |
| • Reboot Schedule | |
| • Wireless Schedule and Statistics | |
| • Static IP/Dynamic IP | |
| Wireless Security | • Captive Portal Authentication§ |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • VLAN | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, band1 & band2, EIRP) | |
| <24 dBm(5 GHz, band3, EIRP) | |
| • FCC: | |
| <21 dBm (2.4 GHz) | |
| <21 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300, OC200) |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | System Log |
| SSH | Yes |
| Web-based Management | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP615GP-Wall |
| • Wall Mounting Kit | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?) |
| • Storage Temperature: -40–70 ? (-40–158 ?) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
