TP-Link Omada EAP225-Outdoor AC1200 Wireless Outdoor Access Point
Web ID: 25514
Durable, weatherproof enclosure for outdoor Wi-Fi applications, Up to 1200Mbps with 22 MIMO technology, Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient, Supports Seamless Roaming so even video streams and voice calls are unaffected as users move between locations, High transmission power and high gain antennas provide a long-range coverage area, Free cloud centralized management and Omada app for ultra convenience and easy management, Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies, 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer Warranty: 1 Year
Manufacturer PN: EAP225-Outdoor
GTIN: 6935364083571
Manufacturer Website
Omada Mesh Technology
Intelligent Self-organization
Omada EAPs with Mesh Technology, automatically choose the best route to extend your Wi-Fi further and more flexibly.
Self-healing
If one link has an issue, the system will automatically reroute data via the other Omada devices to make sure you stay online.
Seamless Roaming
802.11k and 802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
With seamless roaming
Auto switch to optimal signal
Specially Designed Weatherproof Enclosure for
Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
4KV Lightning Protection and 15KV ESD Protection
No Ingress of Dust
- Water Proof Enclosure
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Omni MIMO Antennas
Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
215mm
138mm
Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.
Gigabit Ethernet Port 802.3af PoE/24V Passive PoE
Flexible Deployment

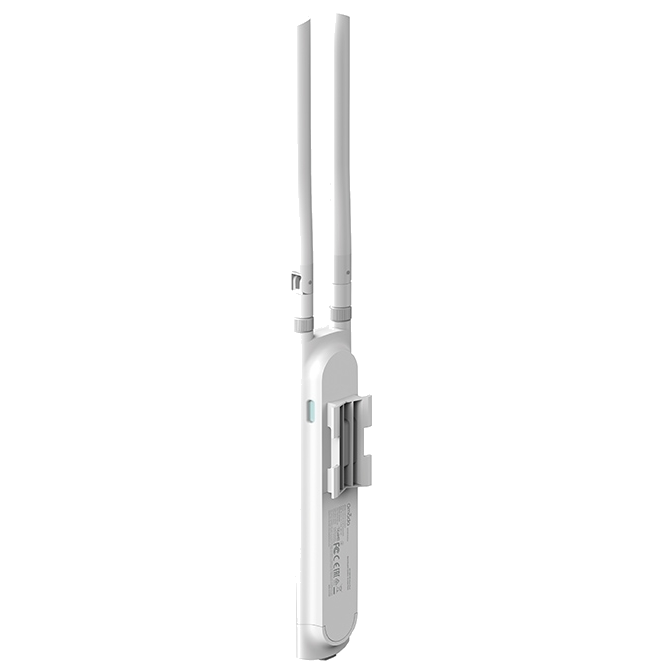

EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Click here to see Omada App compatible devices >

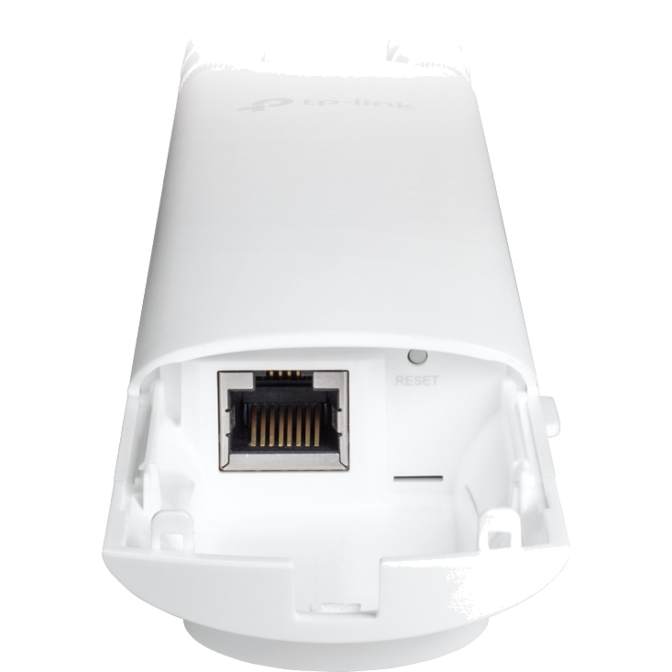

| Interface | Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE) |
|---|---|
| Button | Reset |
| Power Supply | 802.3af/A PoE 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
| Power Consumption | 10.5W |
| Dimensions ( W x D x H ) | 215.7*45*37.7mm (without antenna & mounting kit) 403.8*90.7*55.2mm (with antenna & mounting kit) |
| Antenna | 2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall Mounting (Kits included) |
| Hardware Watch Dog | Yes |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs(Up to 16 SSIDs, 8 for each band) Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control (Adjust Transmit Power on dBm) QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP) FCC:<23dBm(2.4GHz),<22dBm(5GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | CE?FCC?RoHS |

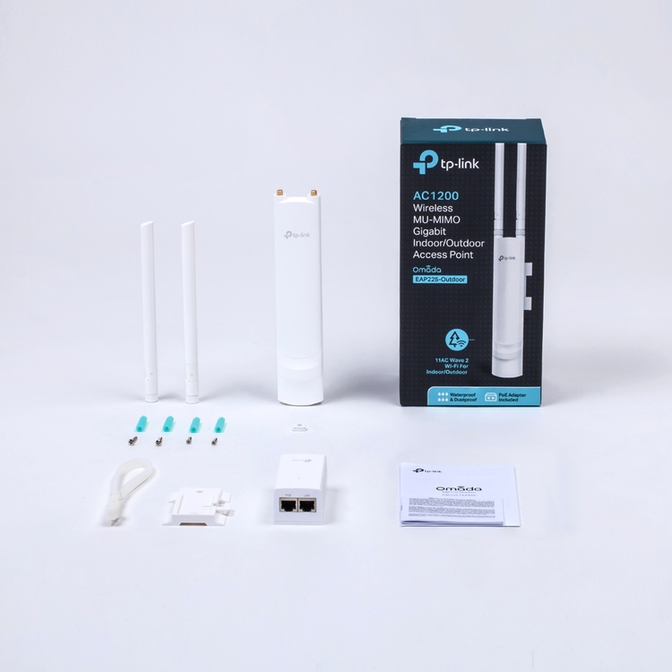

| Package Contents | Access Point EAP225-Outdoor Passive PoE Adapter Power Cord Mounting Kits Installation Guide Waterproof Ruber Insert Waterproof Antenna |
| Environment | Operating Temperature: -40?~70? (-40?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 5%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
