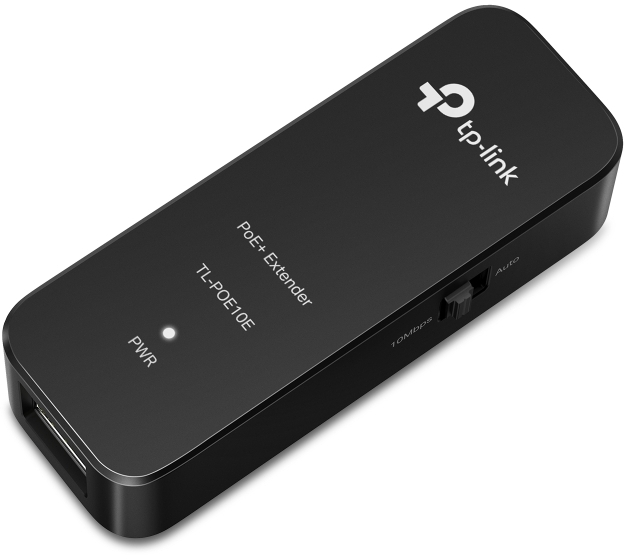

TP-Link POE10E Omada Fast Ethernet PoE+ Extender
Web ID: 40203
Extends a PoE/PoE+ network connection an additional 100m 250m (10 Mbps Mode) from the PoE power source equipment
Compliance with 802.3af/at devices and supports the maximum output power of 20W
2 * 10/100Mbps Ports ensure faster transmission
Plug-and-Play, requires no configuration
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: POE10E
GTIN: 4895252501896
Manufacturer Website
What This Product Does
The Fast Ethernet PoE+ Extender POE10E (TL-POE10E) extends a PoE/PoE+ network connection an additional 100m – 250m (10 Mbps Mode) from the PoE power source equipment. POE10E (TL-POE10E) expands network deployment with 802.3af/at PoE compliant devices, making it ideal for remote cabling requirements in surveillance scenarios. Distance will no longer be a barrier to network deployment.
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u |
| GENERAL | |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
| Material | Plastics Casing |
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • Fast Ethernet PoE+ Extender TL-POE10E • Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| Network Media | UTP/STP of Cat.5E or above (based on the standards that the connected devices comply with) |
| Ports | • 1 10 Mbps /100 Mbps RJ45 PoE IN Port • 1 10 Mbps /100 Mbps RJ45 PoE OUT Port |
| Basic Function | • 1 10/100Mbps RJ45 PoE IN port • 1 10/100Mbps RJ45 PoE Out port, supplies up to 20 W • Up to 250 m data and power transmitting range under 10Mbps mode • Plug-and-Play |
| Dimensions ( W x D x H ) | 2.33*0.85*0.52 in (71*26*16 mm) |
| POE ADAPTER FEATURES | |
|---|---|
| Output | Complaince with 802.3af/at devies |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • POE10E • Installation Guide |
| Environment | • Operating Temperature: 0°C to 45°C (32°F to 113°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
