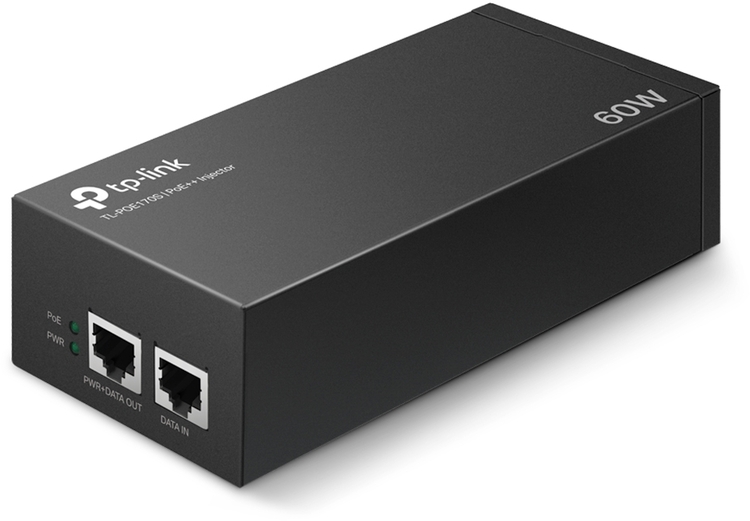

TP-Link POE170S PoE++ Injector
Web ID: 40202
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at/bt standards, supplies up to 60 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation requires no configuration
Integrated power supply
Durable metal casing
CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: POE170S
GTIN: 4897098683897
Manufacturer Website
What This Product Does
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
NETWORK | |
---|---|
Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
GENERAL | |
---|---|
Certification | FCC, CE, RoHS |
Environment | Operating Temperature: 0°C to 45°C (32°F to 113°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
Material | Metal Casing |
PACKAGE CONTENTS | |
---|---|
Package Contents | PoE++ Injector TL-POE170S Installation Guide Power Cord RJ45 Cable |
HARDWARE FEATURES | |
---|---|
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
Power Consumption | Input: 100-240 V, 50/60 Hz, 1.6A Output: Auto-determine the necessary power requirements (max. 60 W) |
Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at/bt PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
Dimensions ( W x D x H ) | 6.1*2.8*1.7 in (155*70*42 mm) |
