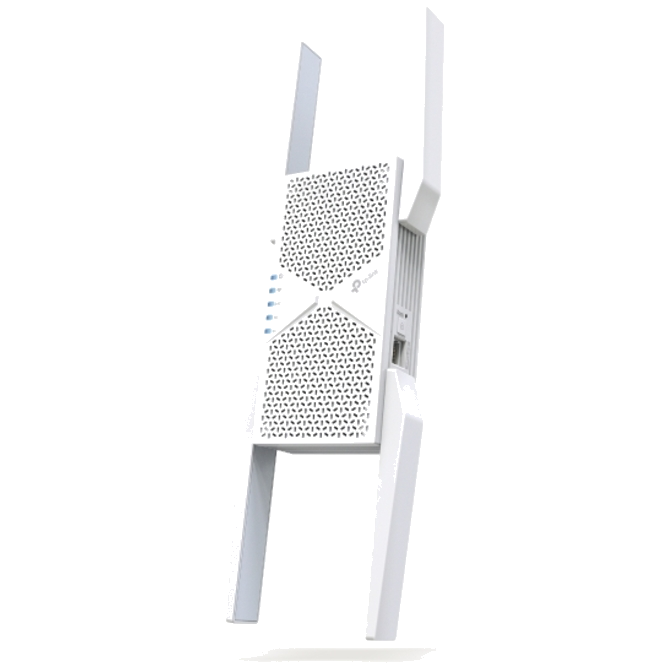

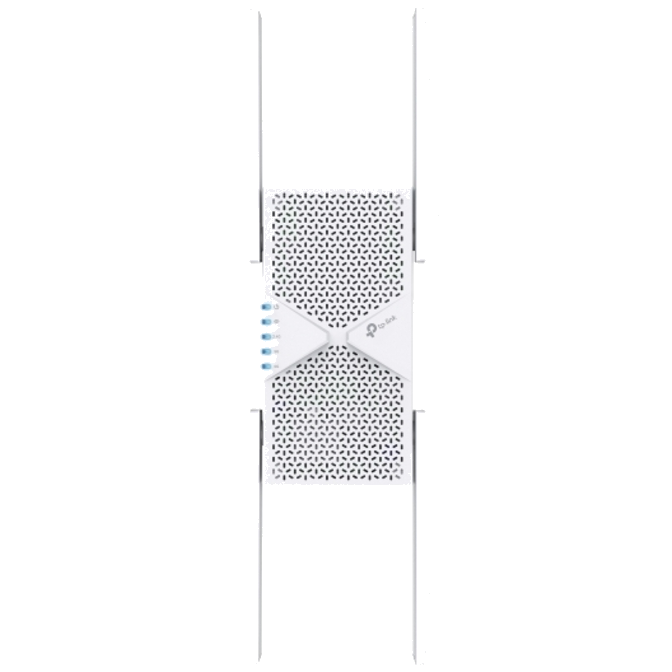

TP-Link RE655BE BE9300 Tri-Band Wi-Fi 7 Range Extender
Web ID: 43382
- Next-Gen Wi-Fi 7: Utilize the 6 GHz band, 320 MHz channels, 4K-QAM, MLO and Multi-RU across 6 streams for optimized signal distribution throughout your entire home.
- Unrivaled 9.3 Gbps Wi-Fi Speeds: Tri-band Wi-Fi with dedicated 6 GHz (5764 Mbps), 5 GHz (2882 Mbps), and 2.4 GHz (688 Mbps) bands delivers ultimate speed.
- 6 GHz Band: The newest 6 GHz band offers more channels and a wider spectrum, minimizing interference and congestion from neighboring networks and older devices.
- Multi-Link Operation (MLO): Experience significant gains in data transfer speeds, response times, and network stability for future-proof connectivity.
- 2.5G Multi-Gigabit Ethernet Port: Smoother streaming, faster downloads, and lower latency for all your connected devices.
- Smart Adaptive Roaming: Walk from room to room while automatically connecting to the most optimal node.
- Works with EasyMesh: EasyMesh compatibility offers flexible expansion and unbeatable whole-home coverage by simply connecting the RE655BE to an EasyMesh compatible router
- Easy Setup: Plug in and then easily set up via a press of the WPS button or via the Tether App.
- Great Compatibility: Works with all Wi-Fi generations and devices and all internet providers.
Manufacturer Warranty: 3 Year
Manufacturer PN: RE655BE
Manufacturer Website
$379
| HARDWARE FEATURES | |
|---|---|
| Ports | 1× 2.5 Gbps LAN Port |
| Button | • WPS Button • Reset Button |
| Input Power | 100-240V~50/60Hz 0.5A |
| Power Consumption | 23.5W |
| Dimensions ( W x D x H ) | 4.2 ×1.5 × 6.3 in. (107.2 × 39 × 161 mm) |
| Antenna | 4 External Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | Wi-Fi 7 IEEE 802.11be/ax 6 GHz IEEE 802.11be/ax/ac/n/a 5 GHz IEEE 802.11be/ax/n/b/g 2.4 GHz |
| Frequency | • 6 GHz • 5 GHz • 2.4 GHz |
| Signal Rate | • 5764 Mbps at 6 GHz • 2880 Mbps at 5 GHz • 688 Mbps at 2.4 GHz |
| Working Modes | Range Extender/Access Point |
| Reception Sensitivity | 6GHz: 11be HE20 MCS0:-95dBm, 11be HE20 MCS13:-60dBm 11be HE40 MCS0:-92dBm, 11be HE40 MCS13:-57dBm 11be HE80 MCS0:-88dBm, 11be HE80 MCS13:-53dBm 11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-50dBm 11be HE320 MCS0:-81dBm, 11be HE160 MCS13:-46dBm 5GHz: 11be HE20 MCS0:-93dBm, 11be HE20 MCS13:-58dBm 11be HE40 MCS0:-89dBm, 11be HE40 MCS13:-54dBm 11be HE80 MCS0:-87dBm, 11be HE80 MCS13:-51dBm 11be HE160 MCS0:-85dBm, 11be HE160 MCS13:-49dBm 2.4GHz: 11be HE20 MCS0:-97dBm, 11be HE20 MCS11:-64dBm 11be HE40 MCS0:-95dBm, 11be HE40 MCS11:-62dBm |
| Wireless Security | • WPA/WPA2-PSK encryptions • WPA3 |
| Advanced Functions | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs |
| Transmission Power | • 2.4GHz < 30dBm • 5GHz < 23dBm (Band1 - Band2), < 30dBm (Band 3 - Band 4) • 6GHz < 23dBm |
| Mesh Technology | EasyMesh-Compatible |
| Wireless Function | • LED Control • Access Control • Power Schedule • Wi-Fi Coverage |
| OTHERS | |
|---|---|
| Certification | CE, RCM, RoHS |
| Package Contents | • Wi-Fi 7 Range Extender RE655BE • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Environment | • Operating Temperature: 0?~40? (32? ~104?) • Storage Temperature: -40?~70? (-40? ~158?) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
