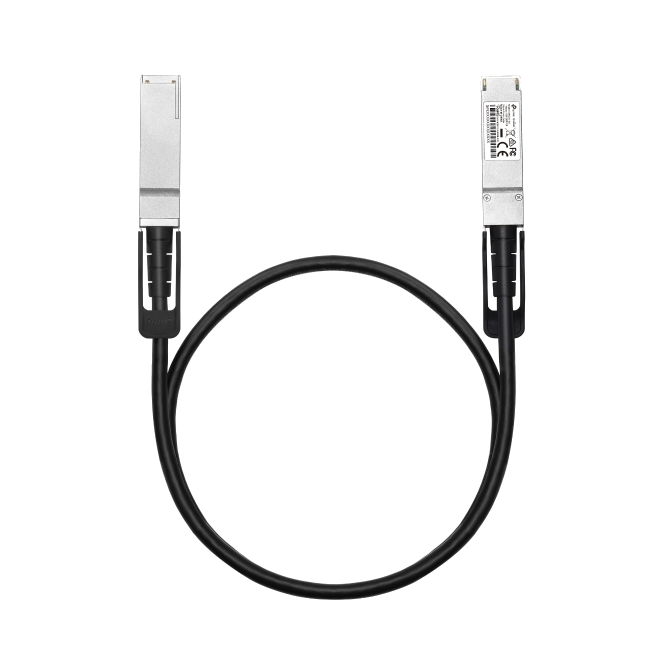

TP-Link SM9220-1M Omada 1 Meter 100G QSFP28 Direct Attach Cable
Web ID: 43380
- 100 Gbps data transmission
- QSFP28 connector on both sides
- Up to 1 m transmission distance
- Wide operating temperature
- Hot Swappable
Manufacturer Warranty: 1 Year
Manufacturer PN: SM9220-1M
Manufacturer Website
$129
What This Product Does
SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.
| GENERAL | |
|---|---|
| Product Dimensions | • Plug: 2.85*0.72*0.53 in (72.45*18.35*13.50 mm); • Overall length: 39.37 in (1,000 mm) |
| SFP28 Cable | |
|---|---|
| Environment | • Operating Temperature: 0–70 ? (32–158 ?) • Storage Temperature: -40–85 ? (-40–185 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| Supported Data Rate | 100 Gbps / 40 Gbps |
| Conductor | Silver Plated Copper |
| Wire Gauge | 30AWG |
| Minimum Bend Radius | 33 mm |
| Cable Length | 1 m |
