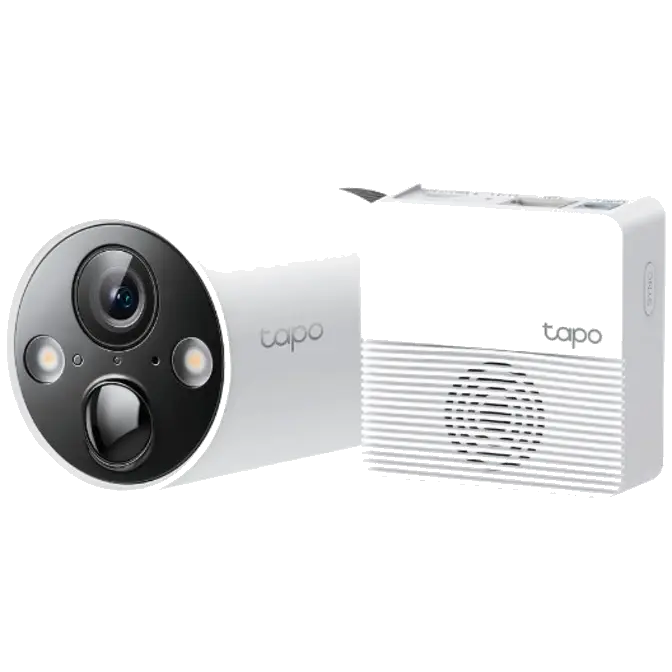

TP-Link Tapo C420S1 Smart Wire-Free Network Camera System

CAMERA

Image Sensor:

1/3“

Lens:

F/NO: 1.61±10%; Focal Length: 3.18mm±5%

Night Vision:

850 nm IR LED up to 49 ft/15m

Lighting:

2× Built-in Spotlights

Interface & Button :

1× SYNC/RESET Button

Hub Compatibility:

Compatible with Tapo H200 (Included)

Viewing Angle:

113°

Resolution:

2K QHD (2560 × 1440 px)

HUB

Device Compatibility:

Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
All Supported Products>

Connection Capacity:

Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells

Interface & Button:

1× Ethernet Port
1× RESET Button
1× SYNC Button
1× MicroSD Card Slot (Up to 512 GB)

VIDEO & AUDIO

Maximum Resolution:

2K QHD 4MP (2560 × 1440 px)

Frame Rate:

15 fps/20 fps

Digital Zoom:

12×

Video Compression:

H.264

Live View:

Yes

Image Enhancement:

3DNR
WDR

Audio Input & Output:

Built-in Microphone and Speaker

Audio Communication:

Two-Way Audio with Noise Cancellation

Siren Volume:

Camera:
92 dB (Level measured at 4-inch/10-cm distance)
Hub:
100 dB (Level measured at 4-inch/10-cm distance)

STORAGE

Local Storage:

MicroSD Card Slot on Camera (Up to 512 GB)
General Information about using MicroSD Cards >

Cloud Storage:

Tapo Care Cloud Storage Services (Subscription required)

DETECTION and NOTIFICATIONS

Sensor:

Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light Sensors

AI Detection:

Motion Detection
Person Detection
Pet Detection
Vehicle Detection

Activity Zones:

Yes

Output Notification :

System Notification
System Notification with Snapshot (Tapo Care Services)

AUDIO

Audio Communication:

2-way audio

Audio Input & Output:

Built-in microphone and speaker

NETWORK

Network Connectivity:

Connect via Wi-Fi or Ethernet

Wireless Connectivity:

IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)

Protocol:

TCP/IP, ICMP, DNS, HTTPS, TCP, UDP

Ethernet Port:

1× 10/100 Mbps RJ45 Port on Hub

Wireless Security:

WPA/WPA2-PSK

Wi-Fi Protocol:

IEEE 802.11b/g/n, 2.4 GHz

Frequency:

2.4 GHz

SECURITY

128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK

POWER

Power Source:

Hub:
9V DC Power Adapter

Camera:
6700 mAh Removable Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 (Sold separately)

Input Voltage:

Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz
Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A

Output Voltage:

Camera Battery Pack Adapter Output: 5.0 V, 1.0 A
Hub Adapter Output: 9.0 V, 0.85 A

GENERAL

Smart Integration:

Google Assistant, Amazon Alexa

Weather Resistance:

Camera: IP65

System Requirements :

Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher

Mounting Options:

Tabletop
Ceiling-Mounted
Wall-Mounted

Operating Temperature:

Camera: -20?~45?
Hub: 0?~40?

Storage Temperature:

-20?~60?

Operating Humidity:

10%~90% RH, Non-condensing

Storage Humidity:

5%~90% RH, Non-condensing

Charging Temperature:

0-55?

Dimensions:

Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)

Package Contents:

Tapo C420 Camera
Tapo A100 Battery
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Anchors
Mounting Screws
Mounting Template
Camera Bracket
Quick Start Guide
RJ45 Ethernet Cable

Certifications:

CE, FCC, RoHS, RCM

ACTIVITY NOTIFICATIONS

Input Trigger:

Motion detection, Person
detection, Pet detection, Vehicle detection.

Output Notification:

Notification,Snapshot(Tapo care),Clips(Tapo
care).

ENVIRONMENT

Operating Temperature:

-20?~45?(-4°F ~113 °F )

Storage Temperature:

-20?~60? (-4°F~140°F)

Operating Humidity:

10%~90%RH, Non-condensing

Storage Humidity:

5%~90%RH, Non-condensing

PACKAGE CONTENTS

Tapo C420 Cameras (Battery Included)
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
RJ45 Ethernet Cable

HARDWARE

Button:

Camera Button: Reset/SYNC Button
Hub Button: Reset Button; SYNC Button

Indicator LED:

Camera Indicator LED: System LED
Hub Indicator LED: System LED

Adapter Input:

Camera Adapter Input: 100-240V, 50/60Hz
Hub Adapter Input: 100-240V, 50/60Hz, 0.3A

Adapter Output:

Camera Adapter Output: 5.0V, 1.0A
Hub Adapter Output: 9.0V, 0.85A

Dimensions (W x D x H):

Camera Dimensions: 4.35 x 2.52 x 2.52in.
(110.6*64.2*64.2mm)
Hub Dimensions (L x W x H): 2.8 x 2.8 x 1.2 in.
(71.45*71.45*31.25mm)

VIDEO/IMAGE

Video Compression:

H.264

Frame Rate & Resolutions:

15/20 fps

Video Streaming:

2K QHD
