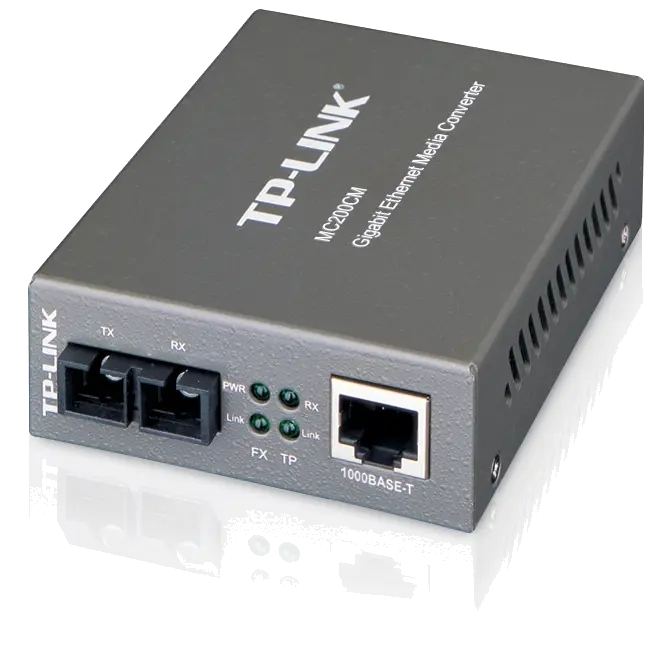

TP-Link TL-MC200CM Gigabit Multi-Mode Media Converter
Web ID: 14280
Works at 1000Mbps in Full-Duplex mode for both TX port and FX port,
Supports auto MDI/MDIX for TX port,
Provides switch configuration of Force /Auto transfer mode for FX port,
Extends fiber distance up to 0.5km,
Easy-to-view LED indicators provide status to monitor network activity easily,
External power supply CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: MC200CM
GTIN: 845973030438
Manufacturer Website
What This Product Does
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Basic Function | Full Duplex Flow Control (IEEE 802.3x) Extends fiber distance up to 0.5km using 50/125um fiber Extends fiber distance up to 0.22km using 62.5/125um fiber |
| Ports | 1 1000M SC/UPC port 1 1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-FX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, LINK, RX |
| Dimensions (W*D*H) | 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 5.5W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
