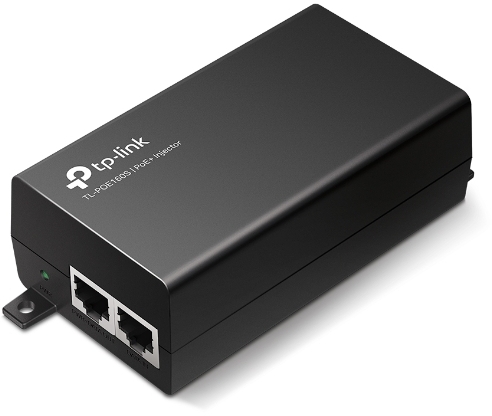

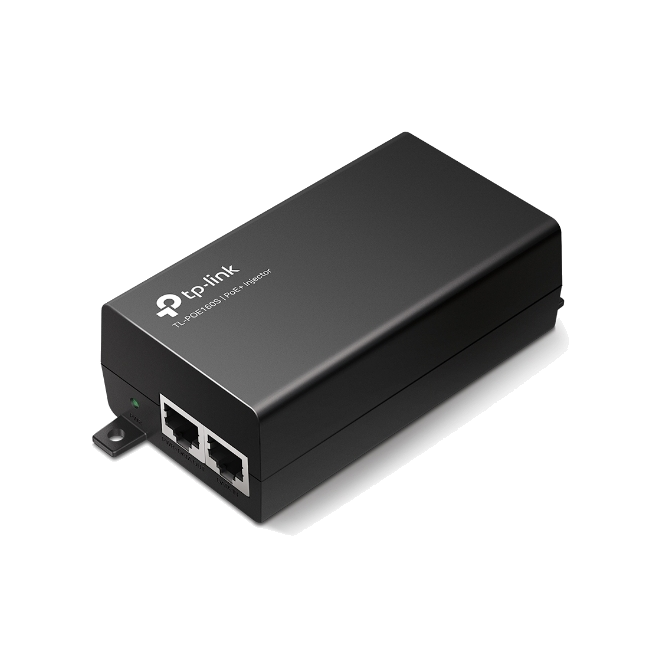

TP-Link TL-POE160S Power over Ethernet Injector
Web ID: 30866
2 Gigabit ports ensure faster transmission
Complies with IEEE802.3af/at standards, supplies up to 30 W
Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
Automatically determines and supplies the exact power to meet the device's need
Wall-mounting and desktop design accommodates most installation scenarios
Plug & Play installation requires no configuration
Integrated power supply CASH PRICE
Manufacturer Warranty: 3 Year
Manufacturer PN: TL-POE160S
GTIN: 6935364073084
Manufacturer Website
What This Product Does
The PoE+ Injector TL-POE160S fully complies with IEEE 802.3af/at standards and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at |
| GENERAL | |
|---|---|
| Certification | FCC, CE, RoHS |
| Environment | Operating Temperature: 0°C to 40°C (32°F to 104°F) Storage Temperature: -40°C to 70°C (-40°F to 158°F) Operating Humidity: 10% to 90%RH non-condensing Storage Humidity: 5% to 90%RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 100BASE-TX: UTP category 5, 5e cable (maximum 100 m) EIA/TIA-568 100Ω STP (maximum 100 m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m) |
| Ports | 1 10/100/1000Mbps RJ45 data-in port 1 10/100/1000Mbps RJ45 power+data-out port 1 AC socket |
| Power Consumption | Input: 100-240 V, 50/60 Hz Output: Auto-determine the necessary power requirements (max. 30 W) |
| Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af/at PD Auto-determine the necessary power requirements Wall-mounting and desktop installation supported Plug-and-Play |
| LED Indicator | ON: Supplying power normally OFF: No power supply |
| Dimensions ( W x D x H ) | 4.9*2.3*1.4 in (125*59.4*36.8 mm) |
