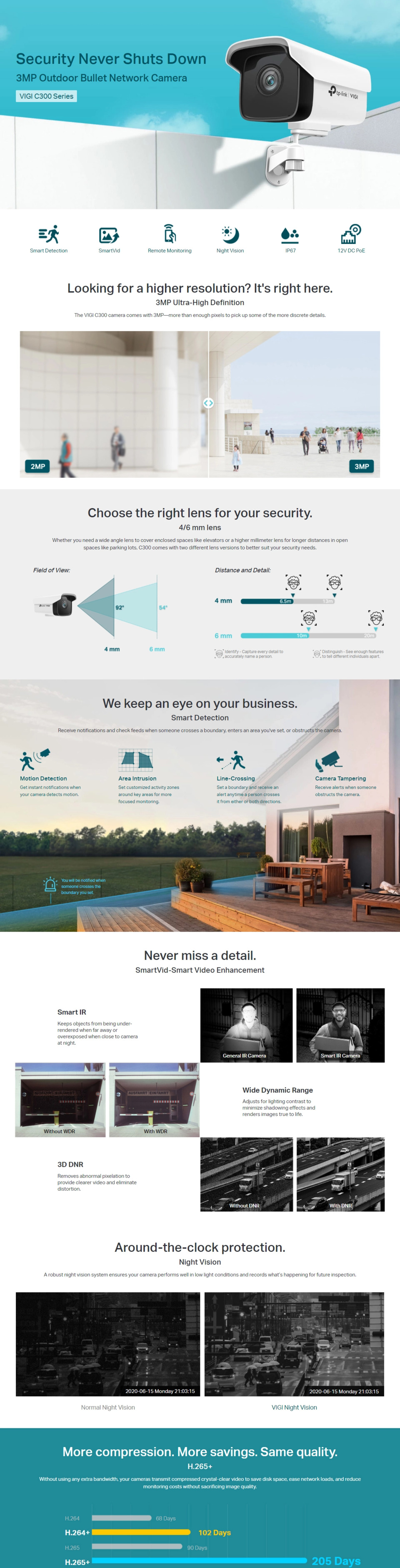

TP-LINK VIGI 3MP Outdoor Bullet Network Camera VIGI C300HP-4
Web ID: 35868
3MP Ultra-High Definition: The VIGI C300 camera comes with 3MPmore than enough pixels to pick up some of the more discrete details.
4mm Lens: Whether you need a wide-angle lens to cover enclosed spaces or a higher millimetre lens for longer distances in open spaces, C300 comes with two different lens versions to better suit your security needs.
Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: C300HP-4
Manufacturer Website
$89
| CAMERA | |
|---|---|
| Image Sensor | 1/2.8” Progressive Scan CMOS |
| Lens | 4 mm / 6 mm |
| Aperture | 4 mm: F2.4 6 mm: F2.0 |
| Lens Mount | M12 |
| Viewing Angle | (4 mm) horizontal FOV: 82.5°, vertical FOV: 44.9°, diagonal FOV: 99.3° (6 mm) horizontal FOV: 51.9°, vertical FOV: 28.7°, diagonal FOV: 60° |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Minimum Illumination | Color: 0.1 Lux@F2.0; 0 Lux with IR |
| Weatherproof Rating | IP67 |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Bracket Mounting Accessories |
| Operating Temperature | -30–60 °C |
| Certifications | CE, FCC, RCM, BSMI, VCCI, IP67, RoHS |
| Dimensions( H X W X D ) | 164.9 × 87.4 × 83.4 mm |
| Material | Plastic |
| Weight | 283.5g |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC: Max 3W PoE: Max 4W |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main stream: H.265/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240 |
| Video Streaming | Main Stream Sub-Stream |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | 64 Kbps to 6 Mbps |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
| Basic Event | Motion Detection, Camera Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Alarm | - |
| Button | - |
| Video Output | - |
