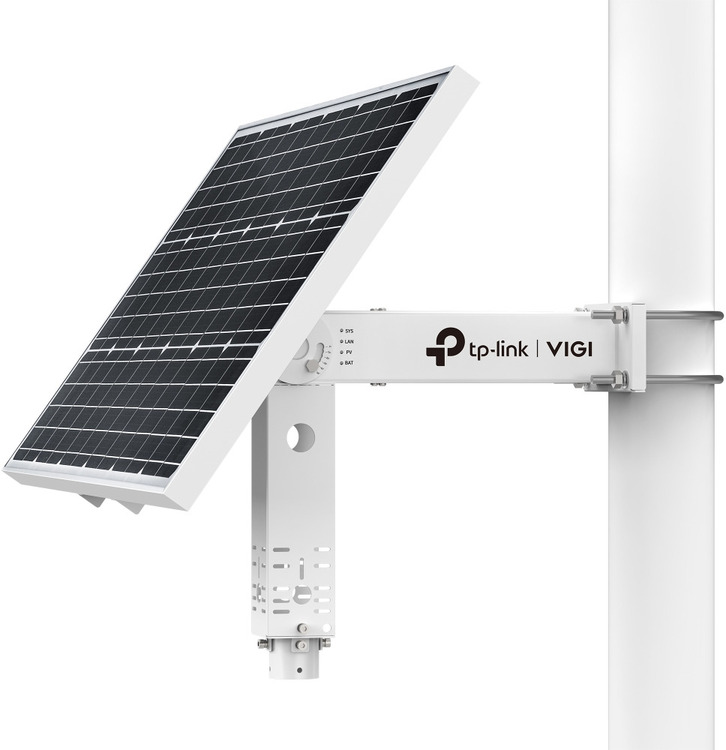

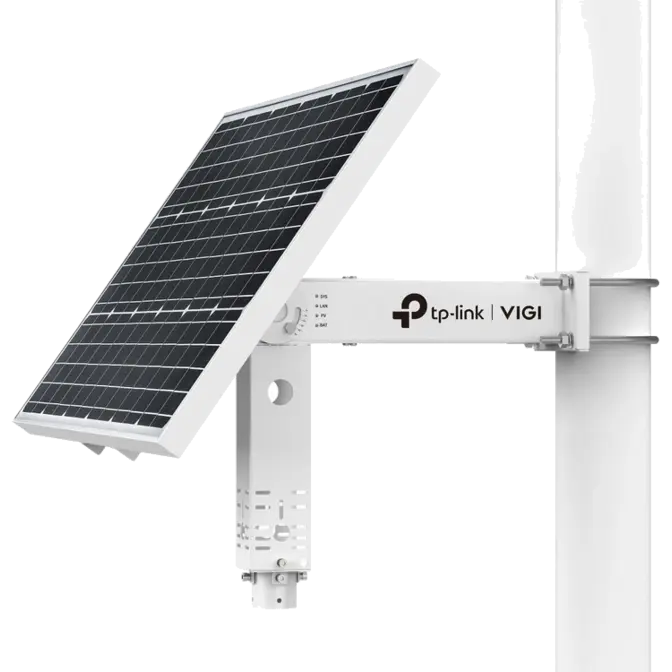

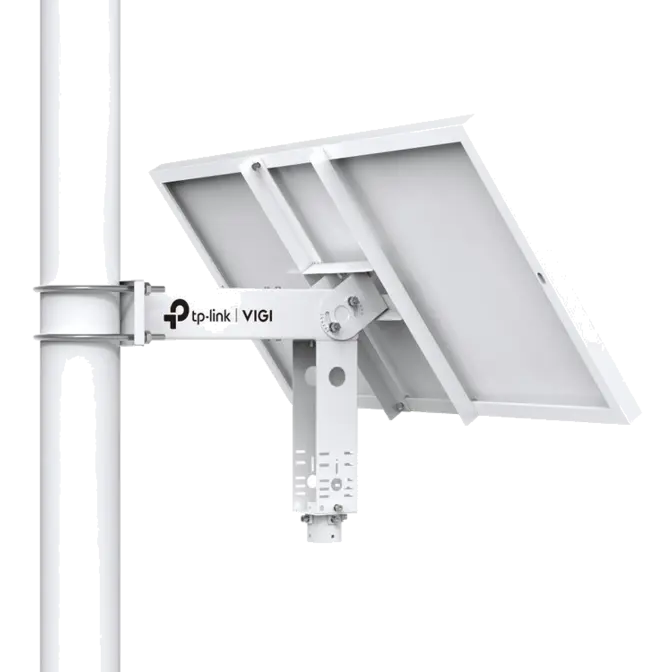

TP-Link VIGI SP9030 Intelligent Solar Power Supply System
Web ID: 43072
- 90W Photovoltaic Panel and 30Ah/10.8V Lithium Battery
- Modular Design
- 5/15/25/35/45/55 Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management
- Simple Installation
Manufacturer Warranty: 1 Year
Manufacturer PN: VIGI SP9030
Manufacturer Website
$999
| Solar Panel (Photovoltaic Panel) | |
|---|---|
| Power | 90 W |
| Voltage | 18 V |
| Dimensions (L x W x H) | 998×516×30 mm (39.3×20.3×1.2 in) |
| Battery | |
|---|---|
| Type | Lithium |
| Intelligent Auxiliary Heat | Yes |
| Battery Capacity | 31.2 Ah |
| Voltage | 10.8 V |
| Max. Output Voltage | 12.6 V |
| Life | More than 500 cycles |
| Dimension | 250×74×74 mm (9.8×2.9×2.9 in) |
| Charging Condition | • 0°C~45°C • -30°C~45°C (With intelligent auxiliary heating) |
| Discharging Condition | • -20°C~60°C • -30°C~60°C (With intelligent auxiliary heating) |
| Angle Adjustment (Manual) | |
|---|---|
| Range | 5°/15°/25°/35°/45°/55° |
| HARDWARE | |
|---|---|
| Interface | • 1× 10/100 Mbps RJ45 • 1× Photovoltaic Panel Connector • 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A) |
| Indicator LED | • Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator) • Color: Blue |
| SOFTWARE FEATURES | |
|---|---|
| Load Control | Yes |
| High and Low Temperature Protection | Yes |
| Overdischarge Protection | Yes |
| Power Consumption Statistics | Yes |
| Displays Real-time Load Status | Yes |
| Battery Level Display | Yes |
| Time Zone Selection | Yes |
| Region Selection | Yes |
| Schedule Saving | Yes |
| Firmware Remote Update | Yes |
| Remote Reboot | Yes |
| Local LAN Management | Yes |
| Smart Charging Control | -30°C~5°C |
| Account Management | Yes |
| Web Management | Yes |
| Remote Reset | Yes |
| Remote Message Push | Yes |
| OTHERS | |
|---|---|
| Certification | • CB, PSE (Battery) • CE, FCC, VCCI, IC, IP66 |
| Package Contents | • VIGI SP9030 • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
| Box Dimensions (W X D X H) | 1110×615×225 mm (43.7×24.2×8.9 in) |
| Weight | • Product weight: 15 kg • Package weight: 17.5 kg |
| Environment | • Operating Temperature: -30°C-60°C (With intelligent auxiliary heating) • Operating Humidity: 10%~90%RH, Non-condensing |
