Ubiquiti AF-5XHD airFiber 5XHD Long Range 5GHz Carrier
Web ID: 43135
True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISPs.
- 5 GHz, 100+ km link range
- 1000+ Mbps throughput
- Dedicated spectral analysis radio
- Integrated GPS sync
- 2+ Mpps processing
Manufacturer Warranty: 2 Year
Manufacturer PN: AF-5XHD
Manufacturer Website
$789
| Mechanical | |
|---|---|

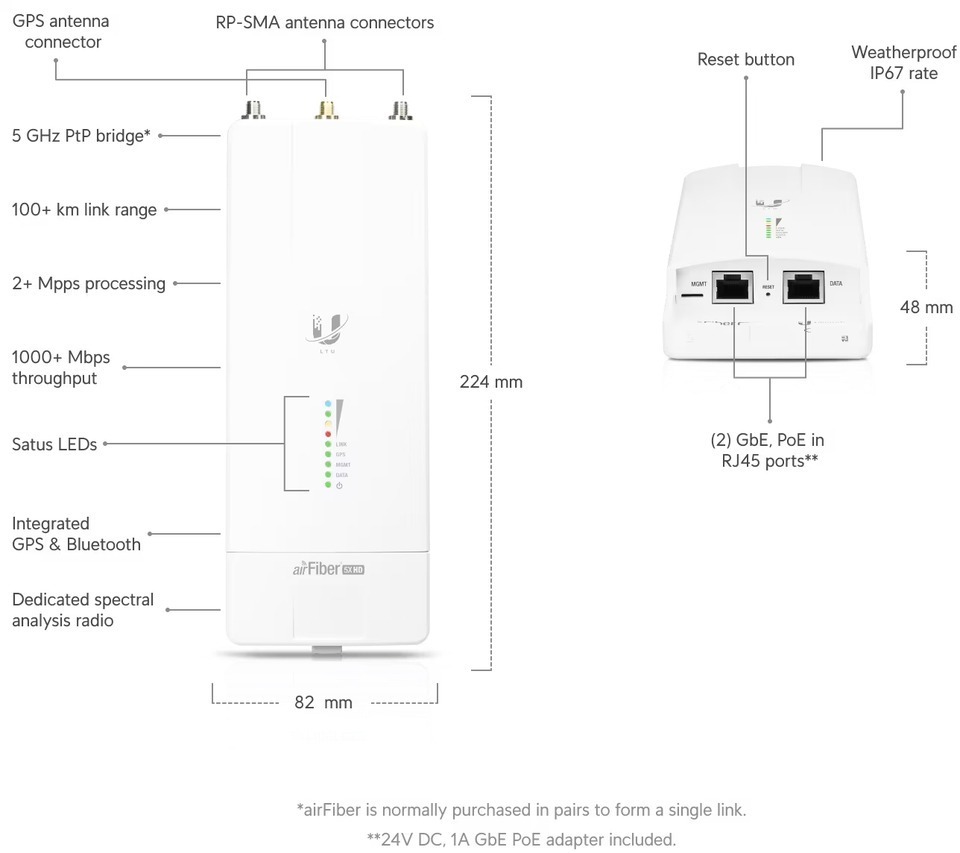

| Dimensions | 224 x 82 x 48 mm (8.8 x 3.2 x 1.9") |
| Weight | 0.4 kg (0.8 lb) |
| Mounting | airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included) |
| Weatherproofing | IP67* *After installation of IP67 upgrade kit (included). |
| Hardware | |
| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-) or (1, 2+; 3, 6-) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 12W |
| GPS antenna | External, magnetic base |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| Modes | PtP Master/Slave |
| Max. throughput | 1+ Gbps |
| Max. range* | 100+ km *Throughput and range values may vary depending on the environmental conditions. |
| Encryption | AES-256 |
| RF | |
| Max. TX power* | 29 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz selectable Programmable Uplink and Downlink duty cycles |
| Operating Frequency (MHz) | |
| Worldwide | 4800 - 6200 MHz* *Depends on regional regulations. |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
