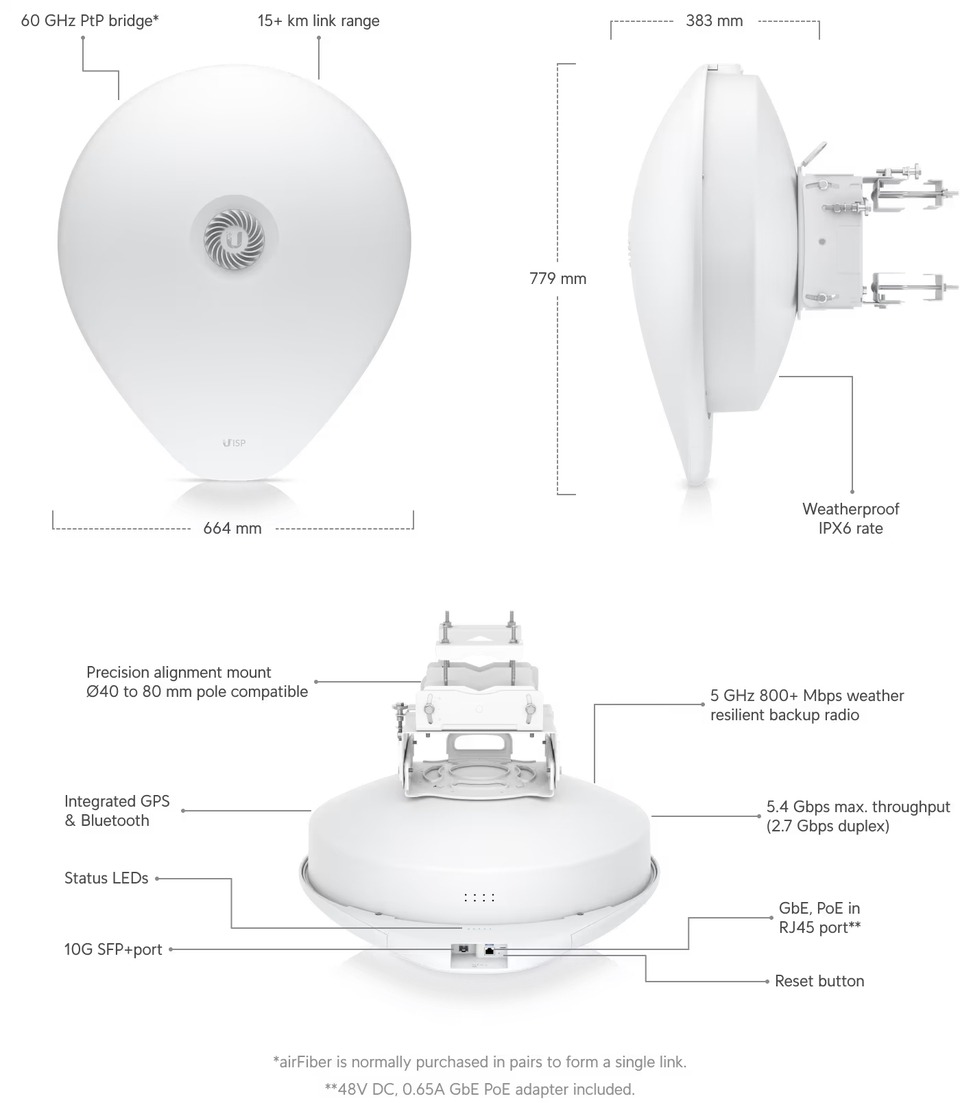

Ubiquiti AF60-XR airFiber 60 Xtreme-Range Multi-Gigabit Long Distance Bridge
Web ID: 43140
Multi-gigabit, 60 GHz bridge designed to create long-distance links and deliver 5.4 Gbps total throughput (2.7 Gbps duplex) over them.
- 15+ km link range
- 2.7 Gbps duplex
- 5 GHz 800+ Mbps weather-resilient backup radio
- (1) GbE and (1) 10G SFP+ port
- Precision alignment mount
- Integrated GPS & Bluetooth
Manufacturer Warranty: 2 Year
Manufacturer PN: AF60-XR
Manufacturer Website
$2179
| Mechanical | |
|---|---|
| Dimensions | 779 x 664 x 383 mm (30.7 x 26.1 x 15.1") |
| Weight | Without mount: 8.6 kg (19 lb) With mount: 13 kg (28.7 lb) |
| Enclosure material | UV stabilized polycarbonate, steel |
| Mount material | Galvanized steel |
| Mounting | Precision alignment kit (included) Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15") on pipe outer diameter |
| Wind loading | 422 N at 200 km/h (94.86 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | DDR3L1 GB |
| Networking interface | (1) GbE RJ45 port (1) 1/10G SFP+port |
| Max. power consumption | 24W |
| Power method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Supported voltage range | 44–54V DC 22–27V DC |
| GPS | Yes |
| RF connections | Internal |
| Button | Factory reset |
| Ambient operating temperature | -40 to 55° C (-40 to 131° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating mode | PtP only |
| Ubiquiti specific features | Integrated 60 GHz radio, discovery protocol, Wave technology |
| Services | UISP, ping watchdog, NTP client, device discovery |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge mode |
| Management application | UISP web: Version 1.4.3 and later UISP iOS™: Version 2.20 and later UISP Android™: Version 2.21.5 and later |
| System | |
| Max. throughput | 2.7 Gbps |
| Max. range | 15+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57–71 Ghz * Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120 MHz * Depends on regulatory region. |
| Management radio | 2400–2483.5 MHz |
| Modulation | 16QAM, BPSK, QPSK |
| Polarization | Vertically linear |
| Beamwidth | Azimuth: 3 dB 1.4° Elevation: 3 dB 1.4° |
| Electrical downtilt | 0° |
| Back-Up RF | |
| Operating frequency* US/CA Worldwide |
U-NII-1 5150 - 5250 MHz U-NII-2A 5250 - 5350 MHz U-NII-2C 5470 - 5725 MHz U-NII-3 5725 - 5850 MHz 5150 - 5875 MHz *Depends on regulatory region. |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (2⁄3), 64QAM (¾), 64QAM (5⁄6), 256QAM (¾), 256QAM (5⁄6) |
| Antenna gain | 26 dBi |
| Polarization | Dual-linear |
| Beamwidth | Azimuth: 3 dB 5° Elevation: 3 dB 5° |
| Cross-pol isolation | 14 dB |
| Electrical downtilt | 0° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application |
| Ethernet | Flashing blue: Ethernet activity |
| GPS | Blue: receiving at least (4) GPS satellite signals |
| Link | Blue: 5GHz link Blue: 60GHz link |
