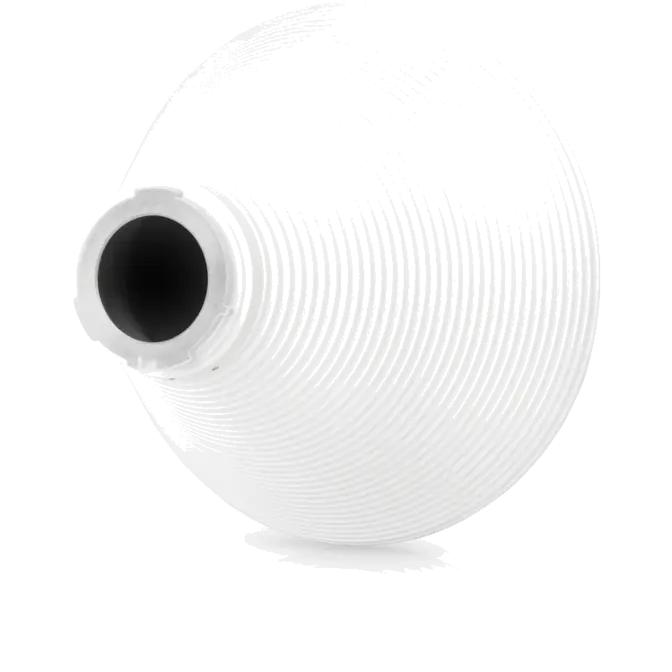

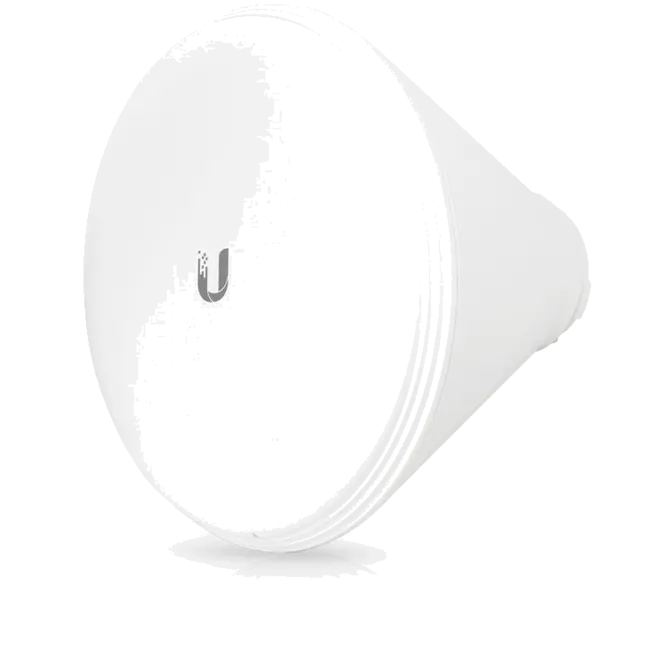

Ubiquiti HORN-5-45 airMAX PrismStation Horn 5GHz Antenna

Ubiquiti HORN-5-45 airMAX PrismStation Horn 5GHz Antenna

Web ID: 43163

5 GHz Beamwidth Horn antennas with precise radiation angles for specific beam shaping, ranging from 30 to 90.

Improved beam shaping
Enhanced co-location performance
Single button release for ease of changing antennas
Compatible with airMAX radios

ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: HORN-5-45
Manufacturer Website

$149

Add to cart

Out of Stock

Compare

Wish List

Question

Horn-5-30
Dimensions	Ø 221.4 x 184.2 mm (8.71 x 7.3")
Weight	1.1 kg (2.4 lb)
Supported Frequency Range	5.15 - 5.85 GHz
Gain	19 dBi
HPOL Beamwidth	30°
VPOL Beamwidth	30°
Elevation Beamwidth	30°
Maximum VSWR	1.7:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-Pol Isolation	17 dB

Horn-5-45
Dimensions	Ø 175 x 96 mm (6.9 x 3.78")
Weight	1.34 kg (3 lb)
Supported Frequency Range	5.15 -5.85 GHz
Gain	15.5 dBi
HPOL Beamwidth	45°
VPOL Beamwidth	45°
Elevation Beamwidth	45°
Maximum VSWR	1.7:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	56 N @ 200 km/h (12.6 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-Pol Isolation	17 dB

Horn-5-60
Dimensions	161.6 x 173.3 x 170.9 mm (6.4 x 6.82 x 6.73")
Weight	720g (1.6 lb)
Supported Frequency Range	5.15 -5.85 GHz
Gain	16 dBi
HPOL Beamwidth	60°
VPOL Beamwidth	60°
Elevation Beamwidth	30°
Maximum VSWR	2:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	50 N @ 200 km/h (11.2 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-Pol Isolation	17 dB

Horn-5-90
Dimensions	152.1 x 186.8 x 113.2 mm (5.99 x 7.35 x 4.46")
Weight	920 g (2 lb)
Supported Frequency Range	5.15 -5.85 GHz
Gain	13 dBi
HPOL Beamwidth	90°
VPOL Beamwidth	90°
Elevation Beamwidth	45°
Maximum VSWR	2:1
Wind Survivability	200 km/h (125 mph)
Wind Loading	46 N @ 200 km/h (10.3 lbf @ 125 mph)
Polarization	Dual-Linear
Cross-Pol Isolation	17 dB
