Ubiquiti Intercom Viewer
Web ID: 42123

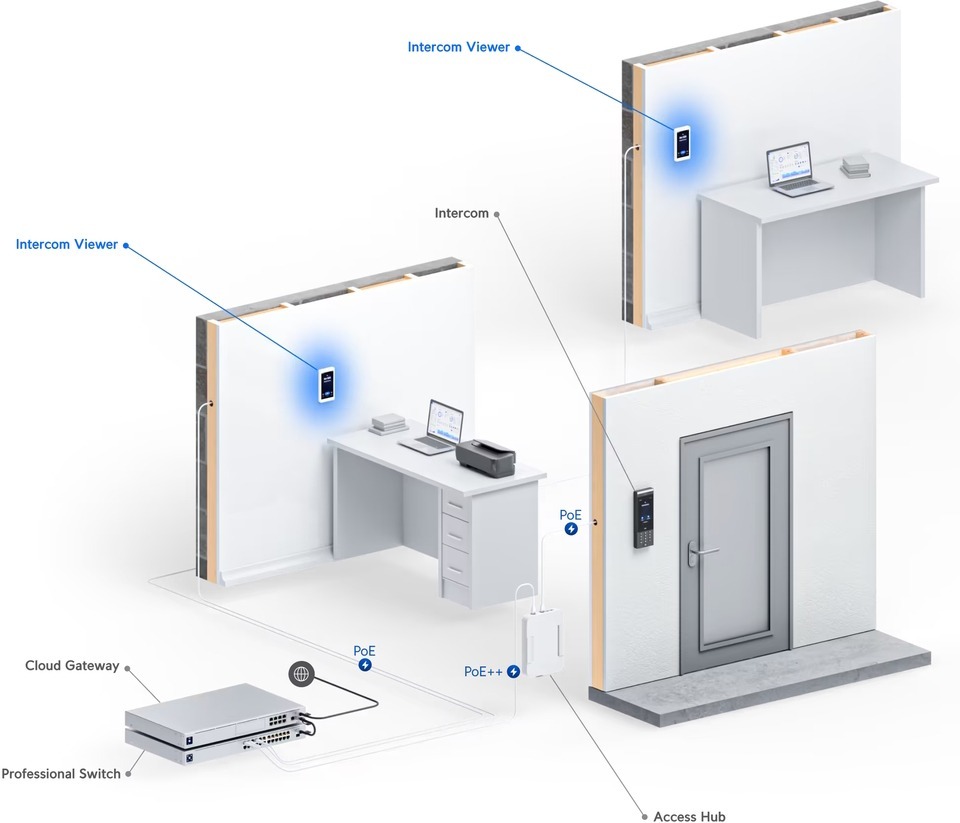

Display that pairs with the Access Intercom for visitor screening and remote access control, to mount in multiple locations throughout your building.
Two-way audio
Instant live view
5" touch display
Connect and power using a PoE switch
Manufacturer Warranty: 2 Year
Manufacturer PN: UA-Intercom-Viewer
GTIN: 810084693216
Manufacturer Website
$299SAVE $36
| Mechanical | |
|---|---|

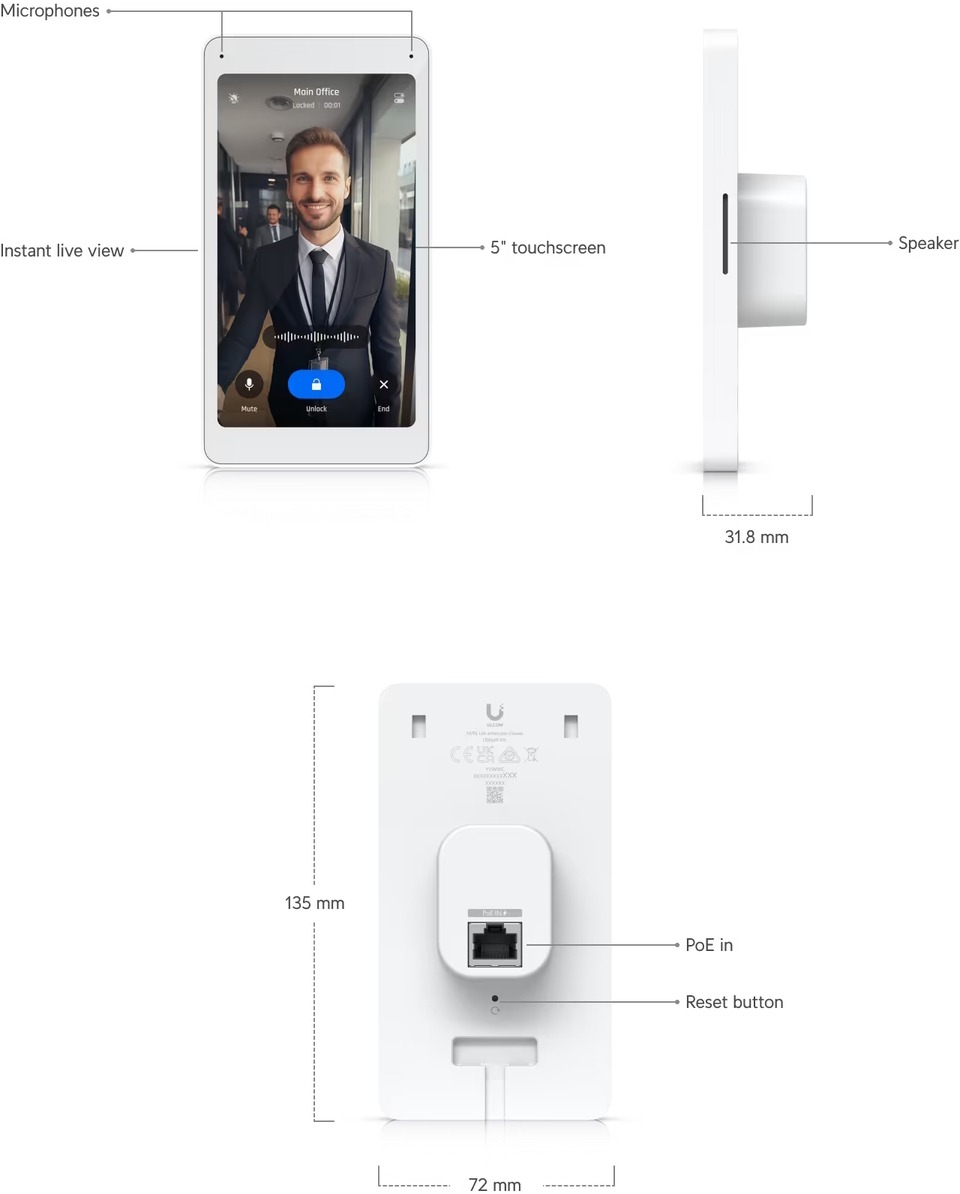

| Dimensions | 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") |
| Weight | 168 g (5.9 oz) |
| Enclosure materials | Glass, polycarbonate |
| Mount material | Aluminum alloy |

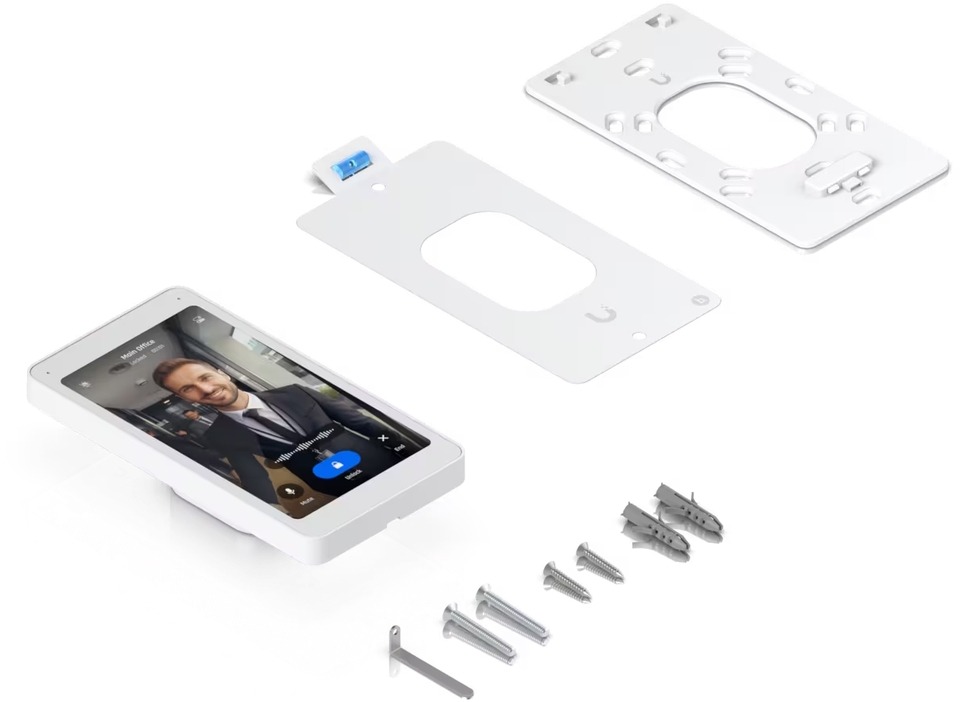

| Mounting | Wall (Included) Gang box mount (Gang box not included) |
| Hardware | |
| Networking interface | (1) 10/100 Mbps RJ45 port |
| Management interface | Ethernet |
| Power method | PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 5W |
| Display | 127 mm (5") diagonal |
| Resolution | 720 x 1280 (9:16) |
| Display luminance | 300 nits (typical) |
| Touch screen technology | Capacitive multi-touch |
| Screen orientation | Portrait |
| Microphone | Yes |
| Speaker | Yes |
| Button | Factory reset |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Operating environment | Indoor use only |
| Ambient operating humidity | 5 to 95% noncondensing |
| Software information | The software version of a product can be checked at https://unifi.ui.com |
| UL 294 level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| UL 294 statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE cabling requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-Intercom-Viewer, V01 |
| Software | |
| Management application | UniFi Access: Version 1.22.17 and later |
