Ubiquiti LBE-5AC-LR-5 airMAX LiteBeam 5AC Long-Range 5-Pack
Web ID: 43154
An affordable airMAX AC CPE designed for long-distance links.
- 5 GHz, 25+ km link range
- 450+ Mbps throughput
- Easy to assemble
Manufacturer Warranty: 2 Year
Manufacturer PN: LBE-5AC-LR-5
Manufacturer Website
$1049
| Mechanical | |
|---|---|

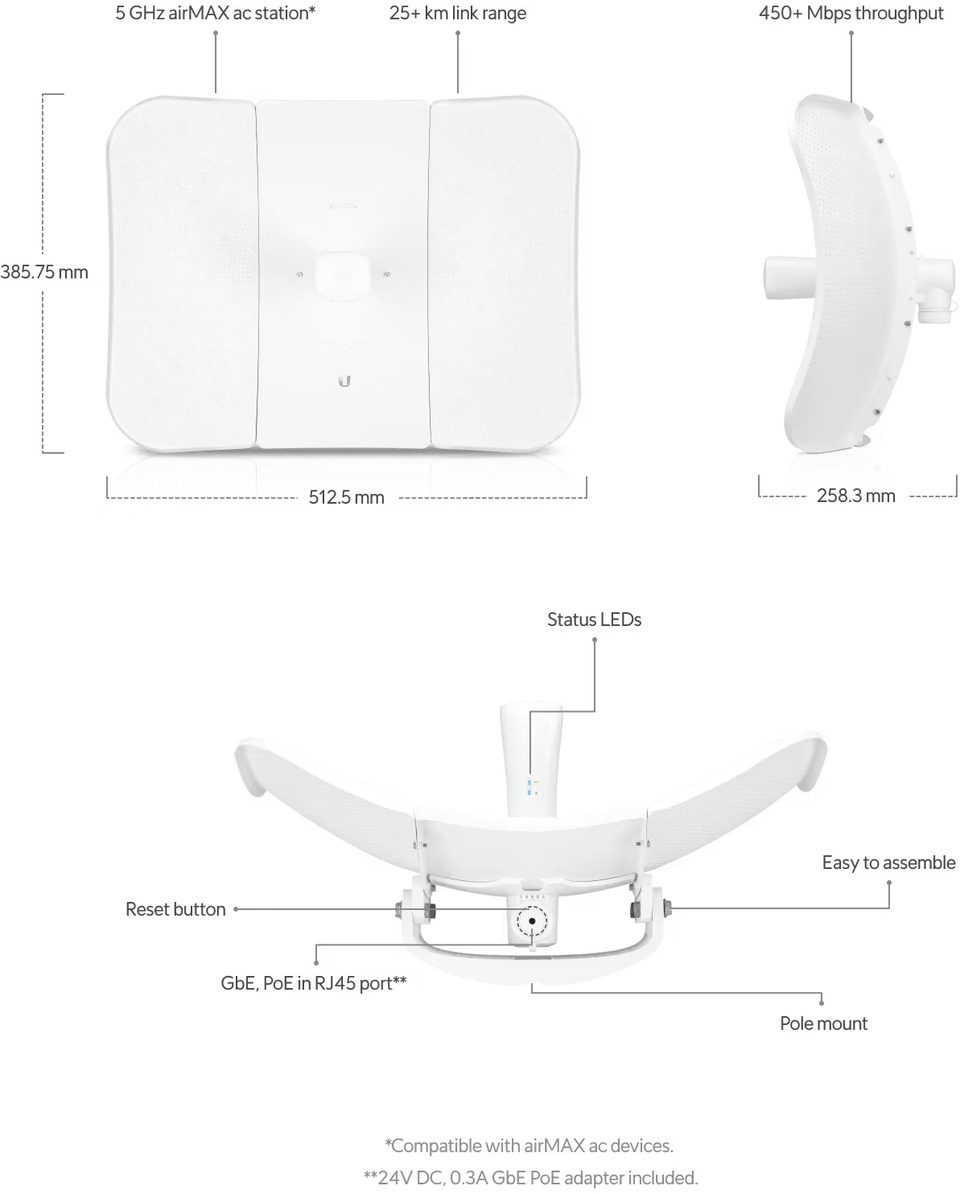

| Dimensions | 512 x 385.8 x 258.3 mm (20.2 x 15.2 x 10.2") |
| Weight | Without mount: 1.4 kg (3 lb) With mount: 1.7 kg (3.8 lb) |
| Enclosure material | Aluminum, plastic |
| Mounting | Pole mount (Kit included) |
| Wind loading | 550 N at 200 km/h (123.6 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.3A gigabit PoE adapter (Included) |
| Supported voltage range | 20-27V DC |
| Max. power consumption | 7W |
| Gain | 26 dBi |
| LEDs | Power, Ethernet |
| ESD/EMP protection | Air/contact ? 24kV |
| Channel sizes | PtP mode: 10/20/30/40/50/60/80 MHz PtMP mode: 10/20/30/40 MHz |
| Ambient operating temperature | -40 to 70? C (-40 to 158? F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150-5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
