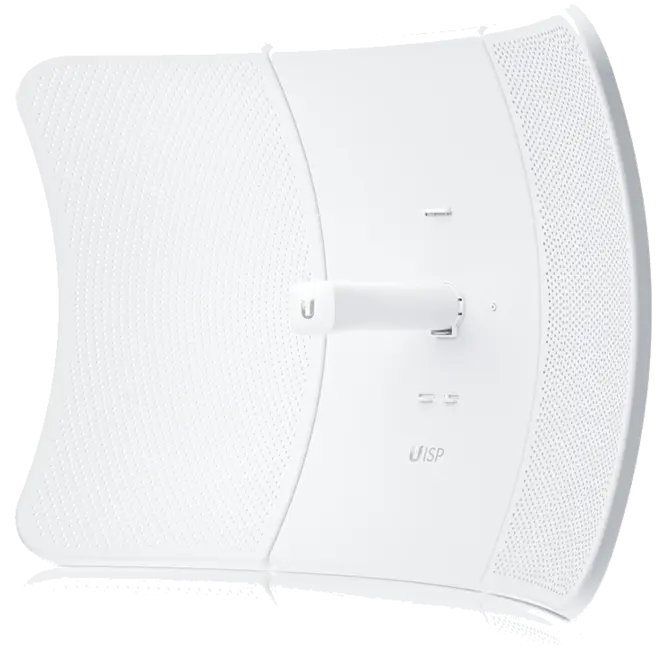

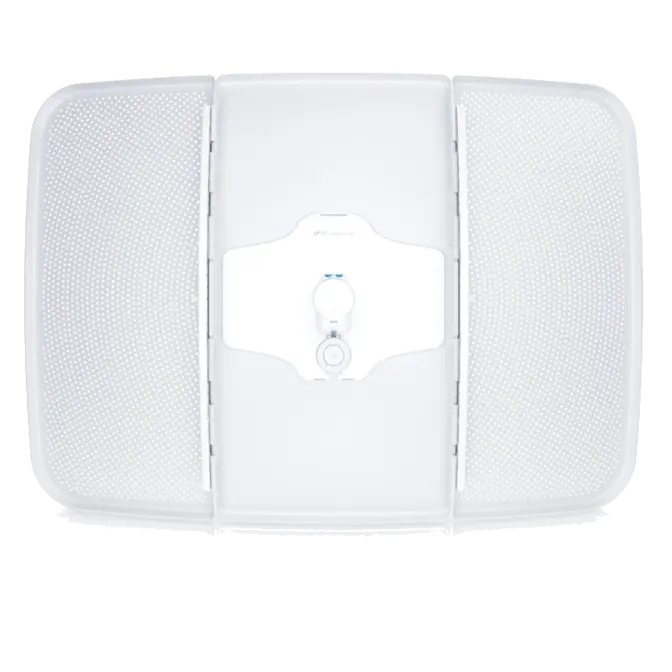

Ubiquiti LBE-5AC-XR airMAX LiteBeam 5AC Extreme-Range Wireless Station
Web ID: 43155
Ultra-lightweight, outdoor, wireless station designed to create extremely long-distance links.
- 5 GHz, 30+ km link range
- 450+ Mbps throughput
- Easy to assemble
Manufacturer Warranty: 2 Year
Manufacturer PN: LBE-5AC-XR
Manufacturer Website
$189
| Mechanical | |
|---|---|

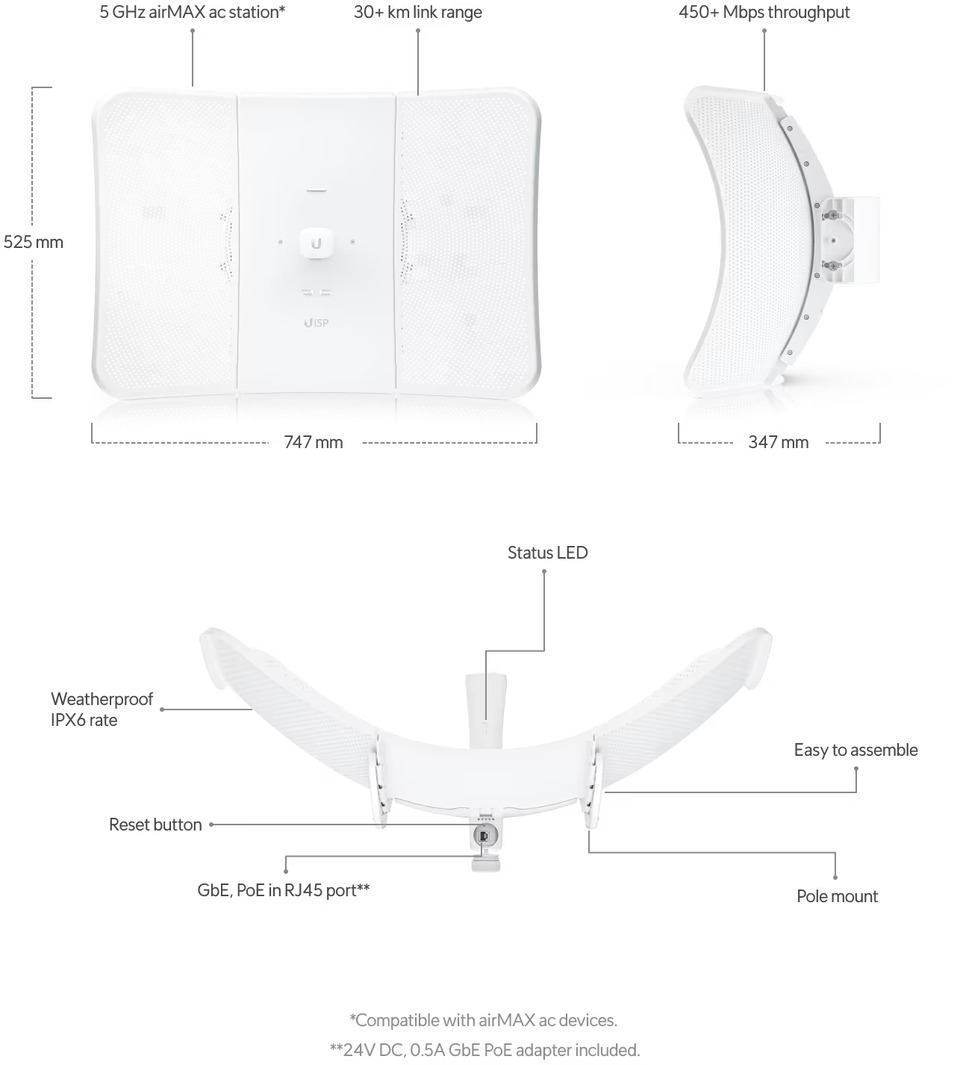

| Dimensions | 747 x 525 x 347 mm (29.4 x 20.7 x 13.7") |
| Weight | 3.2 kg (7.1 lb) |
| Enclosure material | Aluminum alloy, UV stabilized polycarbonate |
| Mount material | UV stabilized polycarbonate |

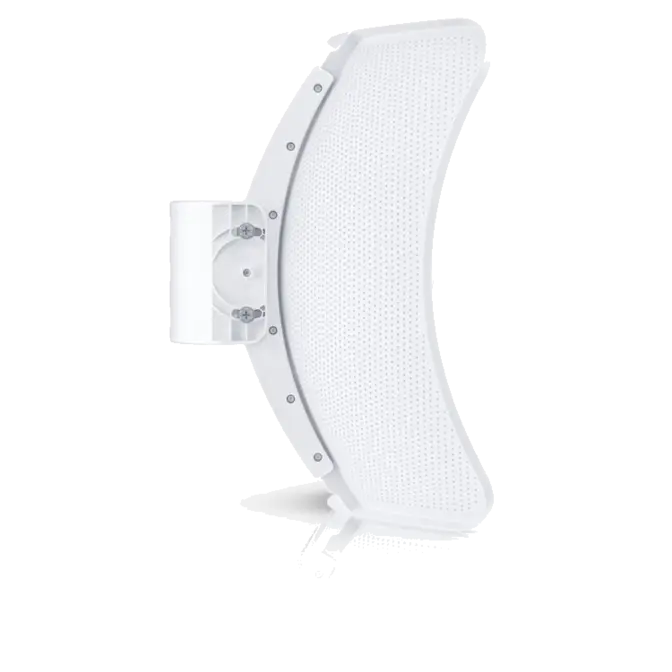

| Mounting | Integrated pole mount (included) Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36") |
| Wind loading | 1100 N at 200 km/h (247.29 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8- return) |
| Power supply | 24V DC, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 7W |
| RF connections | Internal |
| LEDs | Power/ethernet |
| Button | Factory reset |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 to 95% non-condensing |
| Certifications | FCC, IC, CE |
| System | |
| Maximum throughput | 450+ Mbps |
| Encryption | WPA2-PSK (AES) |
| Software | |
| Modes | PtMP, PtP |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, constellation |
| Management interface | Dedicated management radio for quick device setup via the UISP™ Mobile app WEB UI |
| Minimum software requirements | Modern Web browser or Android/iOS smartphone |
| RF | |
| Operating frequency* | 5.15 to 5.85 GHz * Depends on regulatory region. |
| Max. conducted TX power | 25 dBm |
| Management radio | 2400 - 2483.5 MHz |
| Channel bandwidth | 10/20/30/40/50/60/80 MHz |
| Antenna Gain | 29 dBi |
| Isolation | 20 dB |
| Beamwidth | HPOL: 3 dB: 5.5°, 6 dB: 7.5° VPOL: 3 dB: 5.5°, 6 dB: 7.5° Elevation: 3 dB: 5.5°, 6 dB: 7.5° |
| Electrical downtilt | 0° |
